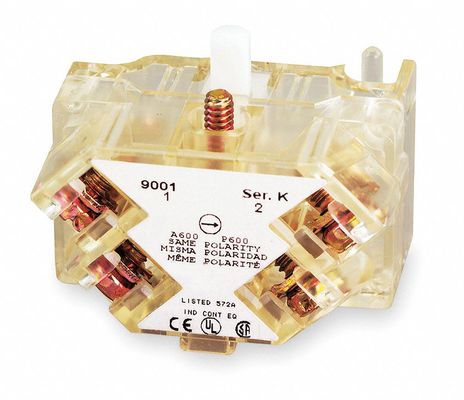

Square D 9001KA41

Name: Square D 9001KA41
Brand: Square D
SKU: CS486725
Availability: OutOfStock

SKU: CS486725MPN: 9001KA41UPC/EAN: 785901498544

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 CO

Product Details

30MM CONTACT BLOCK 1NO/1NC LOGIC REED

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Contact Operation	logic reed
Contacts Material	silver alloy contacts
Contacts Type And Composition	1 NO
Contacts Usage	hermetically sealed contacts
Device Short Name	9001K
Product Certifications	UL 508# #NEMA
Product Or Component Type	contact block with protected terminals
Protective Treatment	TC
Range Of Product	Harmony 9001K
Standards	CSA C22.2 No 14# #EN/IEC 60947-5-4# #UL 508# #JIS C 4520# #JIS C 852# #EN/IEC 60947-5-1# #EN/IEC 60947-1
