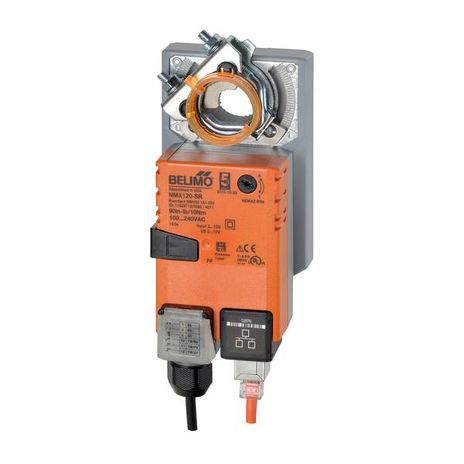

Belimo NMX120-3

Name: Belimo NMX120-3
Brand: Belimo
SKU: CS92838
Price: 220.57 USD
Availability: OutOfStock

SKU: CS92838MPN: NMX120-3

Configurable Damper Actuator, 90 in-lb [10 Nm], Non fail-safe, AC 100...240 V, On/Off, Floating point

$220.57

Unit

Available on backorder

Quantity

remove

add

Documents

Belimo NMX120-3 Data Sheet
Belimo NMB24-3, NMB24-MFT, NMB24-SR, NMB24-SR-T, NMCB24-3, NMCB24-SR, NMCX24-MFT, NMQB24-1, NMQB24-MFT, NMQX24-1, NMQX24-MFT, NMX120-3, NMX120-3-F, NMX120-SR, NMX120-SR-F Installation Instructions

Product Details

Configurable Damper Actuator, 90 in-lb [10 Nm], Non fail-safe, AC 100...240 V, On/Off, Floating point

Attributes

Control	On/Off Floating point
Fail-Safe	Non-Spring Return
Torque	90 in-lb
Nominal Voltage	AC 100…240 V
Transformer Sizing	5.5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	100…240 VAC, -15% / +10%, 50/60 Hz
Power Consumption In Operation	3.5 W
Power Consumption In Rest Position	0.6 W
Electrical Connection	18 GA appliance cable, 3ft [1m] 10ft [3m] and 16ft [5m], with ½” conduit connector, degree of protection NEMA 2 / IP54
Overload Protection	electronic throughout 0…95° rotation
Input Impedance	600 Ω
Angle Of Rotation	Max. 95°, adjustable with mechanical stop
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanically, 30…65 mm stroke
Running Time (Motor)	default 95 s, variable 45, 60, 150 s, constant, independent of load
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	UL94-5VA
Nominal Voltage Ac	100…240 V
Noise Level, Motor	45 dB(A)
Torque Motor	90 in-lb [10 Nm]
Quality Standard	ISO 9001
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter	½…1.05” round, centers on ½” and ¾” with insert, 1.05” without insert
Fail-Safe Function	Non fail-safe
Control Type Web	Floating/3-point
Fail-Safe	NO
