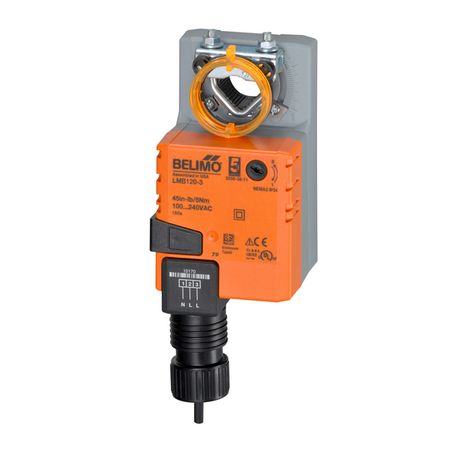

Belimo LMB120-3

Name: Belimo LMB120-3
Brand: Belimo
SKU: CS3348546
Price: 163.37 USD
Availability: OutOfStock

SKU: CS3348546MPN: LMB120-3

Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 100...240 V, On/Off, Floating point

$163.37

Unit

Available on backorder

Quantity

remove

add

Documents

Belimo LMB120-3 Data Sheet
Belimo LMB120-3, LMB24-10P-HM, LMB24-3, LMB24-3-P5-T, LMB24-3-P5-T.1, LMB24-3-S, LMB24-3-T, LMB24-3-T.1, LMB24-3.1, LMB24-HM, LMB24-MFT, LMB24-SR, LMB24-SR-T, LMB24-SR-T.1, LMB24-SR.1 Installation Instructions

Product Details

Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 100...240 V, On/Off, Floating point

Attributes

Control	On/Off Floating point
Fail-Safe	Non-Spring Return
Torque	45 in-lb
Nominal Voltage	AC/DC 100…240 V
Transformer Sizing	2.5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	100…240 VAC, ±10%, 50/60 Hz, 100…240 VDC
Power Consumption In Operation	1.5 W
Power Consumption In Rest Position	0.2 W
Electrical Connection	18 GA plenum cable, 3 ft [1 m], with ½” conduit connector, degree of protection NEMA 2 / IP54
Overload Protection	electronic throughout 0…95° rotation
Input Impedance	600 Ω
Angle Of Rotation	Max. 95°, adjustable with mechanical stop
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanically, 30…65 mm stroke
Running Time (Motor)	95 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	UL94-5VA
Nominal Voltage Dc	100…240 V
Nominal Voltage Ac	100…240 V
Noise Level, Motor	35 dB(A)
Torque Motor	45 in-lb [5 Nm]
Quality Standard	ISO 9001
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter	¼…⅝” round, centers on ⅝”, ¾” clamp available
Fail-Safe Function	Non fail-safe
Control Type Web	Floating/3-point
Fail-Safe	NO
