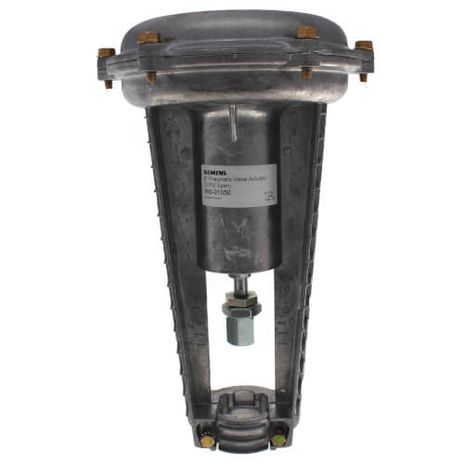

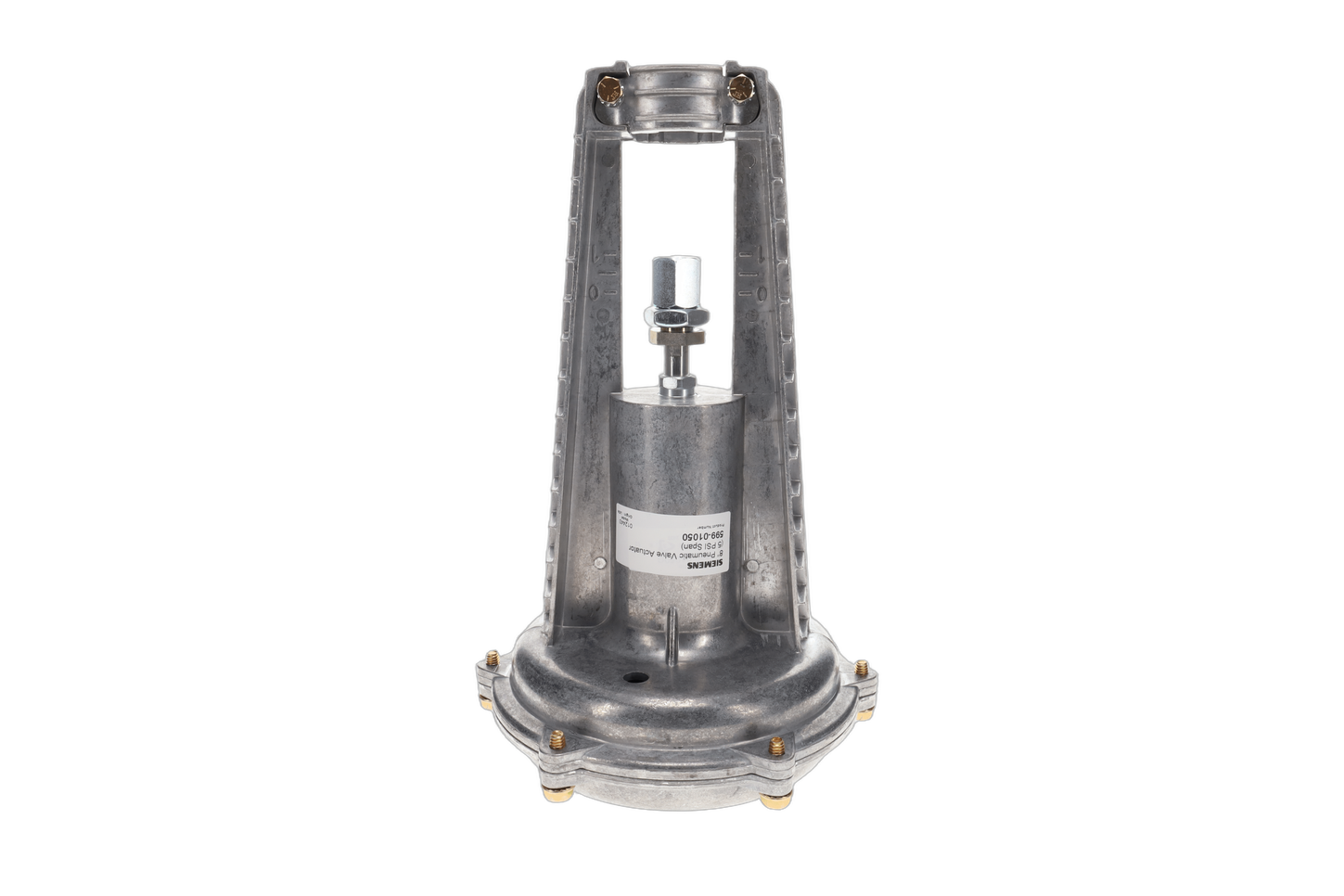

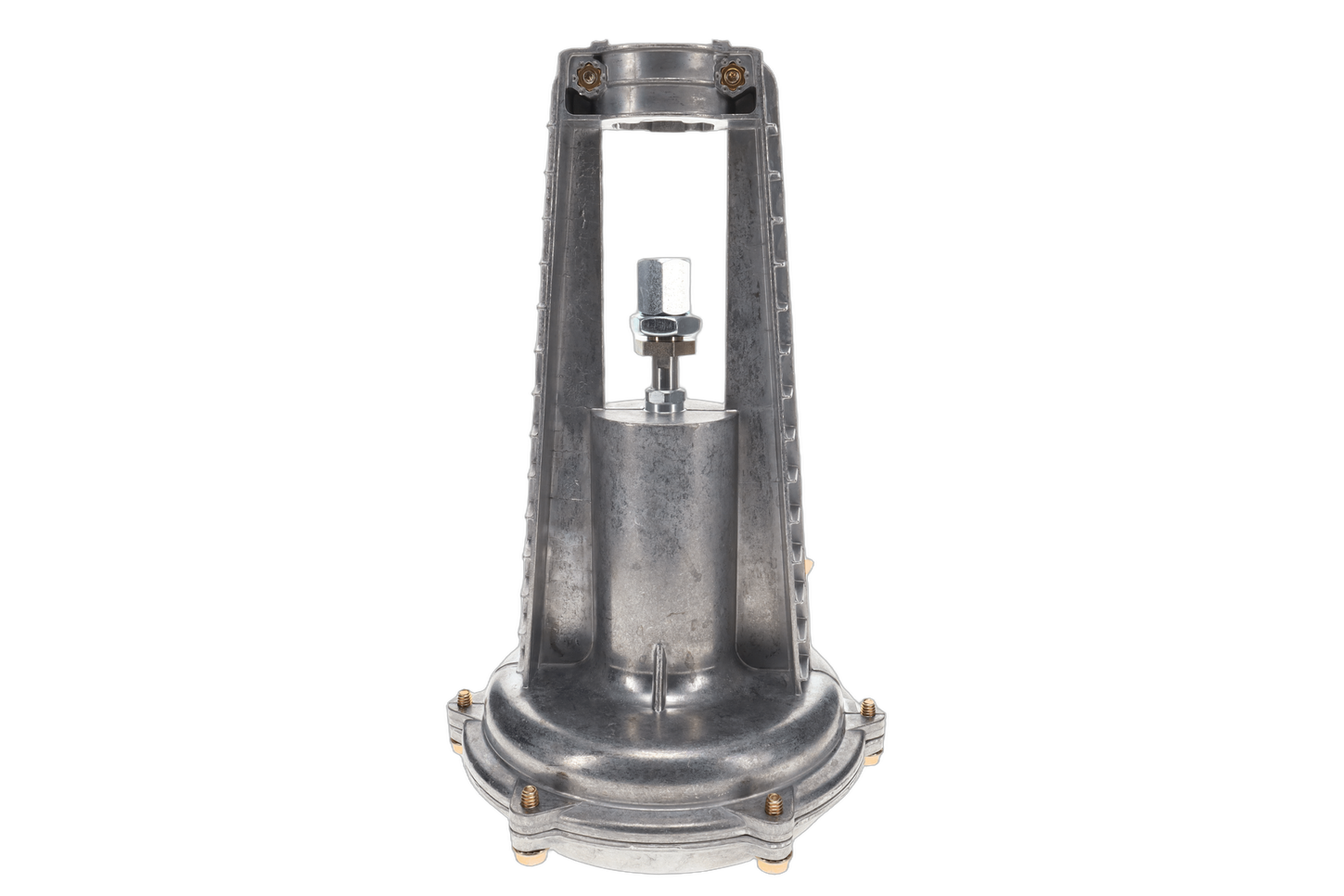

Siemens 599-01050

Valve Actuator, Pneumatic, 8-inch, 5 psi span, ¾ inch Stroke, ⅛-inch NPT

This Flowrite 599 Series 8-inch Pneumatic Valve Actuator is designed to be used with Flowrite 599 Series valves in liquid and steam service applications. This valve actuator has a ¾ in. stroke, a fixed span spring range of 5 psi, normal duty service of 25 to 300 °F (-4 to 149 °C), a max diaphragm pressure of 35 psi (241 kPa), and a ⅛ in. NPT air connection. Other features of this valve actuator include field-adjustable start point for sequencing and a completely enclosed actuator housing which protects the diaphragm, spring and start point adjuster.
