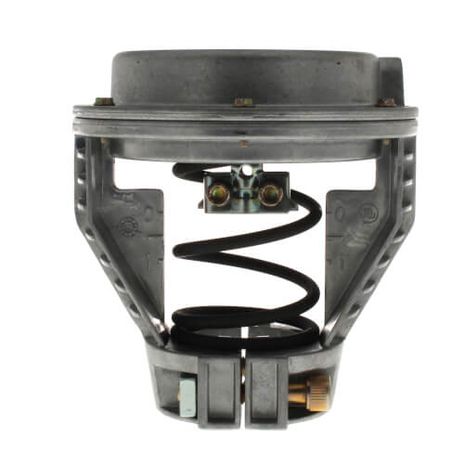

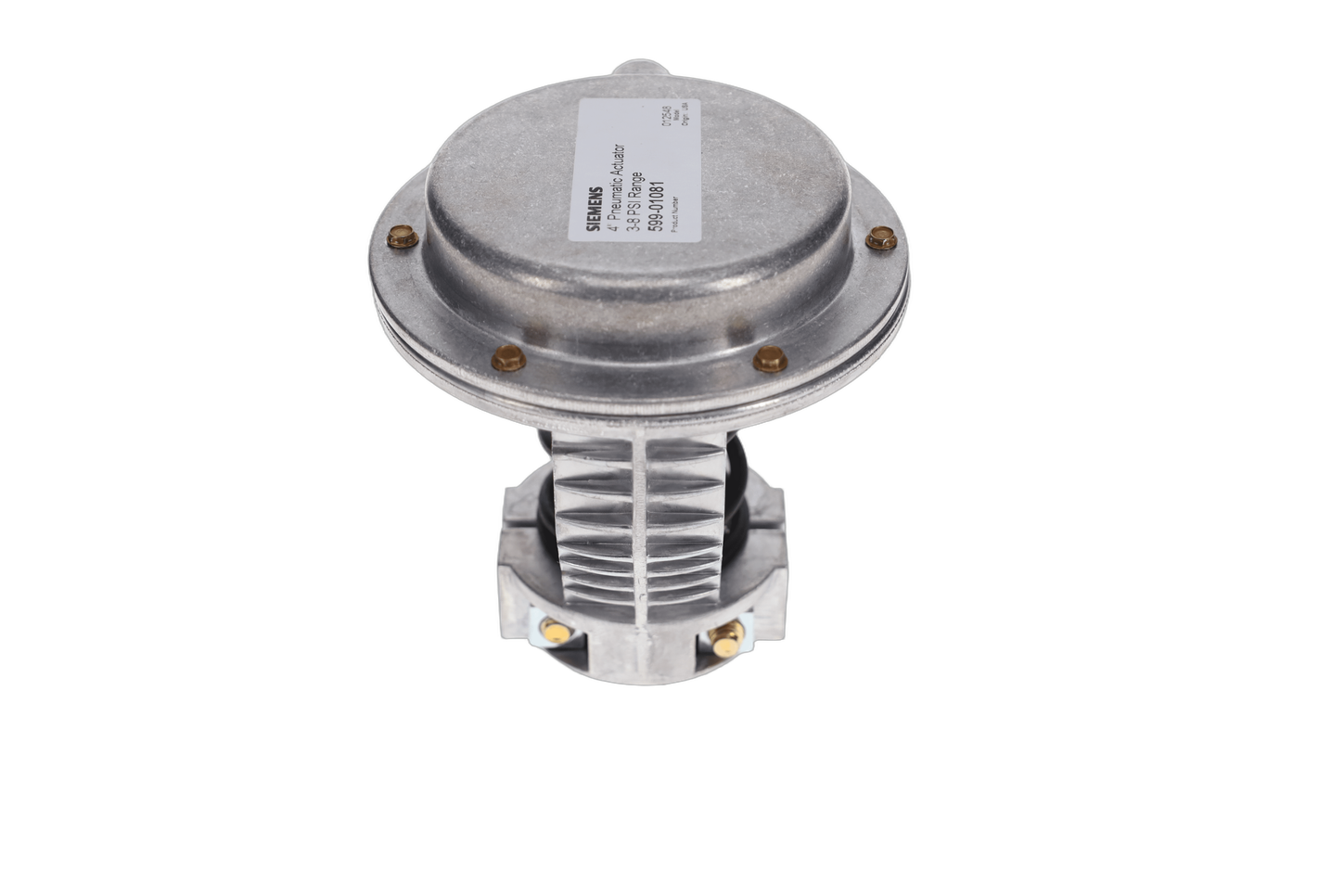

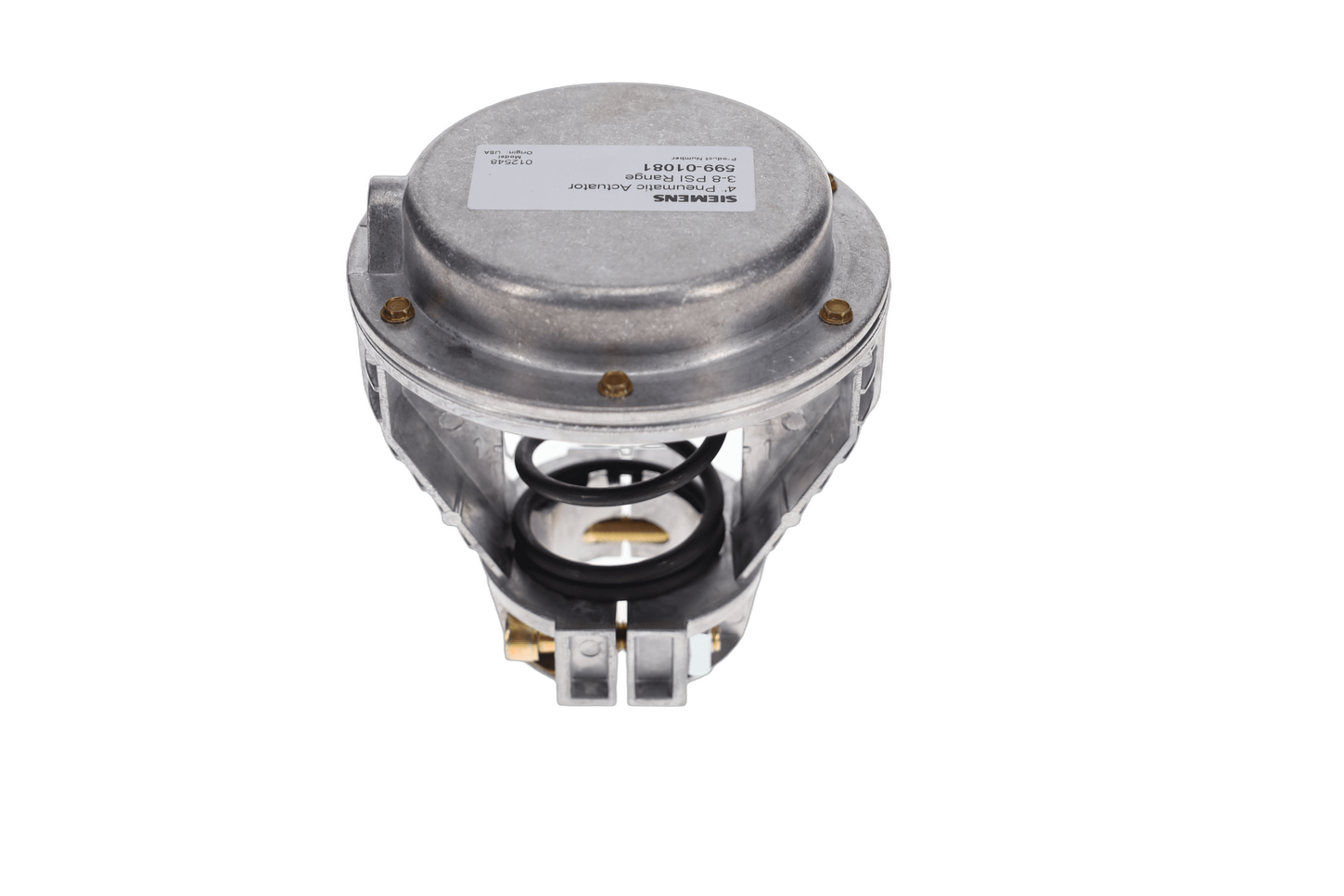

Siemens 599-01081

Valve Actuator, Pneumatic, 4-inch, 3 to 8 psi, ¾ inch Stroke, ⅛-inch NPT

This Flowrite 599 Series 4-inch Pneumatic Valve Actuator is designed for use with Flowrite 599 Series valves in liquid and steam service applications. This valve actuator has a ¾ inch stroke, a nominal spring range of 3 to 8 psi, a max diaphragm pressure of 35 psi (241 kPa), and a ⅛ inch NPT air connection. Other features of this valve actuator include rugged, all metal housing, visual position indication and a large diaphragm area for control accuracy.
