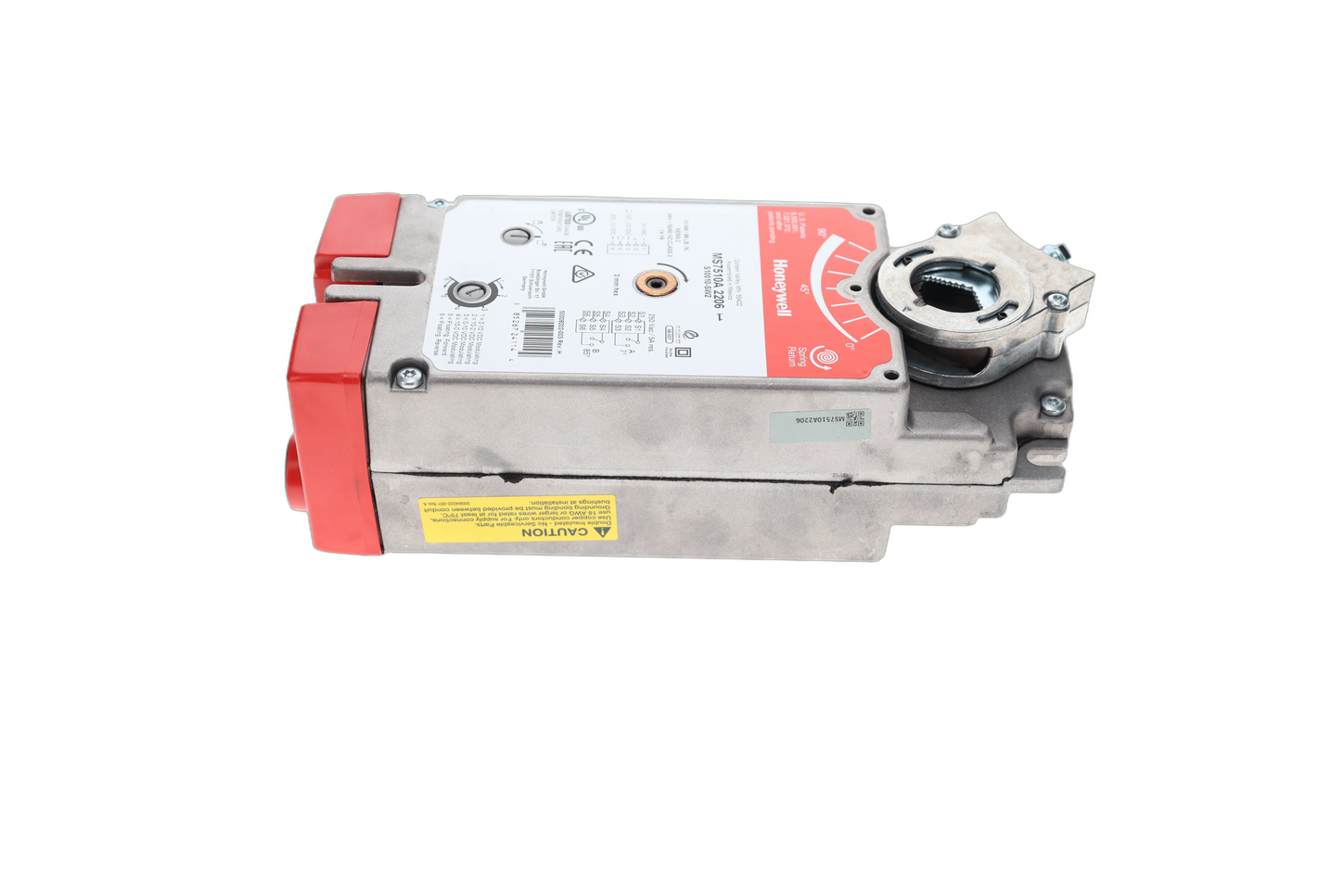

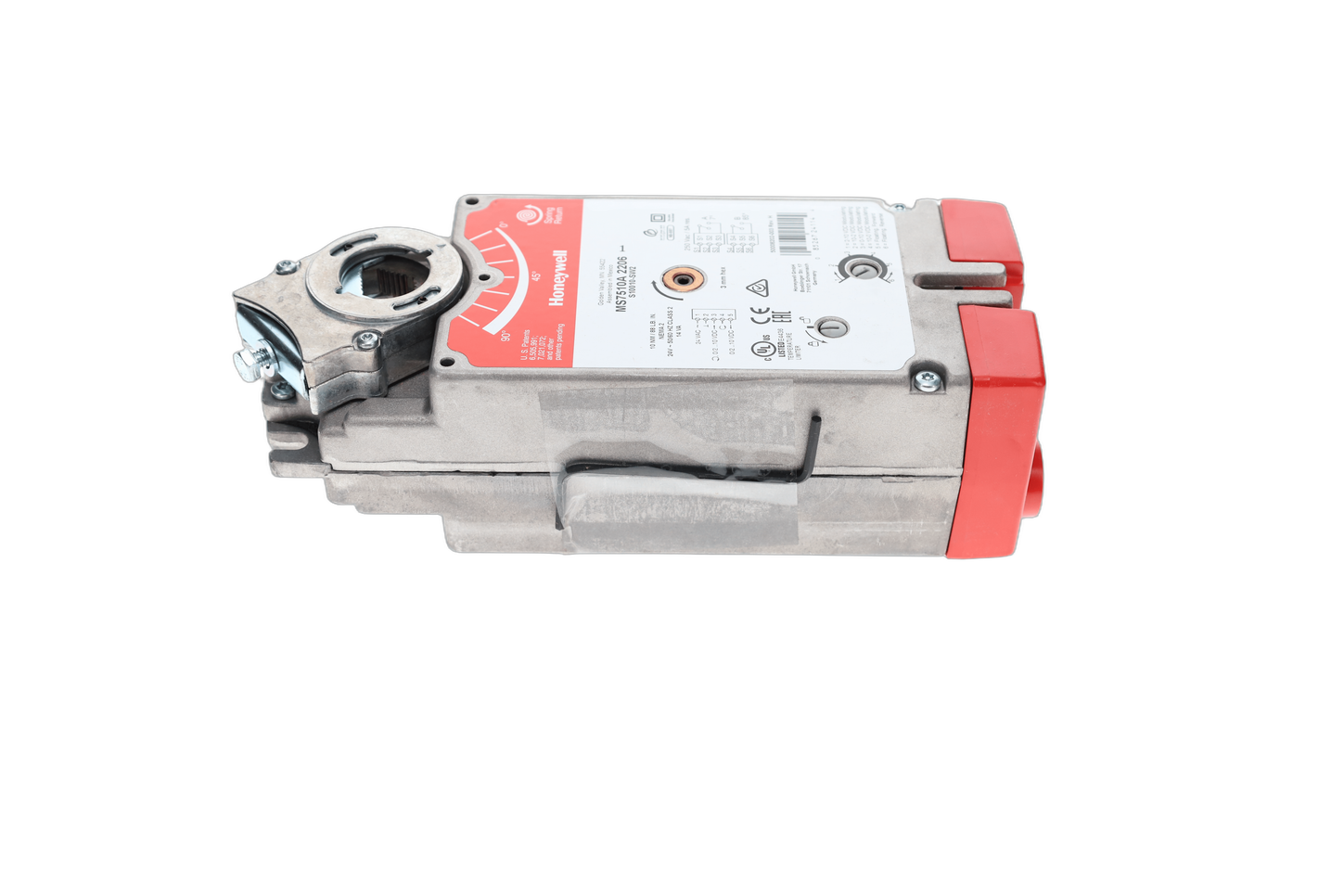

Honeywell MS7510A2206

Name: Honeywell MS7510A2206
Brand: Honeywell Commercial
SKU: CS900056
Price: 484.44 USD
Availability: InStock

SKU: CS900056MPN: MS7510A2206Alternate Part #: HW-MS7510A2206UPC/EAN: 085267241144

S10010-SW2 DC MOTOR DIRECT DAMPER

$484.44

Unit

2 in stock

Quantity

remove

add

Product Details

S10010-SW2 DC MOTOR DIRECT DAMPER

Attributes

Application	HVAC
Includes	Mounting bracket, self-centering shaft adapter
Dimensions in	9.72 in high x 3.94 in wide x 2.95 in deep
Weight lb	6 lb
Materials	Aluminum housing, Plenum rated plastic access cover
Mounting	Direct Coupled
Voltage	24v
Frequency	50 Hz; 60 Hz
Electrical Connections	Enclosed screw terminal strip (22 to 14 AWG)
Power Consumption	Driving– 14 VA, Holding– 5 VA
Stroke	95 ±3 degrees
Ambient Temperature Range F	-40 F to +140 F
UL	UL873, Plenum Rated
cUL	cUL C22.2 No. 24-93
CE	89/336/ECC, 73/23/EEC
Actuator Type	Valve; Damper
Additional Torque Ratings lb-in	Maximum Stall– 150 lb-in.
Control Signal	Floating; SPDT; On/Off; (0)2-10 Vdc (4-20 mA w/500 ohm resistor)
Environmental Electrical or Ingress Protection	NEMA 2
External Auxiliary Switches Available	Yes, SW2-US
Fail Safe Mode	Spring Return
Feedback	2-10 Vdc (max. output: ±1.0 mA)
Input Impedance	Min. 95 kOhm
Internal Auxiliary Switch	2
Manual operation	Manual crank
Maximum Noise Rating	Driving (dB(A) @ 1m)– 40; Holding (dB(A) @ 1m)– 20 (no audible noise)
Operating Humidity Range RH	5 to 95% RH, non-condensing
Product Type	Actuator
Rotation to Open	By switch
Rotational Stroke Adjustment	Mechanically limited 5 degree increments
Shaft Adapter Type	Self-centering clamping
Shaft Dimensions in	⅜ to 1.06 in. round or ⅜ to 11/16 in. square
Shipping and Storage Temperature Range F	-40 F to +158 F
Spring Return Direction	By orientation
Spring Return Timing	Maximum– 20 sec
Supply Voltage	24 Vac or Vdc
Switch Ratings	250 Vac, 5 A res
Timing Nominal	Driving @ 60 Hz– 90 sec
Torque Rating lb-in	88 lb-in.
