Siemens M3FB15LX15/A
SKU: CS880931MPN: M3FB15LX15/AUPC/EAN: 7612914015822
0 to 10V ½”Valve, Hot Gas Bypass, 1.75 Cv, 460 PSI
$1,813.32
UnitAvailable on backorder
Product Details

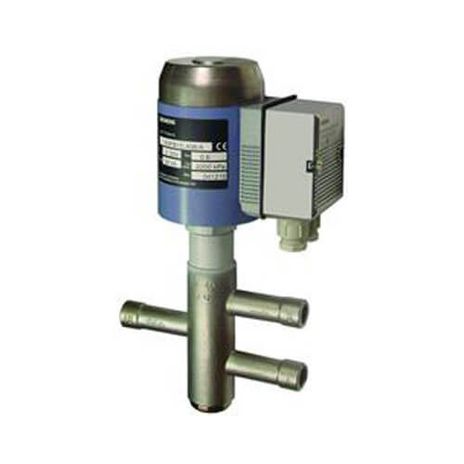

This M3FB Magnetic Valve is used for refrigeration applications. This 0 to 10V diverting valve is suitable for hot gas bypass and heat-recovery applications. This ½” valve has a 1.75 Cv, a maximum operating pressure of 460 psi and must be applied to closed loop applications.
Attributes
| Ambient Temperature Operation | -40…50 °C |
| Leakage Rate | 0.05 % of kvs |
| Material Inside Set | CrNi steel/brass |
| Material Valve Body | Steel |
| Medium Temperature | -40…120 °C; -40…248 ºF |
| Medium Temperature F Max | 248 ºF |
| Medium Temperature F Min | -40 ºF |
| Operating Voltage | 24 VAC |
| Permissible Operating Pressure | 4300 kPa |
| Positioning Time | 1 s |
| Power Consumption | 26 VA |
| Spring Return Function | AB- |
Specifications
| SKU | CS880931 |
|---|---|
| MPN | M3FB15LX15/A |
| UPC/EAN | 7612914015822 |
