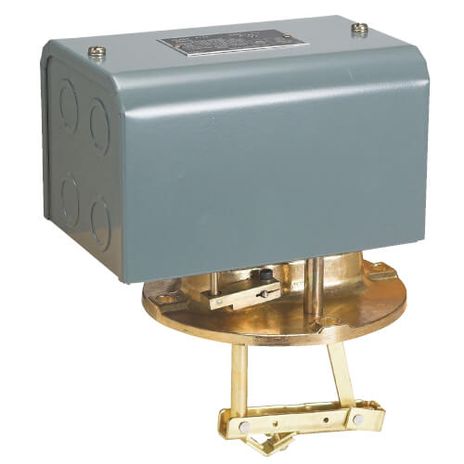

Telemecanique 9038DG10

FLOAT SWITCH 575V 1HP

Note: Due to a rebranding at Schneider Electric, this product now falls under the Telemecanique brand. The product itself remains unchanged

• Range of product: Pumptrol
• Product Type: Mechanical alternator
• Device Application: Top mounted closed tank
• Device Short Name: 9038D
• Product Specific Application: Liquid level control
• Electrical Circuit Type: Power circuit
• Device mounting: Flange
• Cable entry number: 8 knock-outs for ½” or ¾”conduit UL 508
• Contacts Type: 4 NC, snap action, DPST-DB, Form YY
• Controlled Fluid: Fresh water specific gravity of 0.85 in or higher, Sea water specific gravity of 0.85 in or higher, Hydraulic oil specific gravity of 0.85 in or higher, Corrosive fluid specific gravity of 0.85 in or higher
• Electrical Connection: Screw-clamp terminals 10 AWG
• Contact Operation: Contacts close on liquid rise
• Float Movement: Variable fixed
• Float position: Any
• Float rod angle: Horizontal
• Short-circuit protection: 20 A cartridge fuse gG
