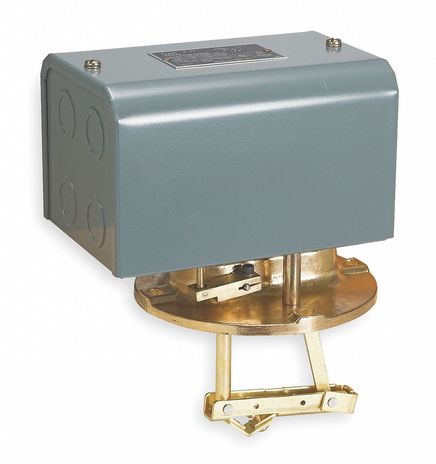

Telemecanique 9038DG9

Name: Telemecanique 9038DG9
Brand: Telemecanique
SKU: CS788811
Price: 995.21 USD
Availability: InStock

SKU: CS788811MPN: 9038DG9UPC/EAN: 785901508045

Mechanical alternator, Square D Pumptrol, mech closed tank, NEMA 1, flange top mounted, 4 NC DPST DB contacts

$995.21

Unit

3 Units Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Product Details

Mechanical Alternator:

Type: D* Used to control the liquid level in industrial closed tanks* Enclosure Rating: NEMA 1* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Flange* 575VAC* 2-Pole

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	top mounted closed tank
Sena Device Mounting	flange
Sena Device Short Name	9038D
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	painted cold-rolled steel
Sena Factory Modification	without
Sena Float Position	any
Sena Float Rod Angle	horizontal
Sena Kit Composition	float switch# #rod and float are to be choosen in accessories
Sena Local Signalling	without
Sena Materials In Contact With Fluid	stainlesss steel 304# #nitrile (Buna-N) or equivalent rubber# #yellow brass# #stainless steel 316
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Destination	for open tank or sump
Sena Product Or Component Type	mechanical alternator
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	UL 508# #CE
Sena Terminal Block Type	8 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
