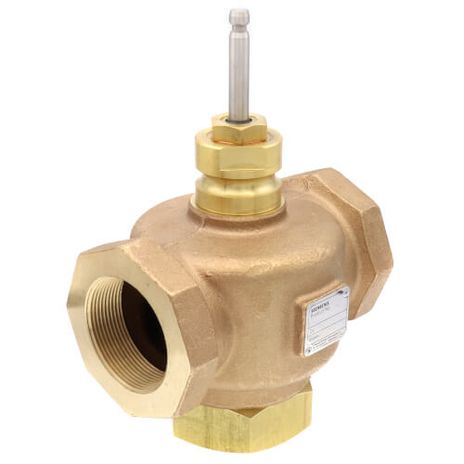

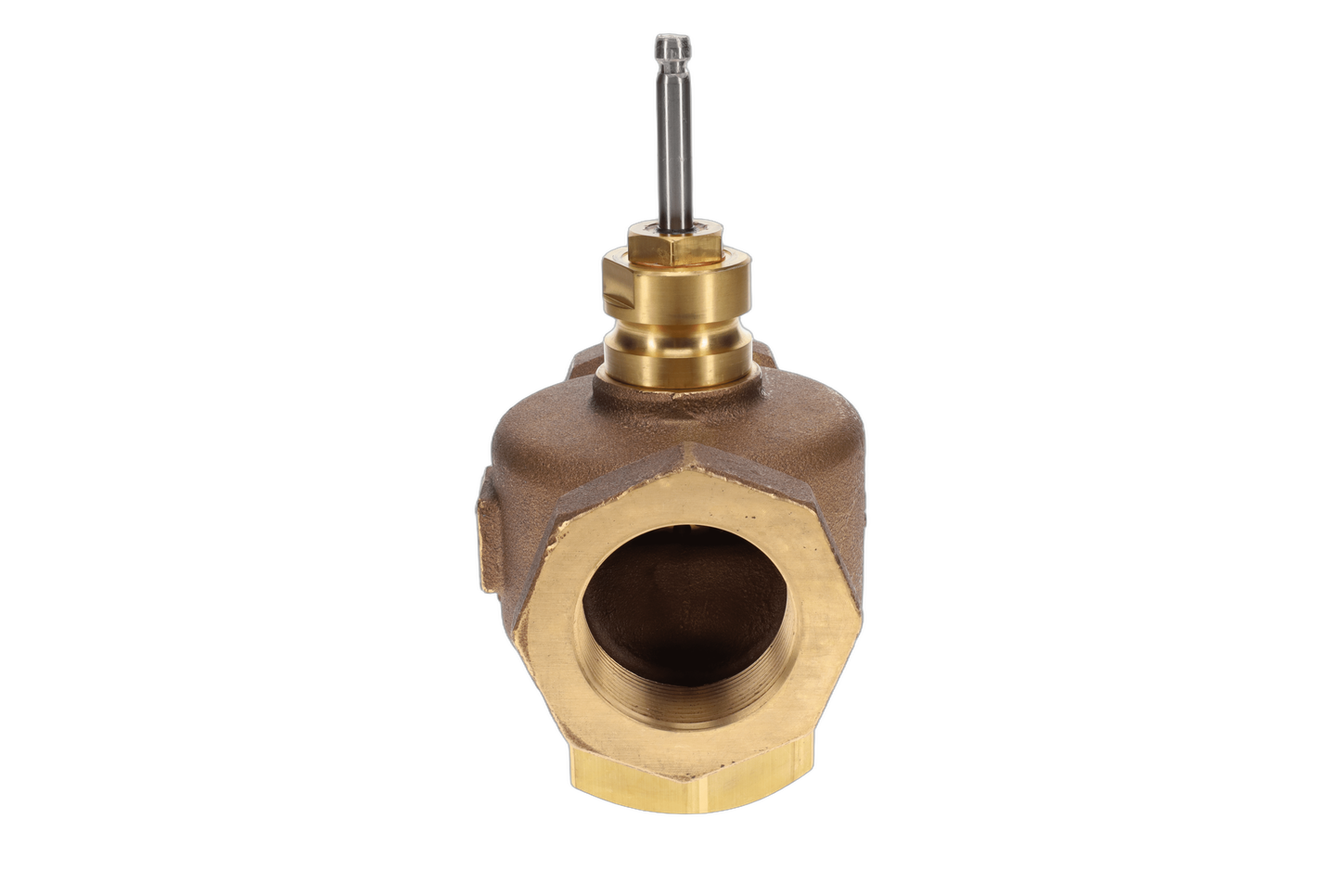

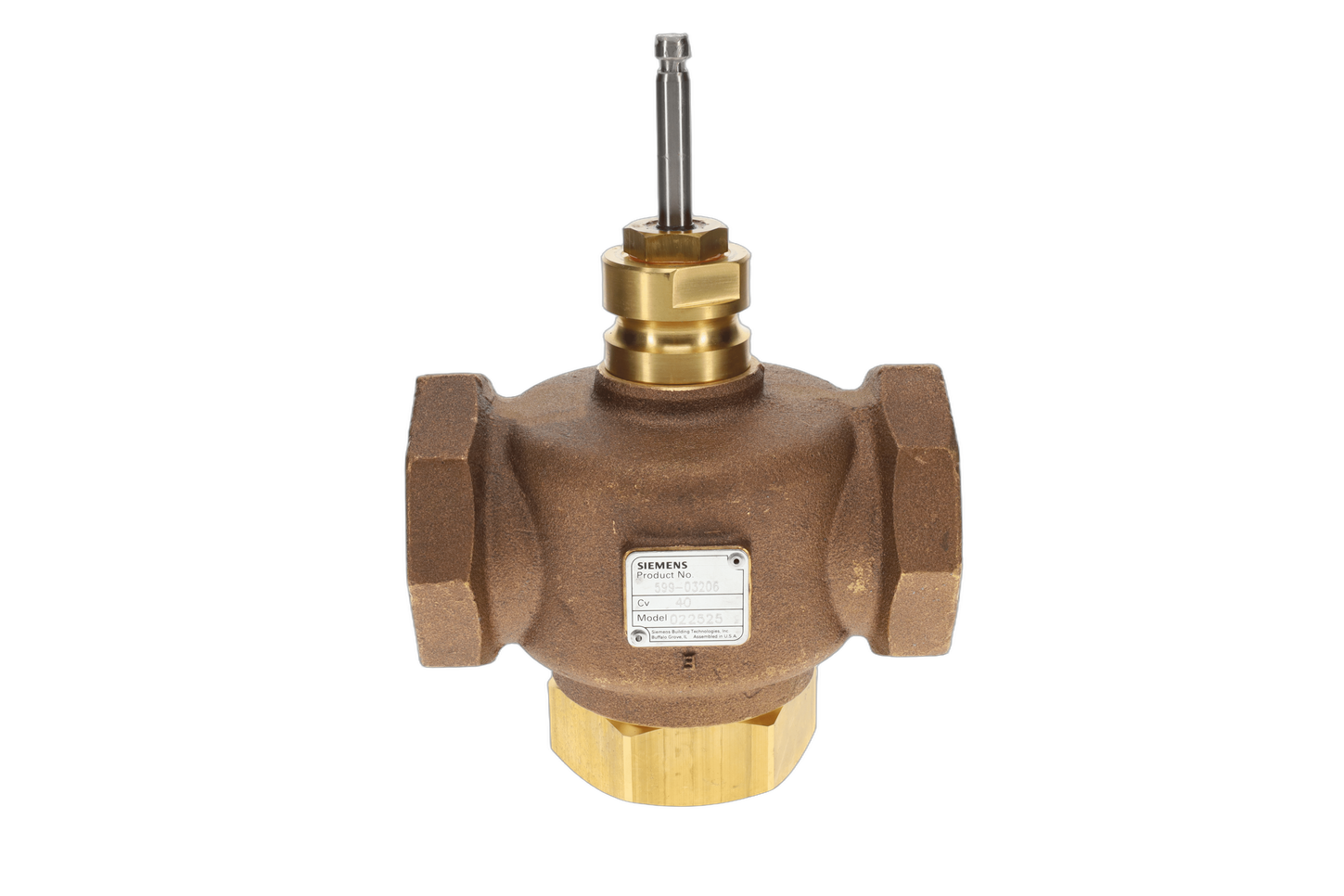

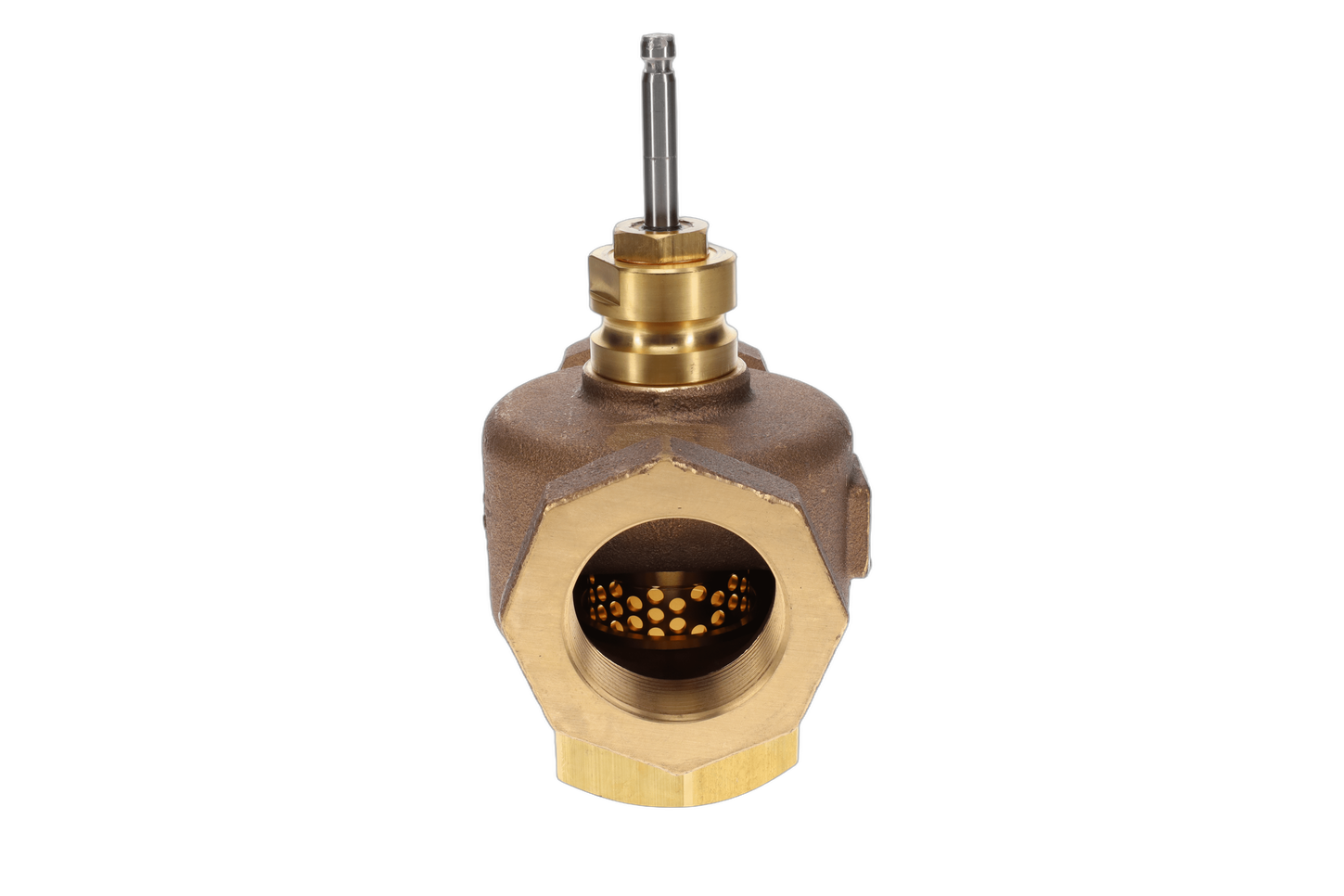

Siemens 599-03206
SKU: CS823513MPN: 599-03206UPC/EAN: 4034106335694
Flowrite 3-Way Valve 2”(50mm) line size, 40 Cv, Brass Trim, F×F, ANSI 250
$590.36
Unit2 in stock
Product Details
The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, brass trim, F×F connections, 2” line size, 40 Cv flow rate and is ANSI Class 250.
Attributes
| Connecting Thread | NPT, direct-coupled universal bonnet |
| End Connection | FxF |
| Flow Characteristic | Equal-percentage |
| Flow Coefficient Cv | 40.0000 |
| High Temperature | NO |
| Leakage Rate | Class IV (0.01% of Cv) |
| Material Inside Set | Body Trim: Brass; Stem: Stainless Steel ASTM A582 Type 303; Packing: EPDM O-ring;Seat: Single seat metal-to-metal |
| Material Valve Body | UNS CA 844 bronze |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 20…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 20 ºF |
| Mounting Position | vertical, horizontal, upright |
| Permissible Operating Pressure | 2758 kPa; 25 psi |
| Port Configuration | 3-Way Mixing |
| Rangeability | |
| Stroke | ¾ in., 20 mm |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 2 in |
| Valve Type | Three-way |
Specifications
| SKU | CS823513 |
|---|---|
| MPN | 599-03206 |
| UPC/EAN | 4034106335694 |
