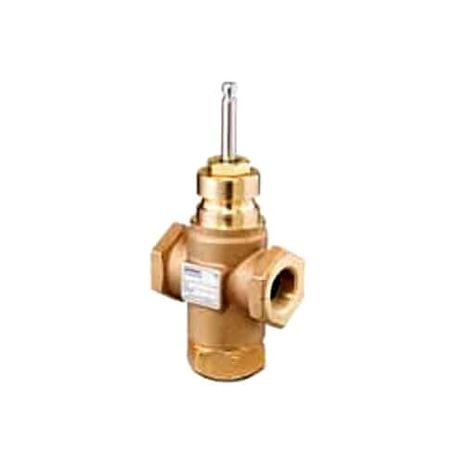

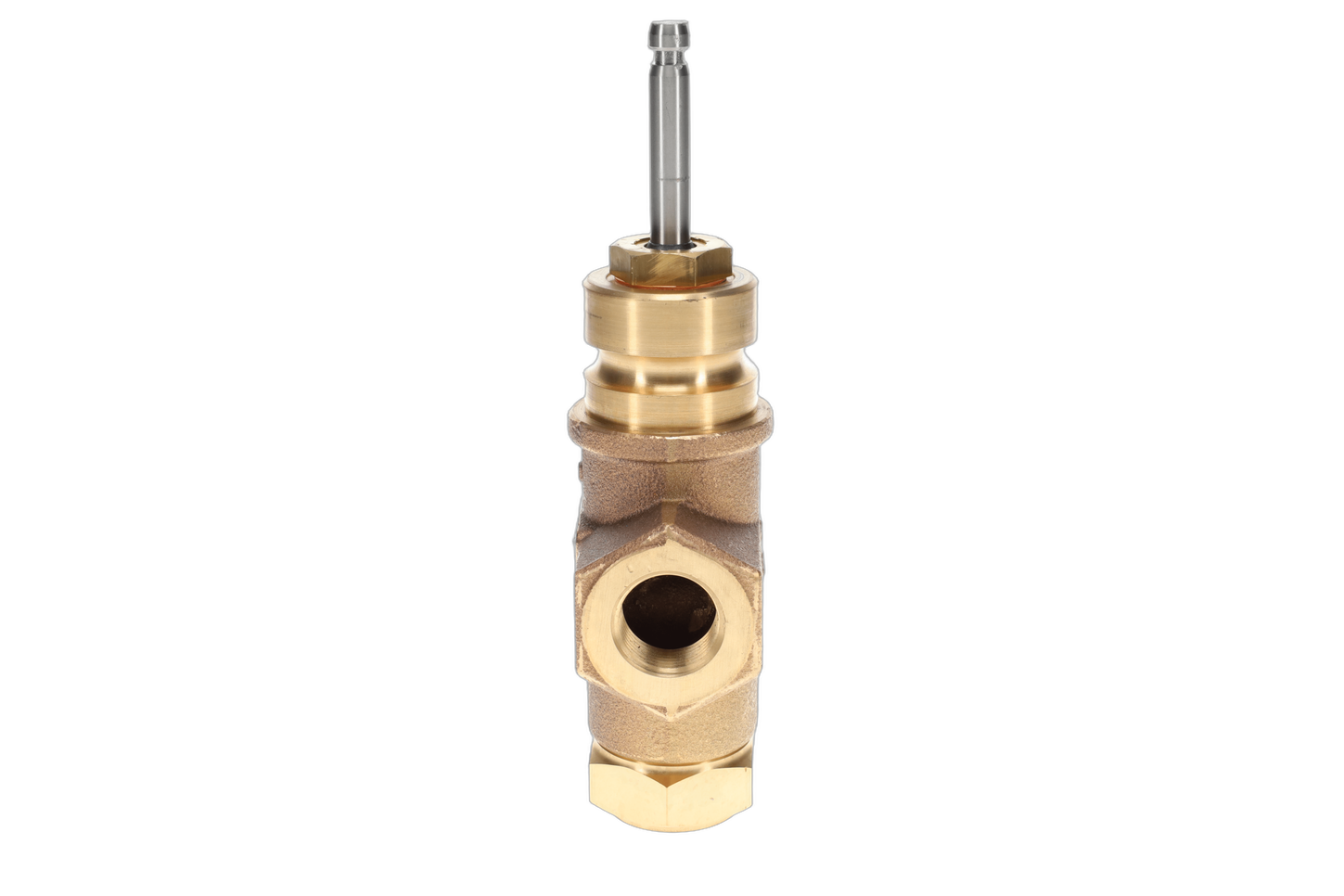

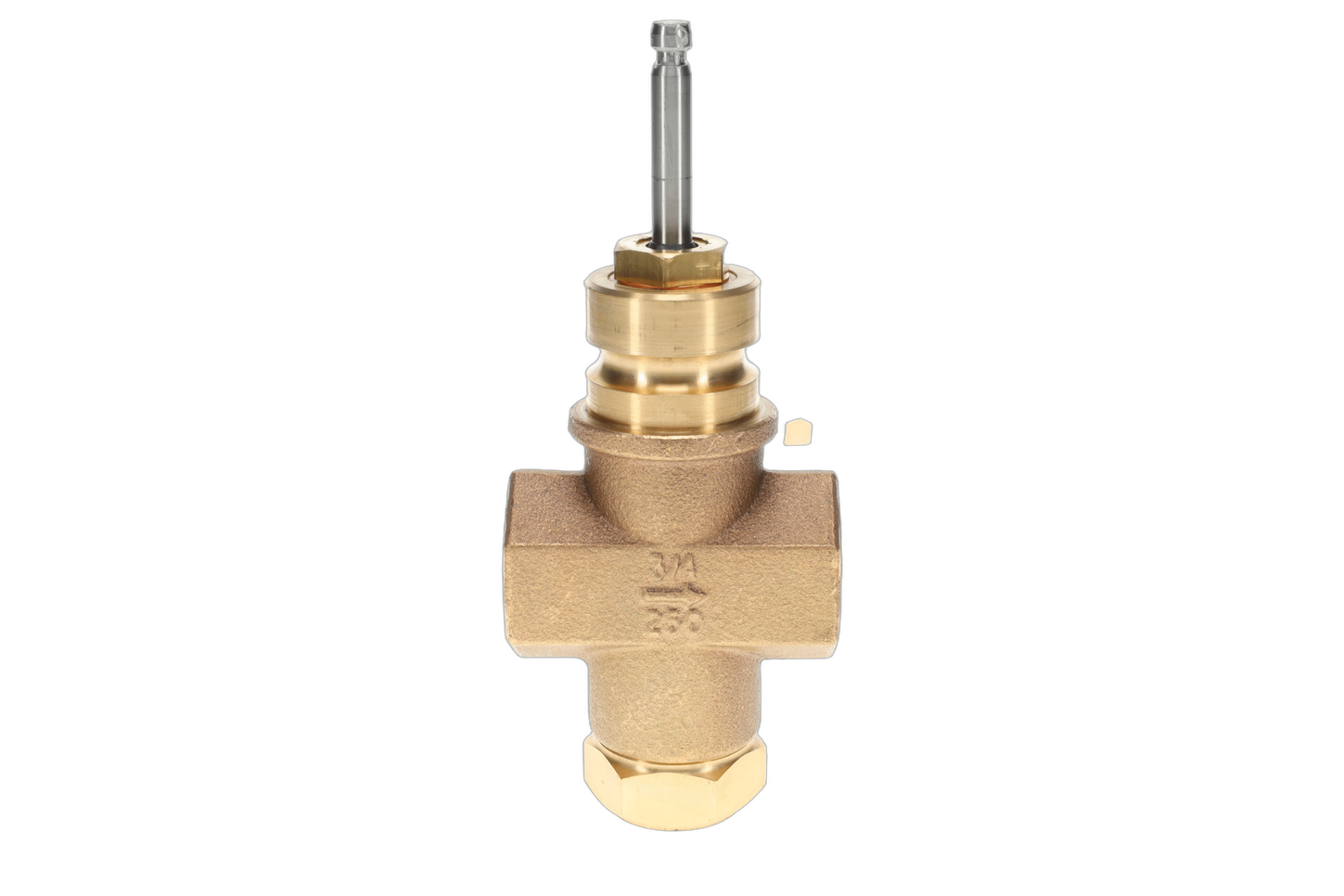

Siemens 599-03202
SKU: CS428865MPN: 599-03202UPC/EAN: 804766017025

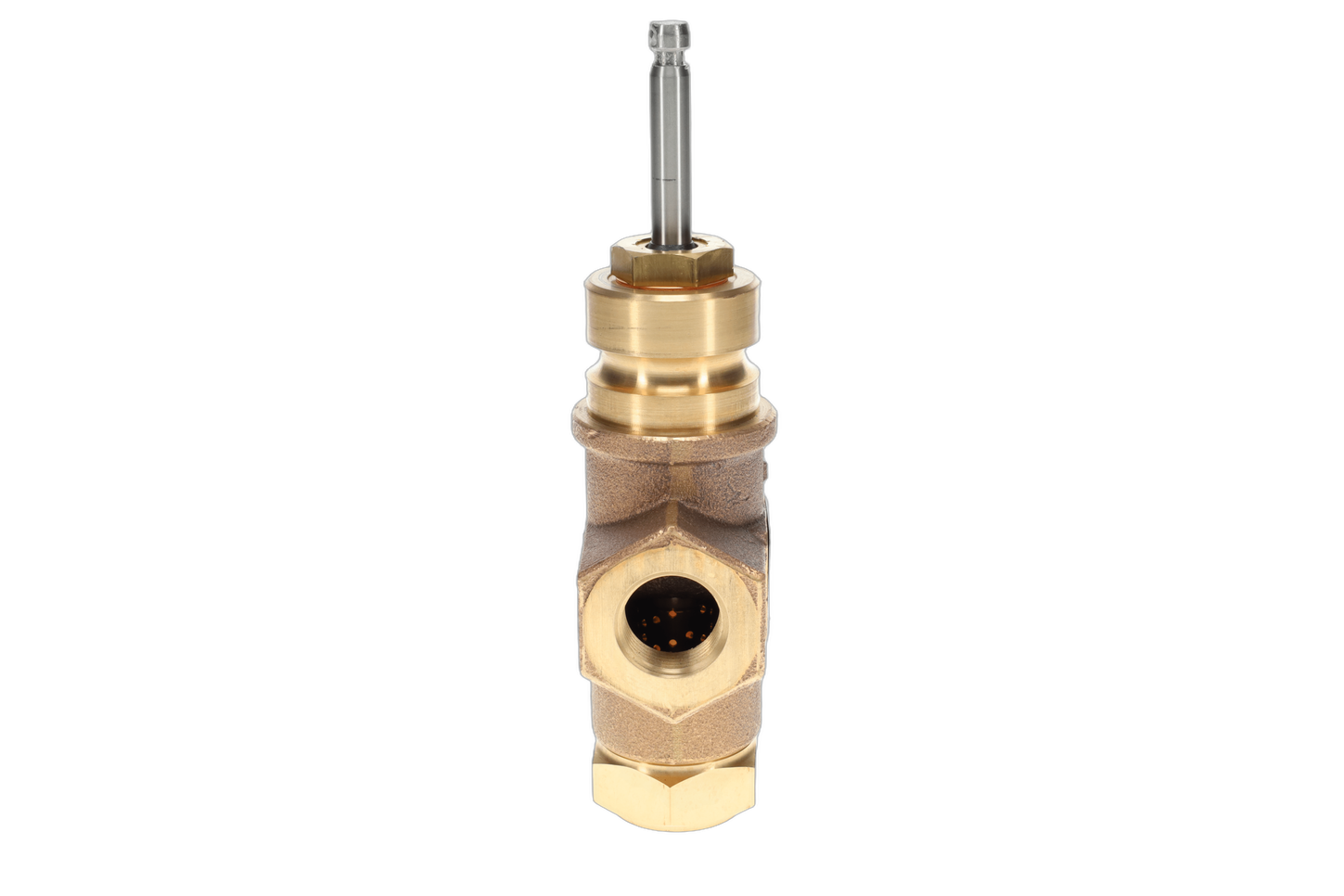

Flowrite 3-Way Valve ¾”(20mm) line size, 6.3 Cv, Brass Trim, F×F, ANSI 250
$239.21
Unit3 in stock
Product Details
The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, brass trim, F×F connections, ¾” line size, 6.3 Cv flow rate and is ANSI Class 250.
Attributes
| Connecting Thread | NPT, direct-coupled universal bonnet |
| End Connection | FxF |
| Flow Characteristic | Equal-percentage |
| Flow Coefficient Cv | 6.3000001907349 |
| High Temperature | NO |
| Leakage Rate | Class IV (0.01% of Cv) |
| Material Inside Set | Body Trim: Brass; Stem: Stainless Steel ASTM A582 Type 303; Packing: EPDM O-ring;Seat: Single seat metal-to-metal |
| Material Valve Body | UNS CA 844 bronze |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 20…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 20 ºF |
| Mounting Position | vertical, horizontal, upright |
| Permissible Operating Pressure | 2758 kPa; 25 psi |
| Port Configuration | 3-Way Mixing |
| Rangeability | |
| Stroke | ¾ in., 20 mm |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 0.75 in |
| Valve Type | Three-way |
Specifications
| SKU | CS428865 |
|---|---|
| MPN | 599-03202 |
| UPC/EAN | 804766017025 |
