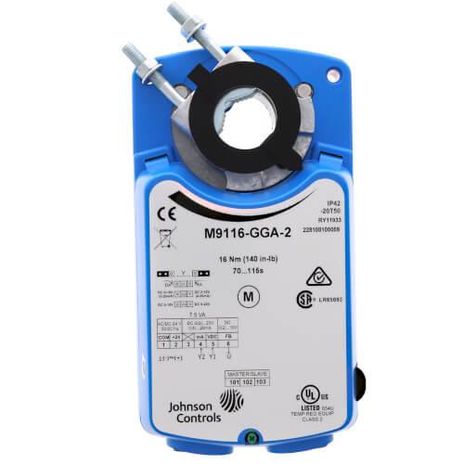

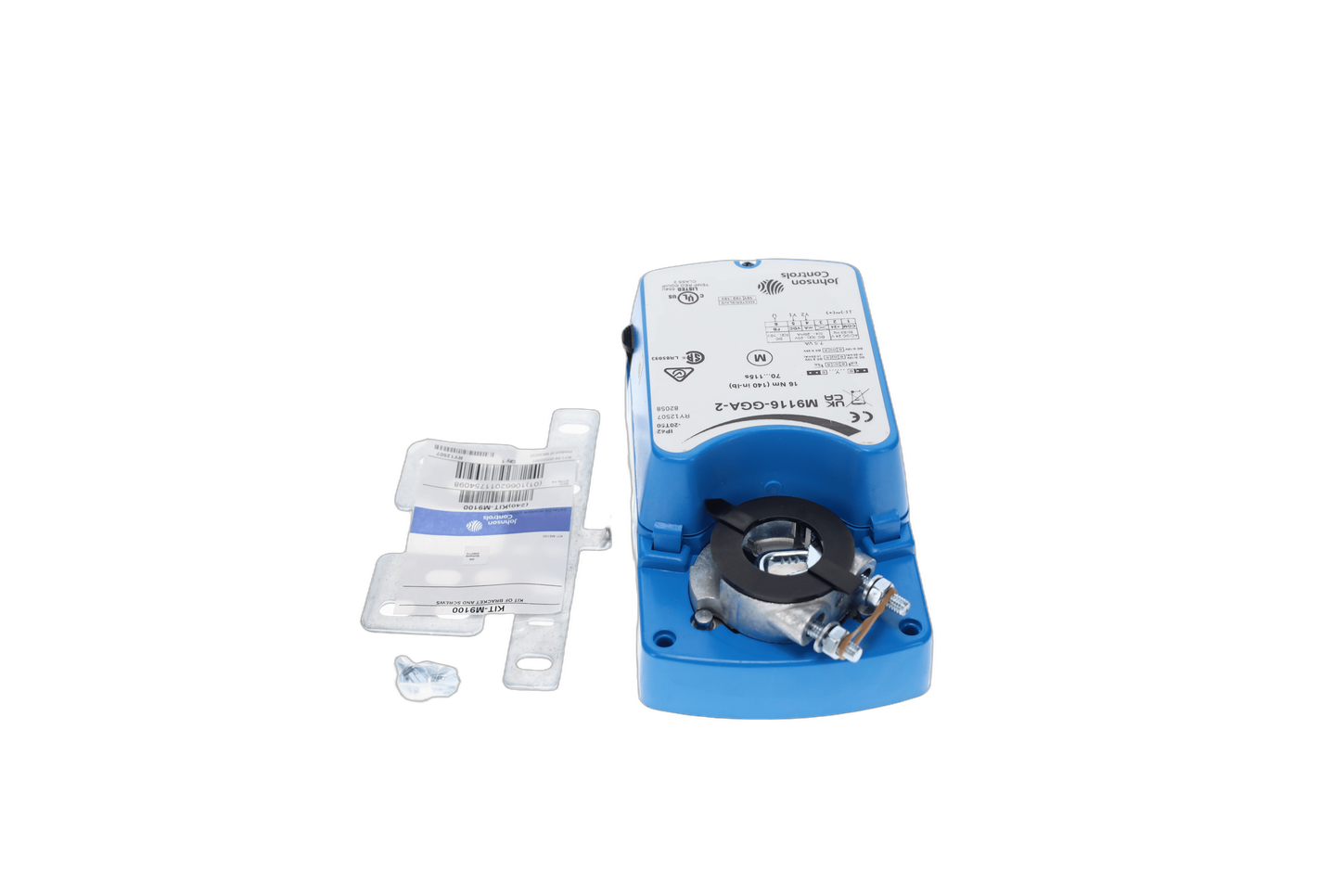

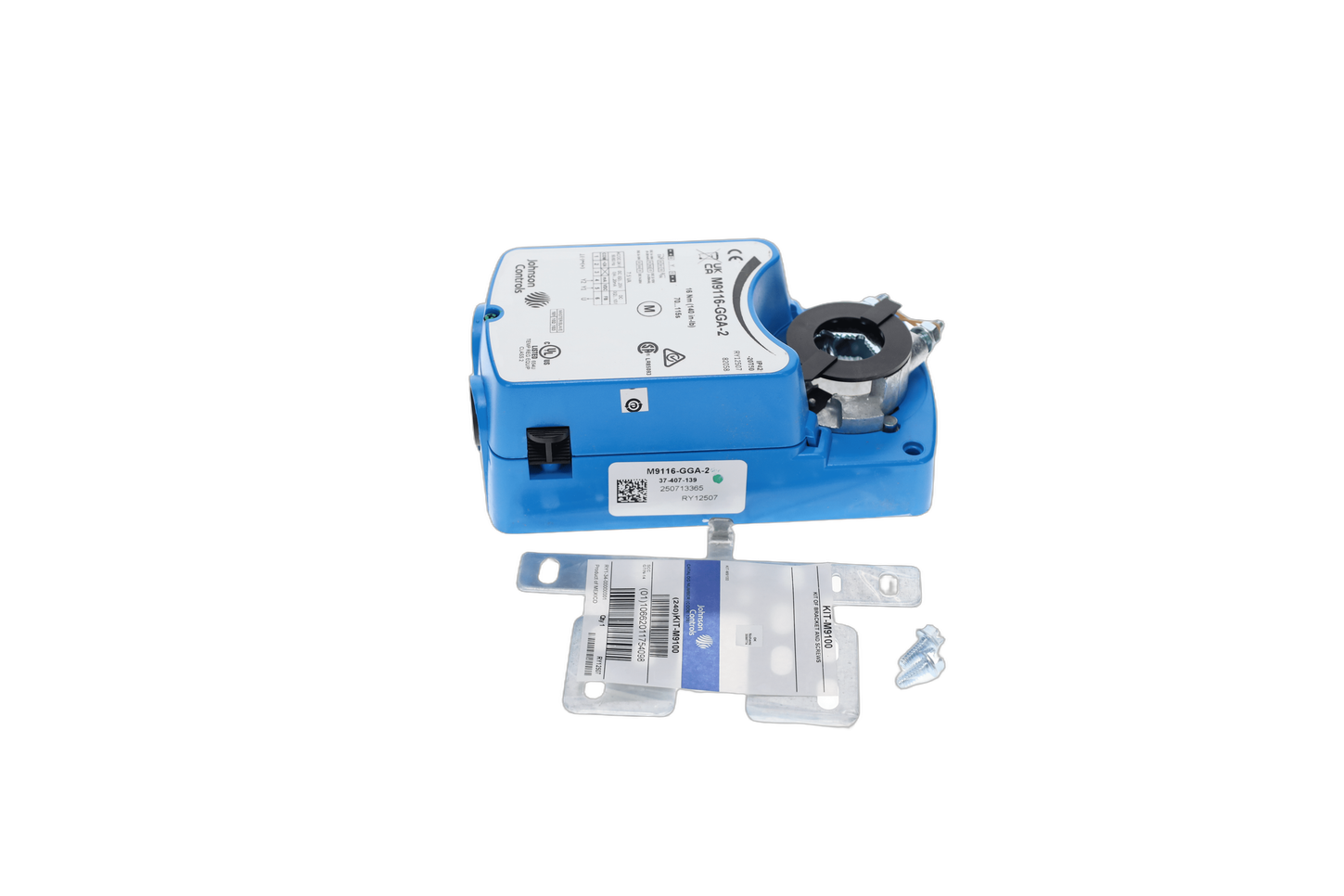

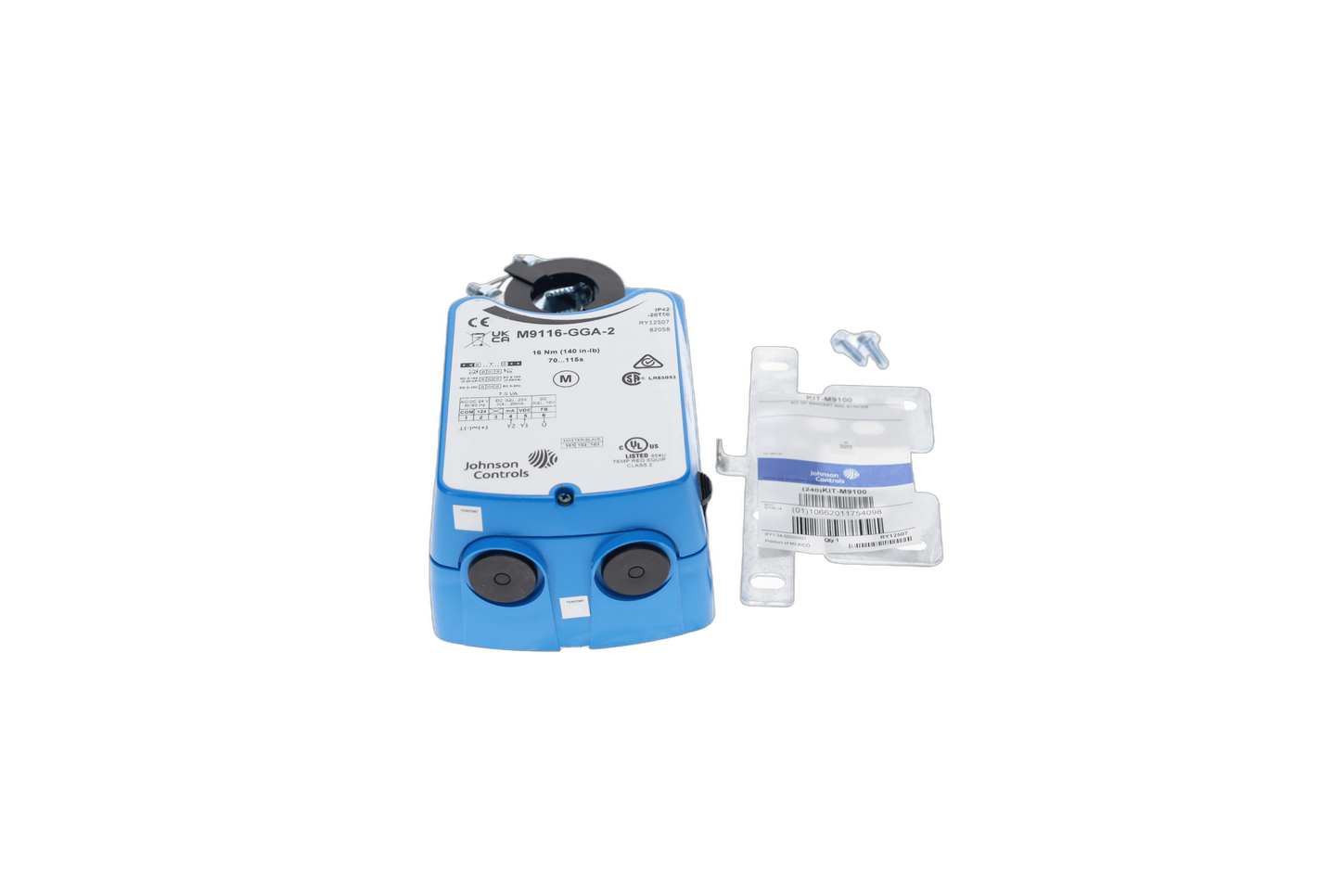

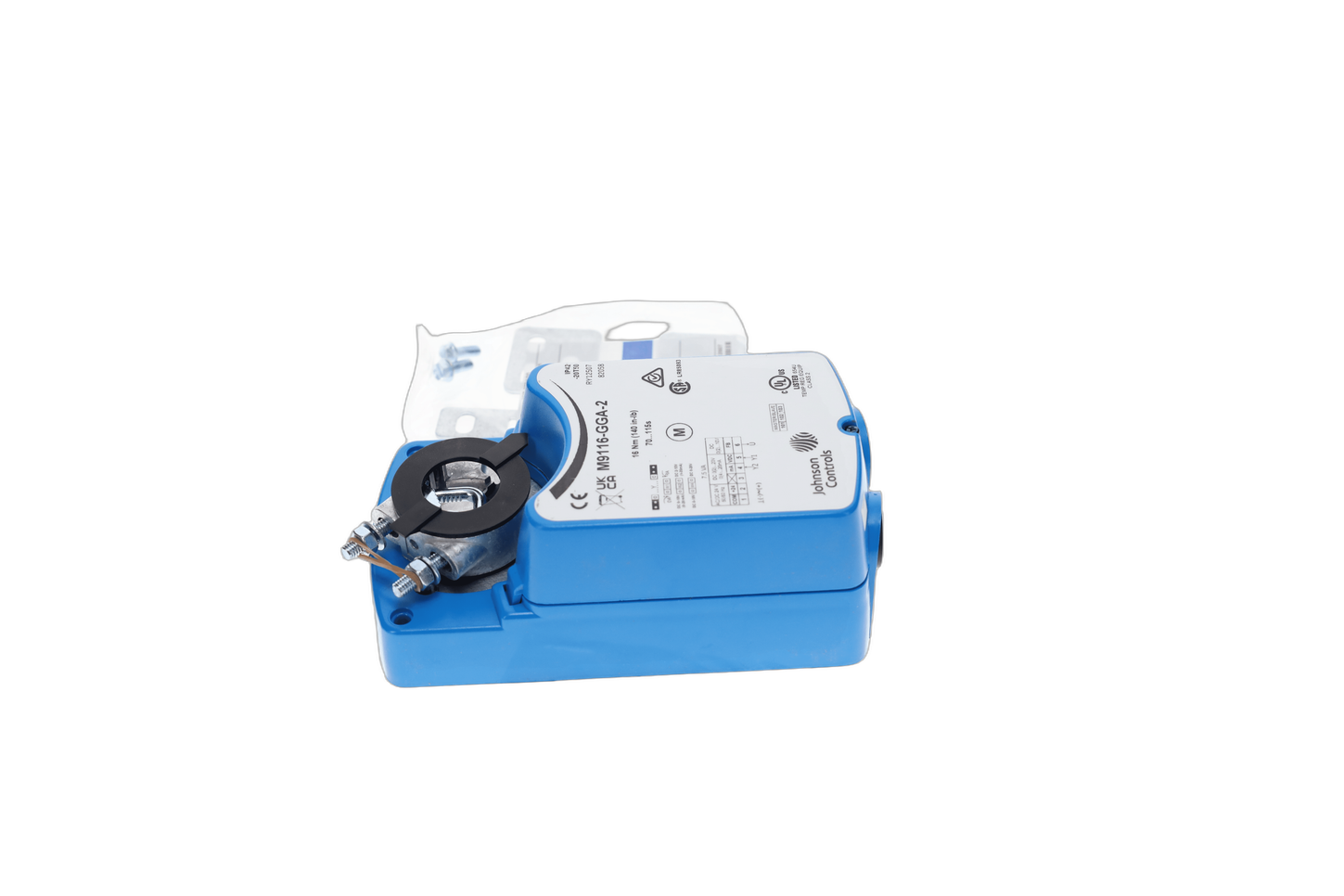

Johnson Controls M9116-GGA-2

ELECTRIC MOTOR ACTUATOR; 140 IN-LB/16NM; 24 VAC/VDC; PROP 0-10 VDC/0-20 MA; 0-10 VDC F/B

The M9116 actuators are available for use with on-off, floating, proportional, or resistive controllers. These bidirectional actuators do not require a damper linkage, and are easily installed on a damper with a round shaft up to a ¾ in (20 mm) in diameter or a square shaft up to ⅝ in (16 mm). They may be direct or remote mounted to a damper, or mounted to a valve using one of the M9000-5xx Valve Linkage Kits.

A single M9116 model delivers up to 280 lb·in (32 N·m) of torque. Two AGx, GGx, or HGx models in tandem deliver twice the torque or 560 lb·in (64 N·m). The angle of rotation is mechanically adjustable from 0 to 90° in 5-degree increments. Integral auxiliary switches are available to indicate end-stop position or to perform switching functions at any angle within the selected rotation range. Position feedback is available through switches, a potentiometer, or a 0 (2) to 10 VDC signal.

Features:

• Provides a running torque of 140 lb·in (16 N·m)
• Power Requirement: 24VAC/VDC
• VA rating:6.4
• Resistive 100 to 10,000 ohms
• Electrical connection: Screw Terminals; ½” Conduit Connectors
• Resistive 1000 ohm Potentiometer Position Feedback
