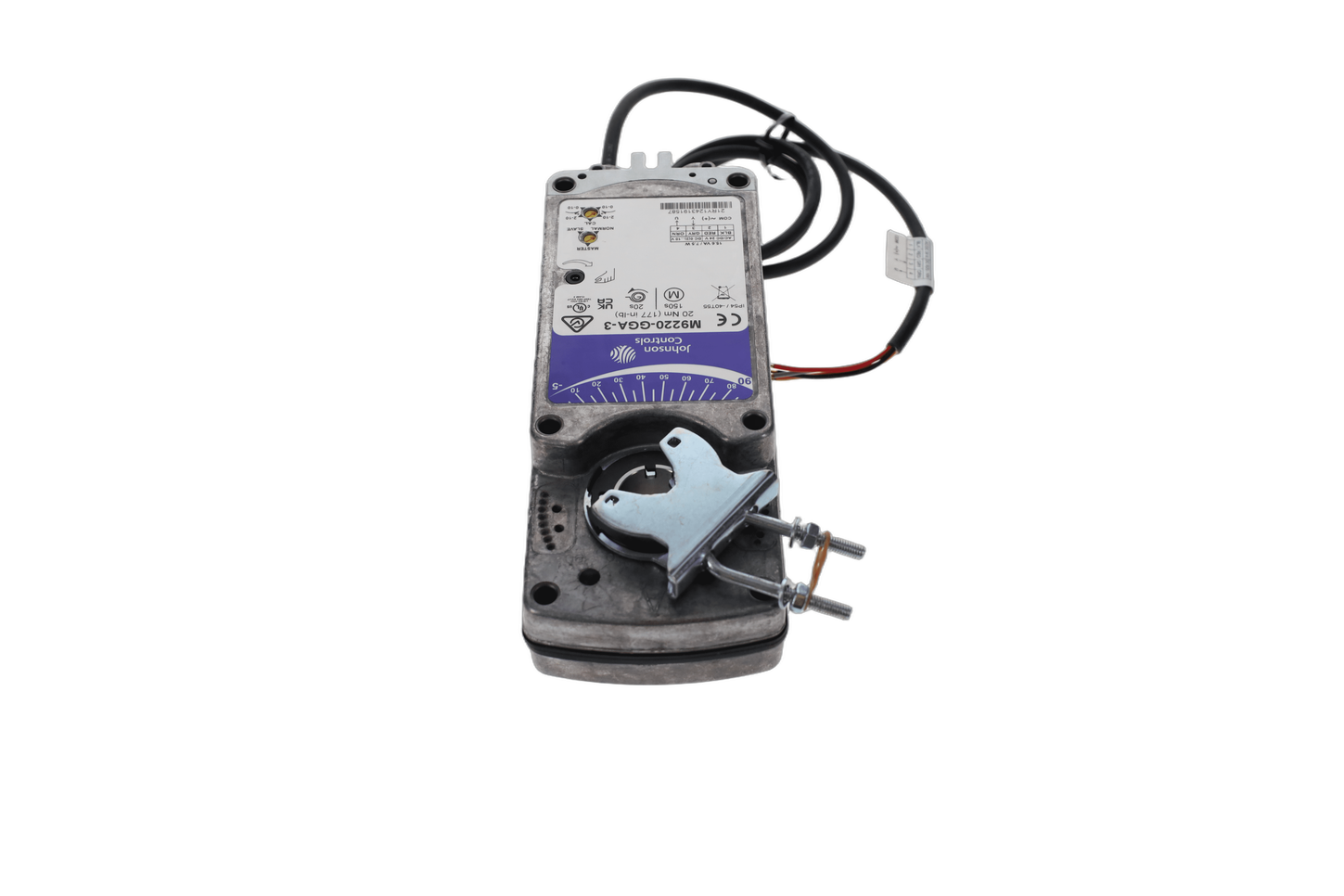

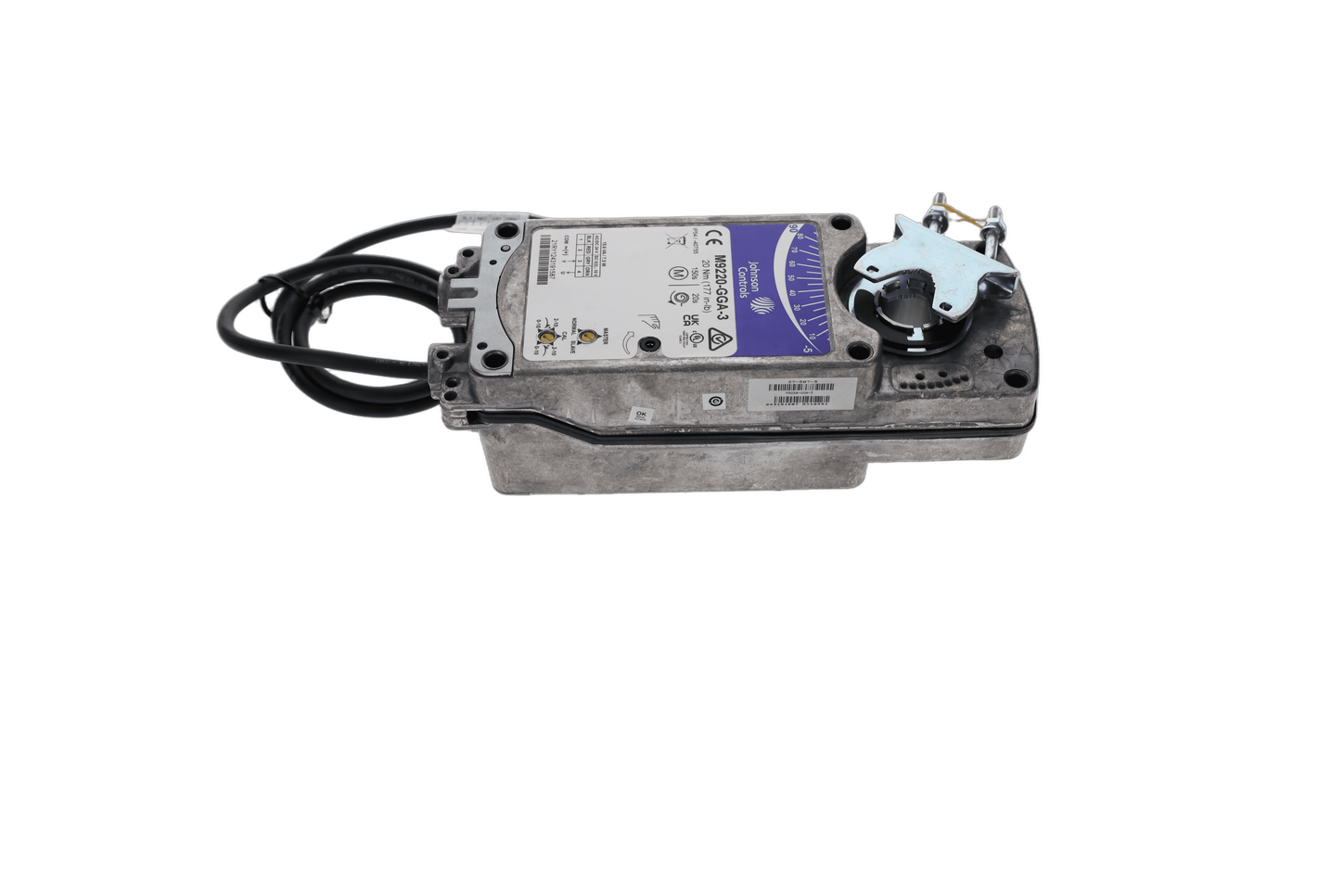

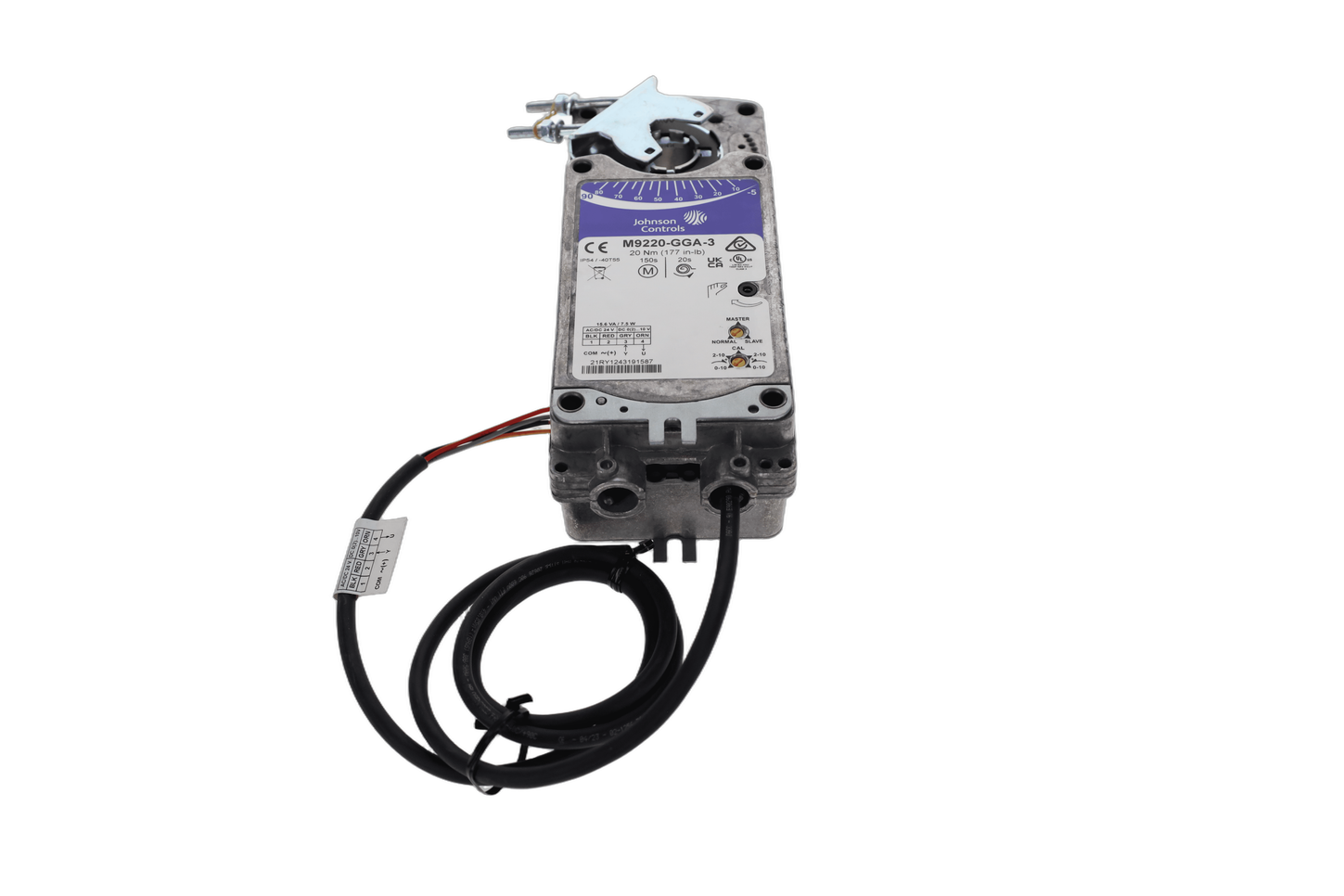

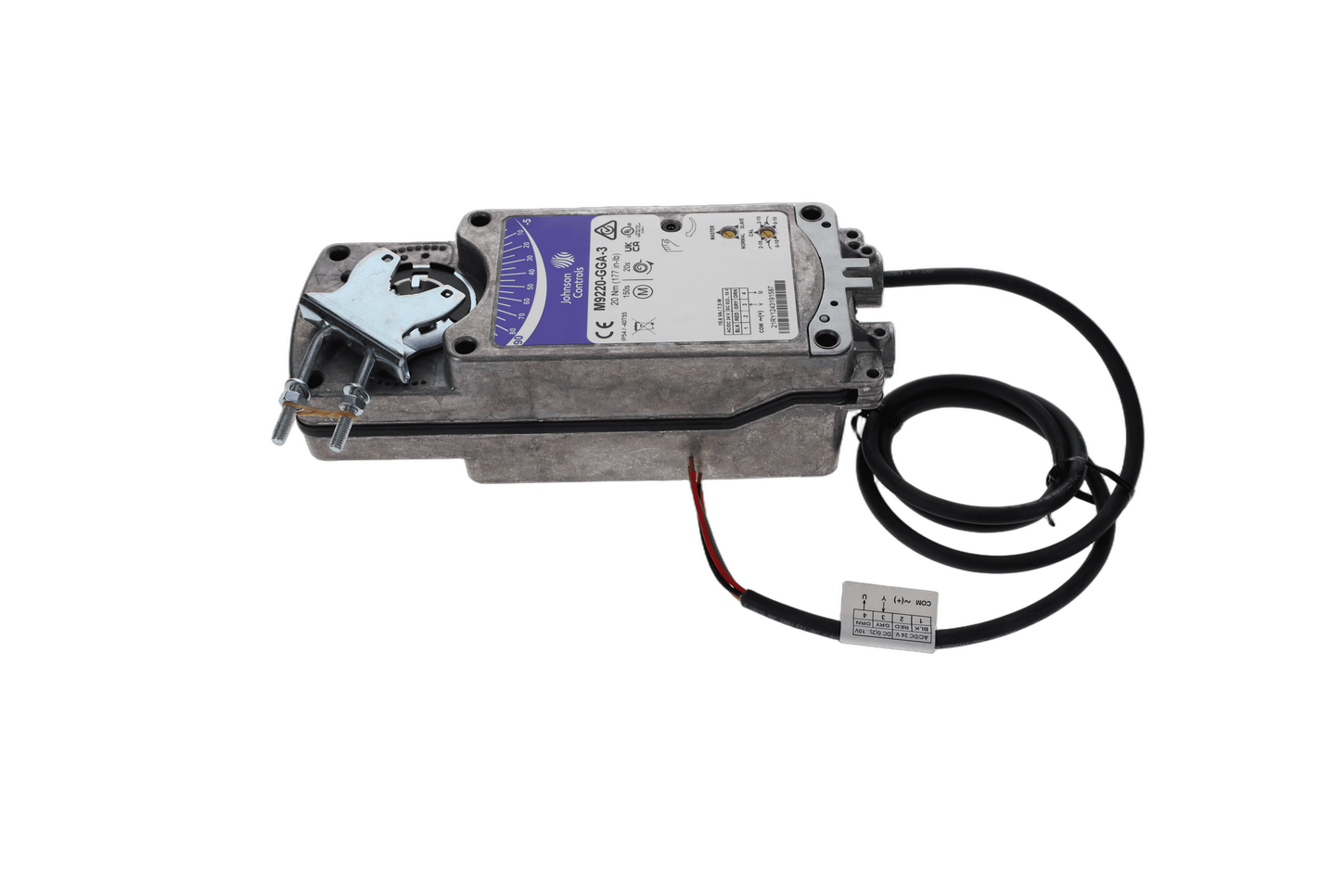

Johnson Controls M9220-GGA-3

DAMPER ACTUATOR 20 NM SR; 20 NM SR DPR ACT 0(2) TO 10 VDC 24 VAC 50/60 HZ 24 VDC

An optional M9220-600 Jackshaft Coupler Kit is available for ¾ to 1-1/16 in. or 19 to 27 mm round shafts, or ⅝ and ¾ in. or 16, 18, and 19 mm square shafts.

The M9220-xxx-3 Electric Spring-Return Actuators provide reliable control of dampers and valves in HVAC systems. The M9220-xxx-3 Actuators are available for use with on/off, floating, and proportional controllers

A single M9220-xxx-3 Electric Spring Return Actuator provides a running and spring return torque of 177 lb·in (20 N·m). Two or three models mounted in tandem deliver twice or triple the torque (354 lb·in [40 N·m] or 531 lb·in [60 N·m]). Integral line voltage auxiliary switches are available on the xxC models to indicate end-stop position, or to perform switching functions within the selected rotation range.

These bidirectional actuators do not require a damper linkage, and are easily installed on dampers with ½ to ¾ in. or 12 to 19 mm round shafts, or ⅜ and ½ in. or 10, 12, and 14 mm square shafts using the standard shaft clamp included with the actuator.

The M9220-xxx-3 Actuators are direct mount, spring return electric actuators that operate on these available power options:

• AC 24 V at 50/60 Hz or DC 24 V (AGx, BGx, GGx, HGx)
• AC 120 V at 60 Hz (BAx)
• AC 230 V at 50/60 Hz (BDx)
