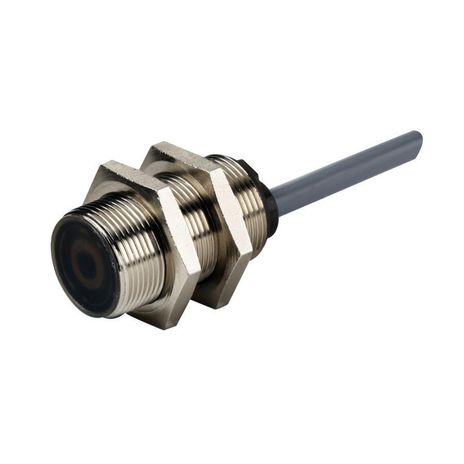

Eaton E57SAL18T111

Name: Eaton E57SAL18T111
Brand: Eaton
SKU: CS753612
Availability: OutOfStock

SKU: CS753612MPN: E57SAL18T111UPC/EAN: 782113384788

Eaton E57 inductive proximity sensor

Eaton E57SAL12A2E, E57SAL12A2EA, E57SAL12A2S5, E57SAL12A2SA, E57SAL12T110, E57SAL12T111SD, E57SAL18A2E, E57SAL18A2EA, E57SAL18A2S4, E57SAL18A2S5, E57SAL18A2SA, E57SAL18T111, E57SAL18T111E5

Product Details

E57 Premium+ Series Short Body Tubular Inductive Proximity Sensor Enclosure, 0.71 dia, dist. 5 mm, PNP Open Collector, NO, 250 mA at 6-48Vdc, 6.6 Ft. (2m) Cable, 6-48 Vdc input, \<1% accuracy, Short circuit protected, Shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 1%
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	PNP open collector, NO
Contact Rating	250 mA at 6-48Vdc
Enclosure Material	Stainless steel
Environmental Rating	IP67, IP69K NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
Input Voltage	6-48 Vdc
Led Indicator	Output status: red
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
