Eaton E57LAL18T110E-Z

Name: Eaton E57LAL18T110E-Z
Brand: Eaton
SKU: CS4873007
Price: 184.11 USD
Availability: OutOfStock

SKU: CS4873007MPN: E57LAL18T110E-ZUPC/EAN: 782113095301

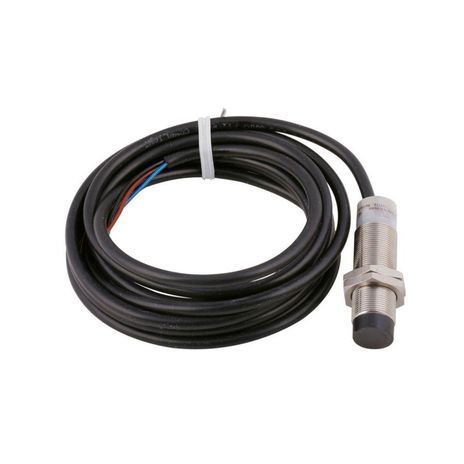

Eaton E57 inductive proximity sensor

Eaton E57LAL18T110E-Z, E57LAL18T110E3, E57LAL18T110E5, E57LAL18T110S3, E57LAL18T110S4, E57LAL18T110S5, E57LAL18T110SP, E57LAL18T110SPY1

Product Details

Eaton E57 Premium+ Series Tubular Inductive Proximity Sensor Enclosure, 0.71 dia, dist. 8 mm, NO NPN Open Collector, 500 mA at 6-30Vdc, 6.6 Ft. (2m) Cable, 6–48 Vdc input, \<3% accuracy, Short circuit protected, Un-shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 3%
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	NO NPN open collector
Contact Rating	500 mA at 6-30Vdc
Enclosure Material	Stainless steel
Environmental Rating	IP67, IP69K, UL Type 1, NEMA 6P, NEMA 4X
Input Voltage	6-48 Vdc
Led Indicator	Output status: red
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
