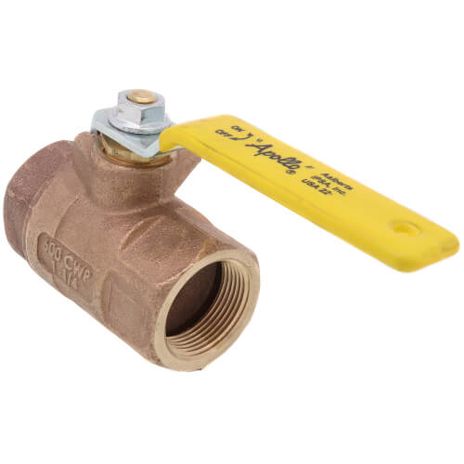

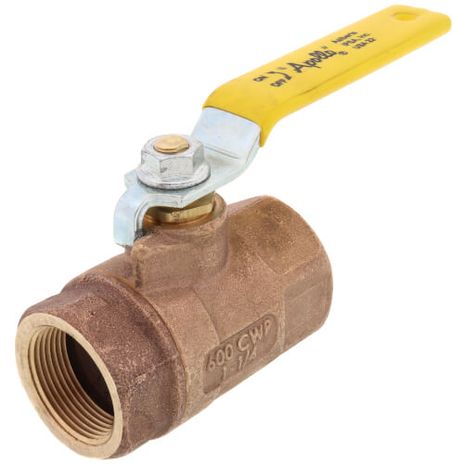

Apollo Valves 7010601

1-¼” Standard Port Threaded Ball Valve (48 Cv)

The Apollo 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port* ball valve featuring female NPT connections. Cast and machined in Apollo’s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Features:

• Premium Materials and Heavy Duty Construction
• Adjustable Stem Packing Gland
• Blow-Out Proof Stem Design
• RPTFE Seats and MPTFE Stem Packing Rings
• Chromium Plated Ball
• 100% Factory Tested

Performance Rating:

• Maximum Pressure: 600 psi CWP, 150 psi SWP
• Maximum Temperature: 500°F
• Vacuum Service to 29 in. Hg

Approvals:

• MSS SP-110; Ball Valves Threaded, Socket-Welding, Solder Joint, Grooved and Flared Ends
• CSA B51 CRN: OC10908.5C
