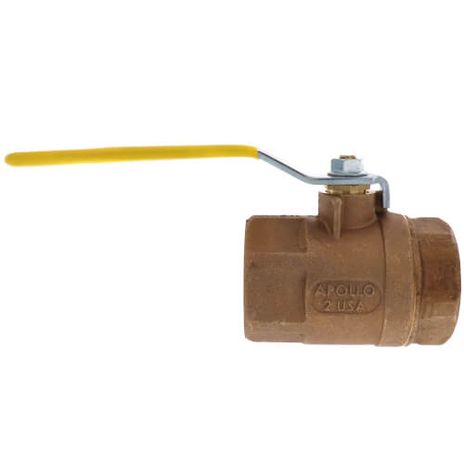

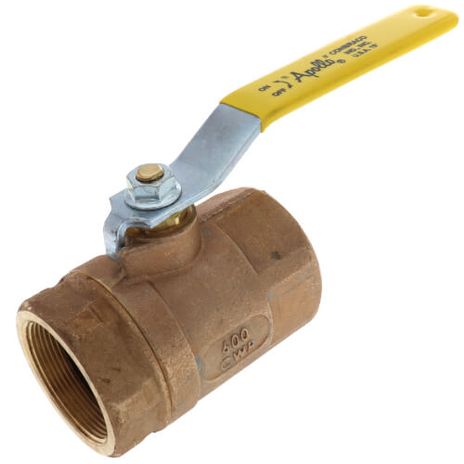

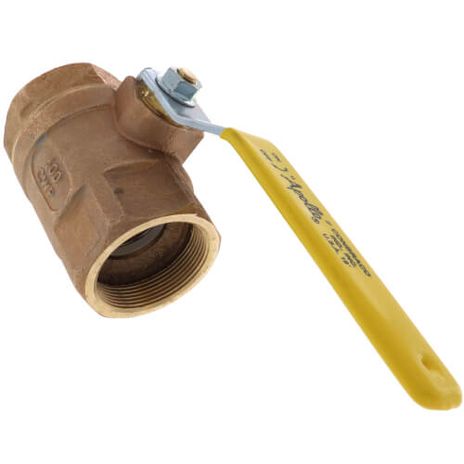

Apollo Valves 7010801

2” Standard Port Threaded Ball Valve (108 Cv)

The Apollo 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port* ball valve featuring female NPT connections. Cast and machined in Apollo’s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Features:

• Premium Materials and Heavy Duty Construction
• Adjustable Stem Packing Gland
• Blow-Out Proof Stem Design
• RPTFE Seats and MPTFE Stem Packing Rings
• Chromium Plated Ball
• 100% Factory Tested

Performance Rating:

• Maximum Pressure: 600 psi CWP, 150 psi SWP
• Maximum Temperature: 500°F
• Vacuum Service to 29 in. Hg

Approvals:

• MSS SP-110; Ball Valves Threaded, Socket-Welding, Solder Joint, Grooved and Flared Ends
• CSA B51 CRN: OC10908.5C
