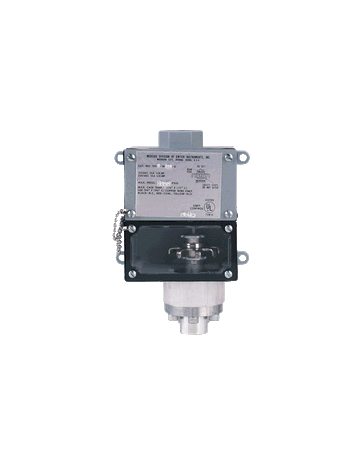

Dwyer 1007W-A1-D
SKU: CS737809MPN: 1007W-A1-DAlternate Part #: 126714-04
1007W-A1-D PRESS SW
$796.82
UnitAvailable on backorder
Product Details
Weatherproof pressure switch, adj. range 75-550 psig (5.2-37.9 bar), approx. deadband (fixed) 30 psig (2.1 bar).
Attributes
| Commodity Code | 8900 |
| Compliance | CE, UL. |
| Conduit Connection | ¾” female NPT. |
| Deadband | See model chart on catalog page. |
| Electrical Connection | Screw type. |
| Electrical Rating | 15 A @ 125/250 VAC resistive. |
| Enclosure Rating | Weatherproof, meets NEMA 4X (IP66). |
| Mounting Orientation | Any position. |
| Pressure Limit | 3000 psig (206.8 bar). |
| Process Connection | ¼” female NPT. |
| Set Point Adjustment | Internal thumbwheel. |
| Switch Type | SPDT snap switch. |
| Wetted Material | See pressure chamber and diaphragm material in model chart. |
Specifications
| SKU | CS737809 |
|---|---|
| MPN | 1007W-A1-D |
| Alternate Part # | 126714-04 |
