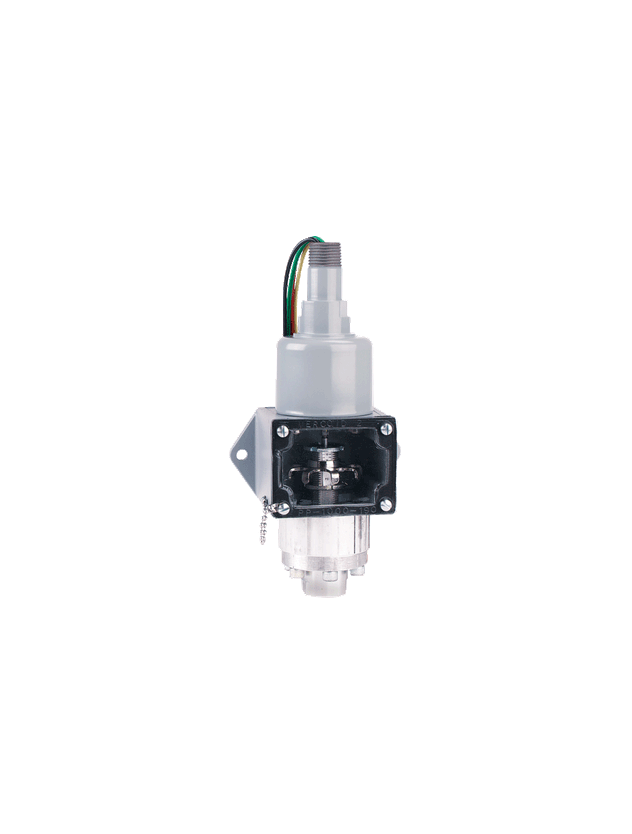

Dwyer 1006W-A1-D
SKU: CS4122706MPN: 1006W-A1-DAlternate Part #: 126714-03
1006W-A1-D PRESS SW
$796.82
UnitAvailable on backorder
Product Details
Weatherproof pressure switch, adj. range 50-350 psig (3.5-24.1 bar), approx. deadband (fixed) 15 psig (1.0 bar).
Attributes
| Commodity Code | 8900 |
| Compliance | CE, UL. |
| Conduit Connection | ¾” female NPT. |
| Deadband | See model chart on catalog page. |
| Electrical Connection | Screw type. |
| Electrical Rating | 15 A @ 125/250 VAC resistive. |
| Enclosure Rating | Weatherproof, meets NEMA 4X (IP66). |
| Mounting Orientation | Any position. |
| Pressure Limit | 3000 psig (206.8 bar). |
| Process Connection | ¼” female NPT. |
| Set Point Adjustment | Internal thumbwheel. |
| Switch Type | SPDT snap switch. |
| Wetted Material | See pressure chamber and diaphragm material in model chart. |
Specifications
| SKU | CS4122706 |
|---|---|
| MPN | 1006W-A1-D |
| Alternate Part # | 126714-03 |
