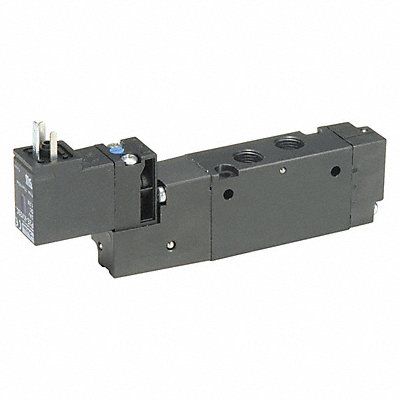

Parker B3G0BB553C

Solenoid Air Control ⅛ 120VAC

Solenoid Air Control Valve Valve Ways and Positions 3-Way/2-Position Voltage 120V AC Valve Actuator / Return Solenoid / Spring Pipe Size ⅛ in Max CFM - Valves 0.75 cfm Operational Pressure Range 20 to 145 psi NEMA Classification NEMA 4 Valve Vacuum Range 0 to 28 in Hg Normally Closed Body Style Body Ported Pilot Port Size ⅛ in NPT Coefficient of Volume 0.75 15mm 3-Pin Male DIN Electrical Connections Ambient Temp Range 5 Degrees to 120 Degrees F Override Non-Locking Flush
