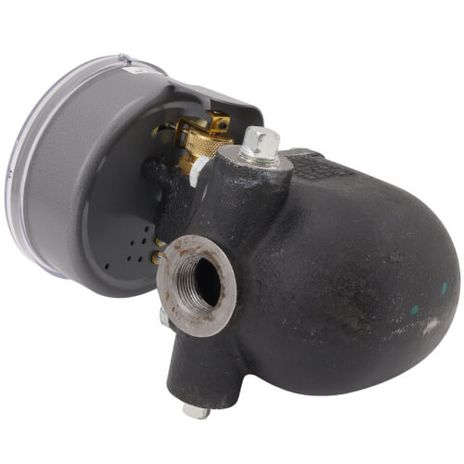

Dwyer 123-7000-153

123-7000-153 SER W/SNAP SW

Water level control, cast iron chamber, SPDT snap switch.

The Series 123 \& 125 Boiler Water Level Controls are designed for boiler applications, the 123 is primarily used for low water cut-off or feed-water control. Other applications include condensate tanks and deaerators. A special snap action switch mechanism eliminates frequent operation due to surging water level. A transparent cover provides convenient visible operation of the switch. Features a flanged chamber for easy clean out and replacement of float or switch mechanism without removing the unit from piping.

Applications:

• Boiler Low Water Cut-Off
• Boiler Feed-Water Control
• Condensate Tanks
• Deaerators

Features:

• Special snap action switch mechanism options eliminates frequent operation due to surging water level
• Transparent cover provides convenient visible operation of the switch
• Flanged chamber for easy clean out and replacement of float or switch mechanism without removing the unit from piping
