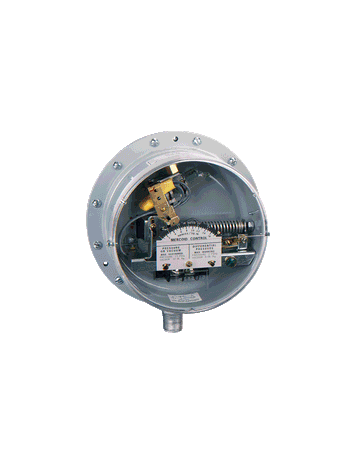

Dwyer PG-7000-153-P2

Name: Dwyer PG-7000-153-P2
Brand: Dwyer
SKU: CS796513
Price: 1006.08 USD
Availability: OutOfStock

SKU: CS796513MPN: PG-7000-153-P2Alternate Part #: 125792-01

PG-7000-153-P2 PRESS SW

$1,006.08

Unit

Available on backorder

Quantity

remove

add

Product Details

Gas pressure/differential pressure switch, range 0.5-5 psid (.03-.345 bar), max. deadband .5 psid (.035 bar), SPDT snap switch.

Commodity Code	8700
Compliance	UL, FM for mercury switch models. UL only on snap switch models.
Conduit Connection	⅞” (22.23 mm) hole for ½” (12.7 mm) conduit hub.
Deadband	See Ordering page.
Electrical Connection	Screw type.
Electrical Rating	See Ordering page.
Enclosure Rating	General purpose. Weatherproof optional.
Mounting Orientation	Vertical.
Pressure Limit	Single Pressure Use on High Side: sustained pressure: 15 psig (1.0 bar); surge limit: 20 psig (1.4 bar). Differential Pressure Use: sustained pressure, range P1: 2 psig (.14 bar); sustained pressure, range P2: 10 psig (0.7 bar).
Process Connection	½” male NPT and ⅛” female NPT used for single positive pressure or high differential pressure, ⅛” female NPT used for single vacuum or low differential pressure.
Repeatability	±1% of full range.
Set Point Adjustment	External screw.
Switch Type	See Ordering page.
Wetted Material	Fairprene, brass, steel, and aluminum.
