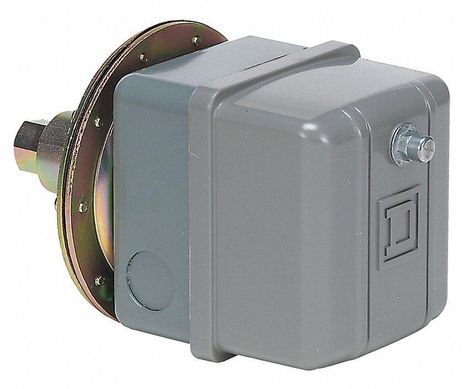

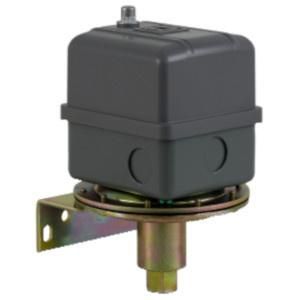

Telemecanique 9016GVG1J09F

Name: Telemecanique 9016GVG1J09F
Brand: Telemecanique
SKU: CS63007
Availability: InStock

SKU: CS63007MPN: 9016GVG1J09FUPC/EAN: 785901569084

Electromechanical vacuum switch, 9016GVG, 9016 g, adjustable scale, 2 thresholds, Set 3 to 8 InHg

1 in stock

Product Details

Vacuum switch 9016G

Vacuum sensor size : 25 inHg
Cut out range : ..25 inHg
Cut-in range : 0...20 inHg
Maximum pressure : 150 psi
Maximum permissible pressure - per cycle : 150 psi
Motor power kW : 3.75 kW 5 hp AC 230 V 3 phases, 3.7 kW 5 hp AC 460 V 1 phase,3.7 kW 5 hp AC 460 V 3 Phases, 3.7 kW 5 hp AC 575 V 1 phase, 3.7 kW 5 hp AC 575 V 3 phases
Contacts type and composition : 2 NC DPST-DB Form YY snap action silver cadmium contacts
Short-circuit protection : 20 A cartridge fuse gG

Sena Ambient Air Temperature For Operation	10-185 °F
Sena Ambient Air Temperature For Operation 1	10-185 °F
Sena Ambient Air Temperature For Storage	10-185 °F
Sena Approx Adjustable Differential At Mid Range	5-10 inHg
Sena Cover Material	polypropylene, noryl thermoplastic resin or equivalent
Sena Cut In Range	0-20 inHg
Sena Cut Out Range	5-25 inHg
Sena Device Application	power circuit application
Sena Device Short Name	9016GVG
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	stamped metal
Sena Factory Modification	with mounting bracket
Sena Local Display	without
Sena Materials In Contact With Fluid	nitrile (Buna-N)# #3M Scotch-Grip 847 rubber and gasket adhesive# #zinc plated steel
Sena Maximum Permissible Pressure Per Cycle	150 psi
Sena Maximum Pressure	150 psi
Sena Mechanical Durability	300 cycles
Sena Operating Position	any position
Sena Product Certifications	UL listed file E12158 CCN NKPZ# #CSA file LR25490
Sena Product Or Component Type	electromechanical vacuum switch
Sena Protective Treatment	none
Sena Range Of Product	9016GVG
Sena Scale Type	adjustable
Sena Setting	internal
Sena Standards	UL 508
Sena Terminal Block Type	8 screw terminals
Sena Vacuum Sensor Size	25 inHg
Sena Vacuum Switch Type Of Operation	regulation between two thresholds
Sena Value Of Setting	3…8 inHg
