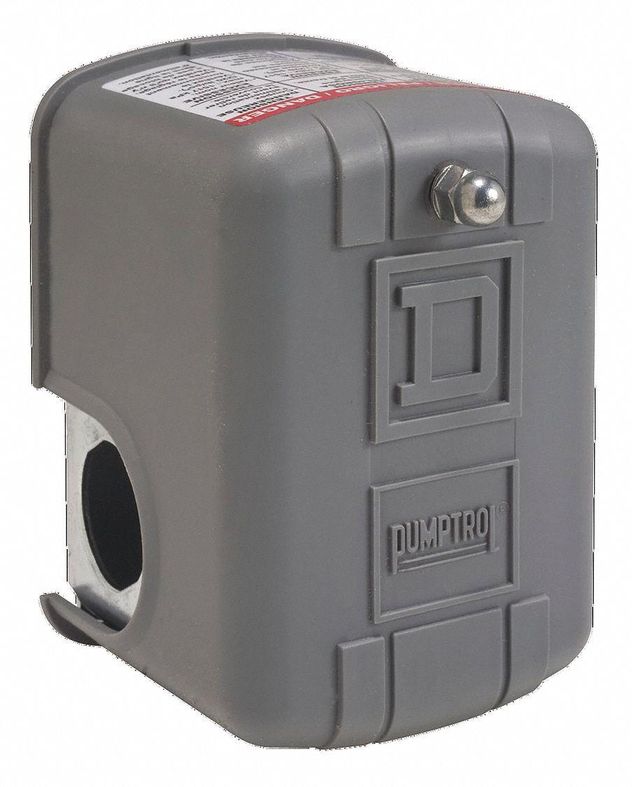

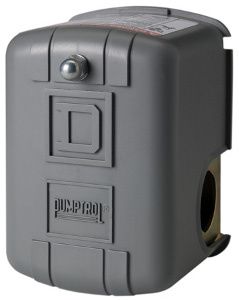

Telemecanique 9013FYW9J99

Name: Telemecanique 9013FYW9J99
Brand: Telemecanique
SKU: CS4810235
Availability: OutOfStock

SKU: CS4810235MPN: 9013FYW9J99

water pump switch 9013FY - adjustable diff. - factory setting

Product Details

Nema Pressure Switches for Water pump switch 9013FY - adjustable diff. - factory setting

Sena Adjustable Range On Rising Pressure	25-80 psi
Sena Ambient Air Temperature For Operation	-33-257 °F
Sena Ambient Air Temperature For Operation 1	-33-257 °F
Sena Ambient Air Temperature For Storage	-33-257 °F
Sena Approximate Adjustable Differential	20-30 psi
Sena Destruction Pressure	220 psi
Sena Electrical Circuit Type	power circuit
Sena Factory Modification	-
Sena Local Display	without
Sena Maximum Operating Rate	10 cyc/mn
Sena Mechanical Durability	300000 cycles
Sena Operating Position	vertical position
Sena Pressure Actuator	diaphragm
Sena Pressure Sensor Name	9013FY
Sena Pressure Sensor Type	electromechanical pressure switch
Sena Pressure Switch Type Of Operation	regulation between 2 thresholds
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Specific Application	control electrically driven water pumps
Sena Protective Treatment	none
Sena Quantity Per Set	1
Sena Range Of Product	Square D Pumptrol
Sena Scale Type	adjustable differential
Sena Setting	internal
Sena Standards	CE# #UL 508# #NSF ANSI 61 Annex G
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	L1-T1# #L2-T2
Sena Type Of Packing	individual
Sena Value Of Setting	specify pressure settings
