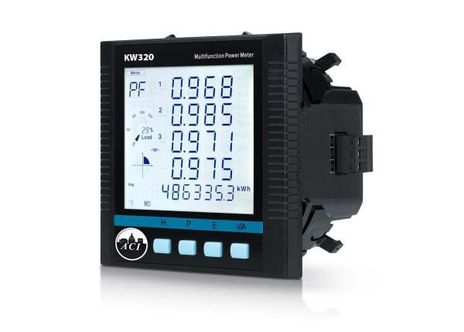

ACI KW320B-P1-D-IP

Name: ACI KW320B-P1-D-IP
Brand: ACI
SKU: CS6291130
Availability: OutOfStock

SKU: CS6291130MPN: KW320B-P1-D-IPAlternate Part #: 151262

Power Meter, Bi-Directional, 3 Circuit, ANSI 0.1 Class Accuracy, Ethernet Communication, BACnet IP Only, LCD Display, No I/O Options

Product Details

Power Meter, Bi-Directional, 3 Circuit, ANSI 0.1 Class Accuracy, Ethernet Communication, BACnet IP Only, LCD Display, No I/O Options

Product Family Specifications

Power	100 - 415Vac, 50/60Hz, 100 - 300Vdc on terminals L and N
Burden	5W
Mounting	ANSI C39.1 (4” Round) or an IEC 92mm DIN (Square) form
Wire Size	14-22 AWG (2.5 to 0.34 mm2)
LCD Display	Multiple Display Modes (Important Parameter’s, All Parameter’s, Settings Display Modes)
Service Type	Single Phase, 3 Phase – Four Wire (WYE), Three Phase – Three Wire (Delta)
Rated Voltage	100-400VAC Line to Neutral (L-N) or 100-690VAC Line to Line (L-L) RMS for three phase or 100-400VAC RMS for single phase; 100-300 VDC
Line Frequency	50/60 Hz
Pickup Voltage	10VAC
Product Weight	0.77 lbs. (350g)
Input Impedance	2M ohm per Phase
Agency Approvals	BTL Certified, CE, RoHS2, cULus Listed (File # E359521)
Current Channels	3 Channels, 0.525 VAC max, 333 mV CT’s or 0 to 6000 Amps with Rogowski Coils
Measurement Type	Real-time, True RMS measurement of instantaneous Voltage, Current, Power, Frequency, Harmonics, Phase Angle, Demand, Unbalance Factor, Running Time, and Power Factor
Utility Software	Acuview Utility Software, Windows Based;
Voltage Channels	400 Volts AC (L-N), 690 VAC (L-L), 45Hz - 65Hz, 300Hz - 500Hz
Withstand Voltage	1500VAC Continuous, 2500Vac, 50/60Hz for 1 Minute
AC Fuse Protection	External 1A/250VAC Fuse (Recommended)
Wiring Connections	Screw Connections
Harmonic Resolution	63^rd Harmonic (50Hz or 60Hz type) or 15^th Harmonic (400Hz type)
Number of CT Inputs	3
Power Supply Wiring	AWG22-16 (0.6-1.5mm2)
Standard Compliance	Measurement Standard: IEC 62053-22; ANSI C12.20 Environmental Standard: IEC 60068-2 Safety Standard: IEC 61010-1, UL 61010-1, IEC 61557-12 EMC Standard: IEC 61000-4/-2-3-4-5-6-8-11, CISPR 22, IEC 61000-3-2, IEC 61000-6-2/4 Outlines Standard: DIN 43700, ANSI C39.1
Maximum Current Input	150% of current sensor rating (mV CT’s) to maintain accuracy. Up to 6000 Amps w/ Rogowski Coils
Communication Protocol	Ethernet: BACnet Over IP Only
Revenue Grade Accuracy	Active Energy: Class 0.2s (According to IEC 62053-22) and Class 0.2s (According to ANSI C12.20) Reactive Energy: Class 2 (According to IEC 62053-23) – See Table 2 for parameter accuracy, resolution, and range
Storage Temperature Range	-40 to 185oF (-40 to 85oC)
Face Dimensions (L x W x H)	3.80” (96 mm) x 3.80” (96 mm) x 1.99” (50.7 mm)
Operating Temperature Range	-13 to 158oF (-25 to 70oC)
Real Time Parameter Update Rate	100 mS
Operating/Storage Humidity Range	5 to 95%, non-condensing
Accumulated Parameter Update Rate	1 Sec
Enclosure Material \| Flammability Rating	Polycarbonate / UL 94V-0
