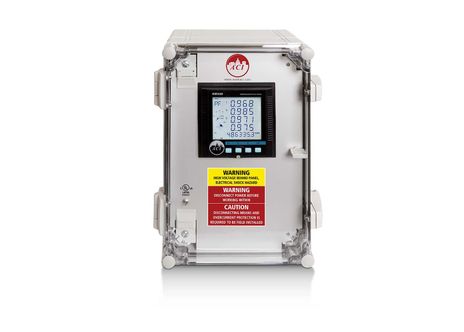

ACI KW320Q-P1-D-W-PC

Name: ACI KW320Q-P1-D-W-PC
Brand: ACI
SKU: CS6291008
Availability: OutOfStock

SKU: CS6291008MPN: KW320Q-P1-D-W-PCAlternate Part #: 150987

Panel Upgrade, same as KW320Q-P1-D-W-XX installed in NEMA 4X Enclosure w/ labeled and prewired supply voltage and CT connections

Product Details

Panel Upgrade, same as KW320Q-P1-D-W-XX installed in NEMA 4X Enclosure w/ labeled and prewired supply voltage and CT connections

Product Configuration

Series	Power Quality Meter (w/ WF)
Mounting	Panel Upgrade w/Encl.

Product Family Specifications

Fuse	600 VAC/1A
Power	100 - 415VAC, 50/60Hz, 100 - 300VDC on terminals L and N
Burden	5W
Wiring	Two pluggable pre-cut holes to feed wiring, fused terminal blocks for voltage connections pre-installed, color-coded and labelled
Mounting	ANSI C39.1 (4” Round) or an IEC 92mm DIN (Square) form
Wire Size	14-22 AWG (2.5 to 0.34 mm2
LCD Display	Multiple Display Modes (Important Parameter’s, All Parameter’s, Settings Display Modes)
Max Station	127 MS/TP Masters (MAC Addresses is 0 to 127)
NEMA Rating	NEMA 4X
Service Type	Single Phase, 3 Phase – Four Wire (WYE), Three Phase – Three Wire (Delta)
Rated Voltage	100-400VAC Line to Neutral (L-N) or 100-690VAC Line to Line (L-L) RMS for three phase or 100-400VAC RMS for single phase
Line Frequency	50/60 Hz
Pickup Voltage	10VAC
Product Weight	0.77 lbs. (350g)
Input Impedance	2M ohm per Phase
Agency Approvals	BTL Certified, CE, RoHS2, cULus Listed (File # E359521)
Current Channels	4 Channels, 0.400 VAC max, 333 mV CTs or 0 to 6000 Amps with Rogowski Coils
Maximum Distance	1200 meters (3,937 Feet) with data range of 100K bits/second or less
Measurement Type	Real-time, True RMS measurement of instantaneous Voltage, Current, Power, Frequency, Harmonics, Phase Angle, Demand, Unbalance Factor, Running Time, and Power Factor
Utility Software	Acuview Utility Software, Windows Based;
Voltage Channels	400 Volts AC (L-N), 690 VAC (L-L), 45Hz - 65Hz, 300Hz - 500Hz
Withstand Voltage	3250VAC, 50/60Hz for 1 minute
AC Fuse Protection	External 1A/250VAC Fuse (Recommended)
Enclosure Material	Polycarbonate
Wiring Connections	Screw Connections
Datalogging Storage	8 GB
Flammability Rating	94-V0
Harmonic Resolution	63^rd Harmonic (50Hz or 60Hz type) or 15^th Harmonic (400Hz type)
Number of CT Inputs	4 (L1, L2, L3, and Neutral)
Power Supply Wiring	AWG22-16 (0.6-1.5mm2)
Standard Compliance	Measurement Standard: IEC 62053-22; ANSI C12.20 Environmental Standard: IEC 60068-2 Safety Standard: IEC 61010-1, UL 61010-1, IEC 61557-12 EMC Standard: IEC 61000-4/-2-3-4-5-6-8-11, CISPR 22, IEC 61000-3-2, IEC 61000-6-2/4 Outlines Standard: DIN 43700, ANSI C39.1
Supported Baud Rates	BACnet MS/TP Protocol: 9600, 19200, 38400, 76800 Baud Rate (38400 BACnet Default) Modbus RTU Protocol: 1200, 2400, 4800, 9600, 19200, 38400 Baud Rate (19200 Modbus Default)
Termination Resistor	120 Ohm to 300 Ohm ¼W Resistor (Not Included); (Installed at end of RS-485 Comm Bus)
Maximum Current Input	120% of current sensor rating (mV CTs) to maintain accuracy. Up to 6000 Amps w/ Rogowski Coils
Revenue Grade Accuracy	Active Energy - Class 0.1s (According to IEC 62053-22) and Class 0.1s (According to ANSI C12.20) Reactive Energy - Class 2 (According to IEC 62053-23) – See Table 2 of data sheet for parameter accuracy, resolution, and range
Communication Protocols	Serial RS-485: Modbus RTU and BACnet MS/TP Ethernet: BACnet™ Over IP, IEC 61850, Modbus®-TCP, HTTP/HTTPs Webserver, SMTP Email, SNMP, HTTP/HTTPs Push, FTP Post, sFTP Server, WiFi
Enclosure Product Weight	8 lbs. (3.63 kg)
Operating Humidity Range	5 to 95%, non-condensing
Storage Temperature Range	-40 to 185oF (-40 to 85oC)
Face Dimensions (L x W x H)	3.80” (96 mm) x 3.80” (96 mm) x 1.99” (50.7 mm)
Operating Temperature Range	-13 to 158oF (-25 to 70ºC)
BACnet Device Instance Number	1 (Default); Field adjustable from 1 to 4194302
Real Time Parameter Update Rate	100 mS
Enclosure Dimensions (L x W x H)	7.88” (200 mm) x 11.81” (300 mm) x 7.34” (186.5 mm)
Accumulated Parameter Update Rate	1 Sec
Modbus Data Bits / Parity / Stop Bit	8 / None, Even, Odd / 2, 1
Enclosure Material \| Flammability Rating	Polycarbonate / UL 94V-0
