ACI Q4C-II-X

Name: ACI Q4C-II-X
Brand: ACI
SKU: CS6290966
Availability: OutOfStock

SKU: CS6290966MPN: Q4C-II-XAlternate Part #: 150796

Controller, 4 digital sensors, LCD, 4 SPDT relays, M-View software

Product Details

Controller, 4 digital sensors, LCD, 4 SPDT relays, M-View software

Input	RS-485 digital port for up to 4 QEL transmitter/sensors \| USB programming port
Keypad	4X tactile and audible keypad
LCD Display	128 x 32 LCD Display c/w Backlight
Time Delays	0 – 60 Minutes On/Off delays
Horn \& Strobe	Two (2) 24VDC transistor ports 250mA max (Fuse protected) each
Product Weight	1.87 lbs (4.12 kg)
Supply Current	0.75 max (Fuse protected)
Supply Voltage	18 – 30VDC, 24 VDC Nominal, 12 – 24VAC, 24VAC Nominal \| Half-wave or Full wave rectified
Relay Assignment	Independent, individually set to one or all transmitter/sensors
Recommended Cable	Power: Twisted shielded pair Communication: (RS-485) - Belden 9841 or equivalent
Enclosure Material	ABS Plastic

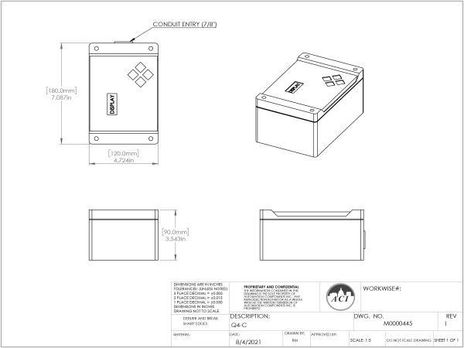

Product Dimensions	7.09” (180.00 mm) x 4.72” (120.00 mm) x 3.54” (90.00 mm)
Enclosure Protection	IP66 \& NEMA 4, 4X, 12 \& 13 ratings \| UL listed 508 listed (File # E65324)
Operating Environment	Indoor Environment only
Operating Humidity Range	Continuous 5 to 95% RH, non-condensing up to 31 C, decreasing linearly to 80% @ 40C
Operating Temperature Range	Industrial: -20° to +50° C (-4° to 122° F)
