ACI A/TT100-LT-I-6"-4-BB

Name: ACI A/TT100-LT-I-6"-4-BB
Brand: ACI
SKU: CS6290926
Availability: OutOfStock

SKU: CS6290926MPN: A/TT100-LT-I-6"-4-BBAlternate Part #: 149798

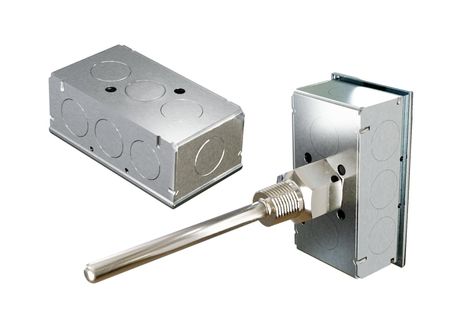

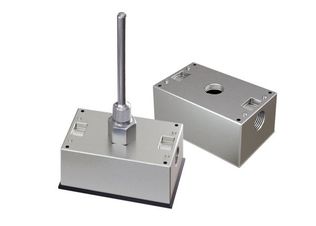

Transmitter w/ 100 Ohm RTD, Low Temperature Immersion, Welded Well, 6”, NEMA 3R Enclosure, 4-20mA Output

ACI A/TT100-HT-I-2.5"-4-GD, A/TT100-HT-I-4"-1-GD, A/TT100-HT-I-4"-4-GD, A/TT100-HT-I-6"-4-GD, A/TT100-LT-I-2.5"-4-BB, A/TT100-LT-I-4"-4-GD, A/TT100-LT-I-6"-4-BB, A/TT1K-HT-I-2.5"-1-GD, A/TT1K-HT-I-2.5"-2-GD, A/TT1K-HT-I-2.5"-4-GD, A/TT1K-HT-I-4"-1-GD, A/TT1K-HT-I-4"-2-GD, A/TT1K-HT-I-4"-4-GD, A/TT1K-HT-I-6"-2-GD, A/TT1K-LT-I-2.5"-1-BB

Product Details

Transmitter w/ 100 Ohm RTD, Low Temperature Immersion, Welded Well, 6”, NEMA 3R Enclosure, 4-20mA Output

Product Configuration

Length	6”
Sensor	TT100-LT (XMTR, 100Ω Low Temp)
Temperature Series	Low Temperature Transmitters

Product Family Specifications

Stability	\< 0.04 % at 1000 hours at 400ºC
Sensor Type	Platinum RTD
Number Wires	A/100-3W-LT-I-XX” and A/1K-3W-LT-I-xx”: Three (White / Two Red) Polarity Sensitive)
Sensor Curve	PTC (Positive Temperature Coefficient)
Thermal Drift	Temp. Spans \< 100ºF (38ºC): +/- 0.04%/ºF Temp. Spans > 100ºF (38ºC): +/- 0.02%
Output Signals	Current: 4-20 mA (2-Wire Loop Powered) Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Probe Diameter	0.250” (6.35mm)
Agency Approvals	RoHS2, WEEE
Number Sensing Points	One
Connections \| Wire Size	Screw Terminal Blocks (Non-Polarity Sensitive) \| 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance	(Terminal Voltage - 8.5 V) \| 0.020 A
Operating Humidity Range	10 to 95% RH, non-condensing
Min/Max Temperature Spans	Minimum Temp. Span: 50ºF (28ºC) \| Maximum Temp. Span: 700ºF (370ºC) Transmitter’s calibrated at 71°F (22°C) nominal
Storage Temperature Range	-40 to 85ºC (-40 to 185ºF)
Operating Temperature Range	-198 to 150ºC (-324 to 302ºF)
Sensor Tolerance \| Accuracy	+/- 0.12% Class B \| Class B Tolerance Formula: +/- ºC \= (0.30ºC + (0.005 * \|t\|)) Where \|t\| is the absolute value of temperature above or below 0ºC in Centigrade
Compression Fitting Material	316 Stainless Steel
Lead Length \| Conductor Size	8’ (2.44 m) \| 22 AWG (0.25 mm2)
Sensor Output @ 0ºC (32ºF)	A/100-3W-LT-I-xx”: 100 Ohms nominal A/1K-3W-LT-I-xx”: 1000 Ohms nominal
Terminal Block Torque Rating	0.5 Nm nominal
Warm Up Time \| Warm Up Drift	10 Minutes \| +/- 0.1%
Calibrated Accuracy \| Linearity	Temp. Spans \< 500ºF (260ºC): +/- 0.2% \| Temp. Spans > 500ºF (260ºC): +/- 0.5%
Lead Wire Insulation \| Wire Rating	Etched Teflon (PTFE) \| Silver Plated Copper
Din Standard \| Temperature Coeffcient	DIN EN 60751 (IEC 751) \| 3850 ppm / ºC
Self-Heating \| Maximum Operating Current	100 Ohm RTD: 7 mW/ºC (Still Air) \| 5 mA \| 1K Ohm RTD: 4 mW/°C (Still Air) \| 3 mA
Transmitter Supply Voltage \| Supply Current	+8.5 to 32 VDC (Reverse Polarity Protected) \| 25 mA minimum 250 Ohm Load: +13.5 to 32 VDC 500 Ohm Load: +18.5 to 32 VDC
