ACI A/TT100-HT-I-4"-4-BB

SKU: CS6286855MPN: A/TT100-HT-I-4"-4-BBAlternate Part #: 128808

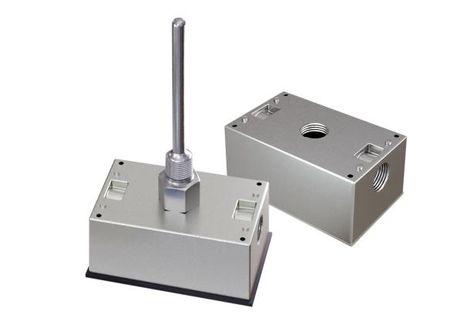

Transmitter w/ 100 Ohm RTD, High Temperature Immersion, Welded Well, 4”, NEMA 3R Enclosure, 4-20mA Output

ACI A/TT100-HT-I-4"-4-BB
Contact us for pricing and availability

Product Details

Transmitter w/ 100 Ohm RTD, High Temperature Immersion, Welded Well, 4”, NEMA 3R Enclosure, 4-20mA Output

Product Configuration

Length 4”
Sensor TT100-HT (XMTR, 100Ω High Temp)
Enclosure Aluminum, NEMA 3R
Thermowell Type 2 Part Fabricated
Temperature Series High Temperature Transmitters

Product Family Specifications

Stability \< 0.04 % at 1000 hours at 400ºC
Sensor Type Platinum RTD
Number Wires A/100-3W-HT-D-XX” and A/1K-3W-HT-D-xx”: Three (White / Two Red) Polarity Sensitive)
Sensor Curve PTC (Positive Temperature Coefficient)
Thermal Drift Temp. Spans \< 100ºF (38ºC): +/- 0.04%/ºF | Temp. Spans > 100ºF (38ºC): +/- 0.02%
Output Signals Current: 4-20 mA (2-Wire Loop Powered) Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Probe Diameter 0.250” (6.35mm)
Probe Material 316 Stainless Steel
Agency Approvals RoHS2, WEEE
Number Sensing Points One
Connections | Wire Size Screw Terminal Blocks (Non-Polarity Sensitive) | 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance (Terminal Voltage - 8.5 V) | 0.020 A
Operating Humidity Range 10 to 90% RH, non-condensing
Min/Max Temperature Spans Minimum Temp. Span: 50ºF (28ºC) Maximum Temp. Span: 800ºF (426ºC)
Storage Temperature Range -40 to 85ºC (-40 to 185ºF)
Operating Temperature Range -40 to 395ºC (-40 to 743ºF)
Sensor Tolerance | Accuracy +/- 0.12% Class B | Class B Tolerance Formula: +/- ºC \= (0.30ºC + (0.005 * |t|)) Where |t| is the absolute value of temperature above or below 0ºC in Centigrade
Compression Fitting Material 316 Stainless Steel
Lead Length | Conductor Size 8’ (2.44 m) | 24 AWG (0.20 mm2)
Sensor Output @ 0ºC (32ºF) A/100-3W-HT-D-xx”: 100 Ohms nominal A/1K-3W-HT-D-xx”: 1000 Ohms nominal
Terminal Block Torque Rating 0.5 Nm nominal
Warm Up Time | Warm Up Drift 10 Minutes | +/- 0.1%
Calibrated Accuracy | Linearity Temp. Spans \< 500ºF (260ºC): +/- 0.2% | Temp. Spans > 500ºF (260ºC): +/- 0.5%
Lead Wire Insulation | Wire Rating Fiberglass Braided Insulation with Mica Tape | 27% Nickel Plated Copper
Thermowell Material | Bore Diameter 304 Series Stainless Steel | 0.260”
Din Standard | Temperature Coeffcient DIN EN 60751 (IEC 751) | 3850 ppm / ºC
Self-Heating | Maximum Operating Current 100 Ohm RTD: 7 mW/ºC (Still Air) | 5 mA | 1K Ohm RTD: 4 mW/°C (Still Air) | 3 mA
Transmitter Supply Voltage | Supply Current +8.5 to 32 VDC (Reverse Polarity Protected) | 25 mA minimum 250 Ohm Load: +13.5 to 32 VDC 500 Ohm Load: +18.5 to 32 VDC
Thermowell Instrument Thread | Process Thread ½” NPS (National Pipe Straight – Female) | ½” NPT (National Pipe Tapered – Male)

Specifications

SKUCS6286855
MPNA/TT100-HT-I-4"-4-BB
Alternate Part #128808
