ACI ACUCT-3135R-1000:333

Name: ACI ACUCT-3135R-1000:333
Brand: ACI
SKU: CS6290416
Availability: OutOfStock

SKU: CS6290416MPN: ACUCT-3135R-1000:333Alternate Part #: 148234

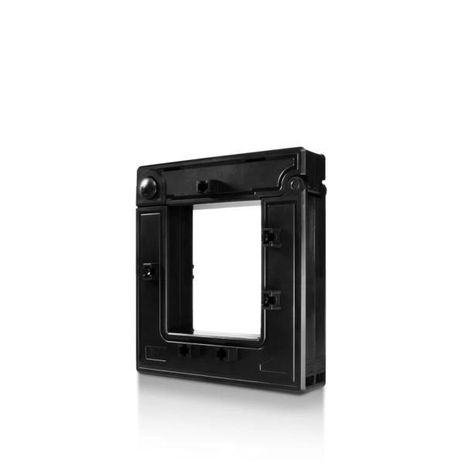

Current Transformer, 1000A, High Accuracy, Split Core, 3.1” x 3.5” Aperture, 333mV Output, 2.5m Leads

Product Details

Current Transformer, 1000A, High Accuracy, Split Core, 3.1” x 3.5” Aperture, 333mV Output, 2.5m Leads

Product Configuration

Amperage Range	0 to 1000 Amps
Aperture Size Diameter	3.15” (80 mm)

Product Family Specifications

Accuracy	0.5s Class IEC 60044-1
Wire Size	22 AWG (0.32 mm2 ), UL 1015
Core Style	Hinged Split-Core
Lead Length	8 ft (2.5m)
Rated Output	333mV @ 50/100/150/200/250/300/400/600/800/1000/2000/4000 Amps (see ordering grid)
Product Weight	AcuCT-075R - 0.4lbs (0.18kg) AcuCT-100R - 0.4lbs (0.18kg) AcuCT-125R - 0.4lbs (0.18kg) AcuCT-200R - 1.2lbs (0.54kg) AcuCT-3135R - 3.0lbs (1.36kg) AcuCT-4161R – 5.8lbs (2.63kg) AcuCT-5170R – 6.3lbs (2.85kg)
Agency Approvals	UL2808, 61010-1 and CSA 22.2
Lead Wire Colors	White \= Positive (+) Black \= Negative (-)
Maximum Elevation	9,842 ft (3 Kilometers)
Withstand Voltage	5,000VAC
Maximum AC Voltage	600 VAC, Category III
Product Dimensions	AcuCT-075R - 2.3” (58.00 mm) x 2.3” (58.00 mm) x 0.9” (22.00 mm) AcuCT-100R - 2.6” (65.00 mm) x 2.6” (65.00 mm) x 0.9” (22.00 mm) AcuCT-125R - 3.2” (82.00 mm) x 3.2” (82.00 mm) x 0.9” (22.00 mm) AcuCT-200R - 4.4” (111.00 mm) x 4.4” (111.00 mm) x 1.25” (32.00 mm) AcuCT-3135R - 5.7” (144.00 mm) x 6.1” (154.00 mm) x 1.25” (32.00 mm) AcuCT-4161R – 7.3” (185.00 mm) x 9.3” (235.00 mm) x 1.8” (45.00 mm) AcuCT-5170R – 8.3” (210.00 mm) x 10.2” (260.00 mm) x 1.8” (45.00 mm)
Wiring Connections	Stripped and Tinned Lead Wires
Monitored Current Type	AC Current
Operating Frequency Range	50/60 Hz
Storage Temperature Range	-40 to 185oF (-40 to 85oC)
Operating Temperature Range	5 to 149oF (-15 to 60oC)
Operating/Storage Humidity Range	5 to 95%, non-condensing
Enclosure Material \| Flammability Rating	Square Pressed / UL 94V-0
