ACI ACUCT-100R-100:333

SKU: CS6290403MPN: ACUCT-100R-100:333Alternate Part #: 148216

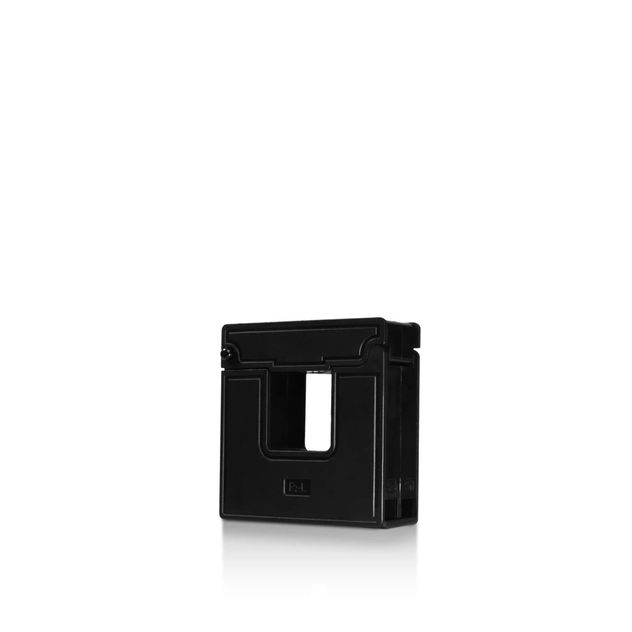

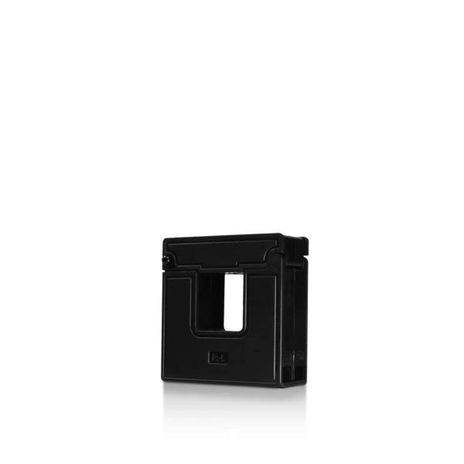

Current Transformer, 100A, High Accuracy, Split Core, 1.0” Aperture, 333mV Output, 2.5m Leads

ACI ACUCT-075R-50:333, ACUCT-100R-100:333
ACI ACUCT-100R-100:333, ACUCT-100R-200:333
ACI ACUCT-075R-50:333, ACUCT-100R-100:333
ACI ACUCT-100R-100:333, ACUCT-100R-200:333
Contact us for pricing and availability

Product Details

Current Transformer, 100A, High Accuracy, Split Core, 1.0” Aperture, 333mV Output, 2.5m Leads

Product Configuration

Amperage Range 0 to 100 Amps
Aperture Size Diameter 0.98” (25 mm)

Product Family Specifications

Accuracy 0.5s Class IEC 60044-1
Wire Size 22 AWG (0.32 mm2 ), UL 1015
Core Style Hinged Split-Core
Lead Length 8 ft (2.5m)
Rated Output 333mV @ 50/100/150/200/250/300/400/600/800/1000/2000/4000 Amps (see ordering grid)
Product Weight AcuCT-075R - 0.4lbs (0.18kg) AcuCT-100R - 0.4lbs (0.18kg) AcuCT-125R - 0.4lbs (0.18kg) AcuCT-200R - 1.2lbs (0.54kg) AcuCT-3135R - 3.0lbs (1.36kg) AcuCT-4161R – 5.8lbs (2.63kg) AcuCT-5170R – 6.3lbs (2.85kg)
Agency Approvals UL2808, 61010-1 and CSA 22.2
Lead Wire Colors White \= Positive (+) Black \= Negative (-)
Maximum Elevation 9,842 ft (3 Kilometers)
Withstand Voltage 5,000VAC
Maximum AC Voltage 600 VAC, Category III

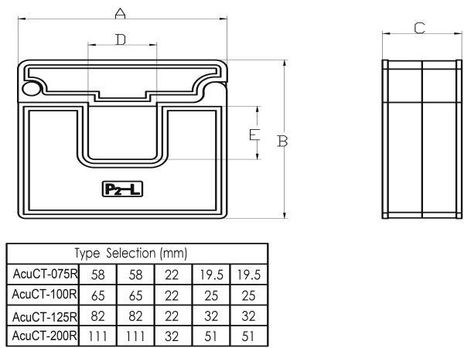

Product Dimensions AcuCT-075R - 2.3” (58.00 mm) x 2.3” (58.00 mm) x 0.9” (22.00 mm) AcuCT-100R - 2.6” (65.00 mm) x 2.6” (65.00 mm) x 0.9” (22.00 mm) AcuCT-125R - 3.2” (82.00 mm) x 3.2” (82.00 mm) x 0.9” (22.00 mm) AcuCT-200R - 4.4” (111.00 mm) x 4.4” (111.00 mm) x 1.25” (32.00 mm) AcuCT-3135R - 5.7” (144.00 mm) x 6.1” (154.00 mm) x 1.25” (32.00 mm) AcuCT-4161R – 7.3” (185.00 mm) x 9.3” (235.00 mm) x 1.8” (45.00 mm) AcuCT-5170R – 8.3” (210.00 mm) x 10.2” (260.00 mm) x 1.8” (45.00 mm)
Wiring Connections Stripped and Tinned Lead Wires
Monitored Current Type AC Current
Operating Frequency Range 50/60 Hz
Storage Temperature Range -40 to 185oF (-40 to 85oC)
Operating Temperature Range 5 to 149oF (-15 to 60oC)
Operating/Storage Humidity Range 5 to 95%, non-condensing
Enclosure Material | Flammability Rating Square Pressed / UL 94V-0

Specifications

SKUCS6290403
MPNACUCT-100R-100:333
Alternate Part #148216
