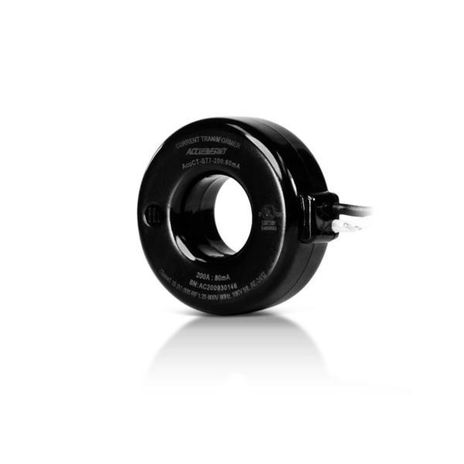

ACI ACUCT-S77-200:333
SKU: CS6290398MPN: ACUCT-S77-200:333Alternate Part #: 148210
Current Transformer, 200A, Solid Core, Measure Canada Approved, 0.77” Aperture, 333mV Output, 1ft Leads
$49.92
UnitAvailable on backorder
Product Details
Current Transformer, 200A, Solid Core, Measure Canada Approved, 0.77” Aperture, 333mV Output, 1ft Leads
Product Configuration
| Amperage Range | 0 to 200 Amps |
|---|
Product Family Specifications
| Burden | B0.005 |
|---|---|
| Accuracy | 0.15% Class IEC 60044-1 |
| Wire Size | 18 AWG (0.75 mm2), UL 1015 |
| Core Style | Solid-Core |
| Lead Length | 1’ (0.30m) |
| Rated Output | 333mV @ 5/20/50/100 Amps (See Ordering Grid) |
| Product Weight | 0.2lbs (0.09kg) |
| Agency Approvals | UL2808, 61010-2, CSA 22.2, CE and RoHS Compliant |
| Lead Wire Colors | White: Positive (+) Black: Negative (-) |
| Maximum Elevation | 9,842 ft (3 Kilometers) |
| Withstand Voltage | 3,000VAC |
| Maximum AC Voltage | 600 VAC, Category III |

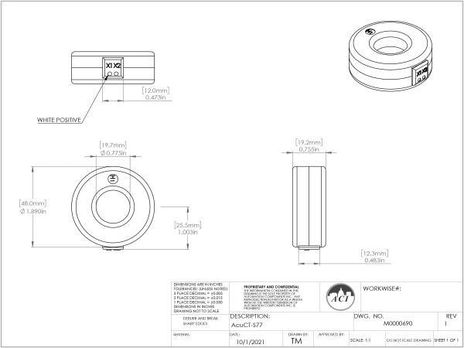

| Product Dimensions | 2.00” (51.00 mm) x 0.75” (19.00 mm) |
| Wiring Connections | Stripped and Tinned Lead Wires |
| Insulation Resistance | 50 MΩ |
| Monitored Current Type | AC Current |
| Impulse Insulation (BIL) | 10kV |
| Operating Frequency Range | 50/60 Hz |
| Storage Temperature Range | -40 to 185°F (-40 to 85°C) |
| Operating Temperature Range | 5 to 140°F (-15 to 60°C) |
| Operating/Storage Humidity Range | 5 to 95%, non-condensing |
| Enclosure Material | Flammability Rating | Plastic Encapsulated/UL 94V-0 |
Specifications
| SKU | CS6290398 |
|---|---|
| MPN | ACUCT-S77-200:333 |
| Alternate Part # | 148210 |
