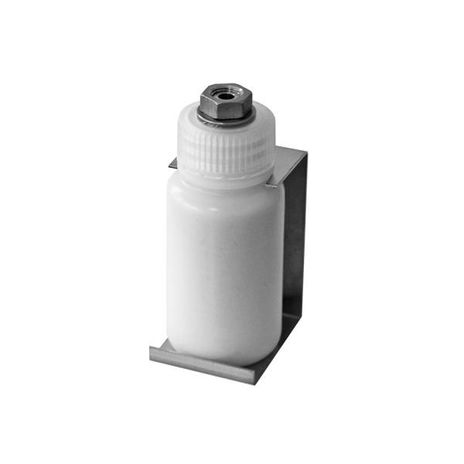

ACI A/TB-2.0-XXA

Name: ACI A/TB-2.0-XXA
Brand: ACI
SKU: CS6290179
Availability: OutOfStock

SKU: CS6290179MPN: A/TB-2.0-XXAAlternate Part #: 147653

Empty 2 oz Nalgene Bottle, 1 Sensing Point, Mounting Bracket, SS Fitting, Rated to -100ºC

Product Details

Empty 2 oz Nalgene Bottle, 1 Sensing Point, Mounting Bracket, SS Fitting, Rated to -100ºC

Bottle Size	2 oz
Thermal Buffer	None
Probe Size Accepted	3/16”

Thermal Media	Glycol or Glass Beads
Fluid Capacity	250 ml (8.5 oz)
Agency Approvals	RoHS, WEEE
Bottle Sterility	Lab Quality, Non-Sterile
Bracket Material	304 Stainless Steel
Bottle Dimensions	4.04” (102.62 mm) x 2.18” (55.37 mm)
Chemical Resistance	Resistant to most acids, bases, and alcohols
Probe Size Accepted	0.1875” (4.762 mm)
Bracket Size( H x W x D)	2 oz Bottle: 2.541” (64.54 mm) x 1.500” (38.10 mm) x 1.760” (44.71 mm) 8.5 oz Bottle: 3.366” (85.49 mm) x 2.630” (66.80 mm) x 3.00” (76.20 mm)
Operating Humidity Range	10 to 100% RH, condensing
Cable Gland Torque Rating	1.66 Nm (14.7 lb. inch)
Storage Temperature Range	-40 to 85°C (-40 to 185°F)
Mounting Screws / Material	#10-16 Thread x ½” (12.7mm) / 410 Stainless steel
Operating Temperature Range	Glycol: -40 to 120°C (-40 to 248°F) Glass Bead: -100 to 120°C (-148 to 248°F)
Bottle Material/Cap Material	Nalgene (HDPE) / Polypropylene w/ PTFE Foam Liner
Compression Fitting Material	316 Stainless Steel
Thermowell Material (3PT only)	316 SS Steel
Cable Gland Material / Gland Material	Polyamide 6 / Neoprene
Glycol Properties / Glycol Freezing Point	Food Grade USP (Propylene Glycol); Non-Toxic \| -59°C (-74.2°F)
Glass Bead Properties / Glass Freezing Point	Soda Lime Glass / NA
