All ProductsACI

ACI A/TB-8.5-1-XXX

SKU: CS6289870MPN: A/TB-8.5-1-XXXAlternate Part #: 147226

Empty 8.5 oz Nalgene Bottle, 1 Sensing Point, Mounting Bracket, Rated to -100ºC

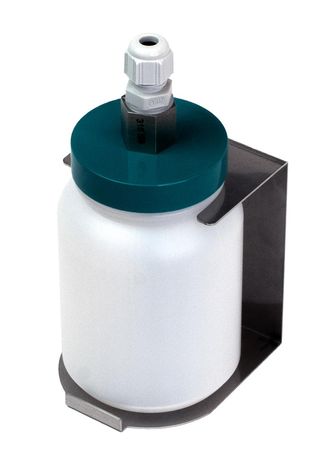

ACI A/TB-8.5-1-GLA, A/TB-8.5-1-GLY, A/TB-8.5-1-XXX
Contact us for pricing and availability

Product Details

Empty 8.5 oz Nalgene Bottle, 1 Sensing Point, Mounting Bracket, Rated to -100ºC

Product Configuration

Bottle Size 8.5 oz
Sensing Points 1
Thermal Buffer None

Product Family Specifications

Thermal Media Glycol or Glass Beads
Fluid Capacity 250 ml (8.5 oz)
Agency Approvals RoHS, WEEE
Bottle Sterility Lab Quality, Non-Sterile
Bracket Material 304 Stainless Steel
Bottle Dimensions 4.04” (102.62 mm) x 2.18” (55.37 mm)
Chemical Resistance Resistant to most acids, bases, and alcohols
Probe Size Accepted 0.1875” (4.762 mm)
Bracket Size( H x W x D) 2 oz Bottle: 2.541” (64.54 mm) x 1.500” (38.10 mm) x 1.760” (44.71 mm) 8.5 oz Bottle: 3.366” (85.49 mm) x 2.630” (66.80 mm) x 3.00” (76.20 mm)
Operating Humidity Range 10 to 100% RH, condensing
Cable Gland Torque Rating 1.66 Nm (14.7 lb. inch)
Storage Temperature Range -40 to 85°C (-40 to 185°F)
Mounting Screws / Material #10-16 Thread x ½” (12.7mm) / 410 Stainless steel
Operating Temperature Range Glycol: -40 to 120°C (-40 to 248°F) Glass Bead: -100 to 120°C (-148 to 248°F)
Bottle Material/Cap Material Nalgene (HDPE) / Polypropylene w/ PTFE Foam Liner
Compression Fitting Material 316 Stainless Steel
Thermowell Material (3PT only) 316 SS Steel
Cable Gland Material / Gland Material Polyamide 6 / Neoprene
Glycol Properties / Glycol Freezing Point Food Grade USP (Propylene Glycol); Non-Toxic | -59°C (-74.2°F)
Glass Bead Properties / Glass Freezing Point Soda Lime Glass / NA

Specifications

SKUCS6289870
MPNA/TB-8.5-1-XXX
Alternate Part #147226
