ACI A/GLA 250ML

Name: ACI A/GLA 250ML
Brand: ACI
SKU: CS6289924
Availability: OutOfStock

SKU: CS6289924MPN: A/GLA 250MLAlternate Part #: 147328

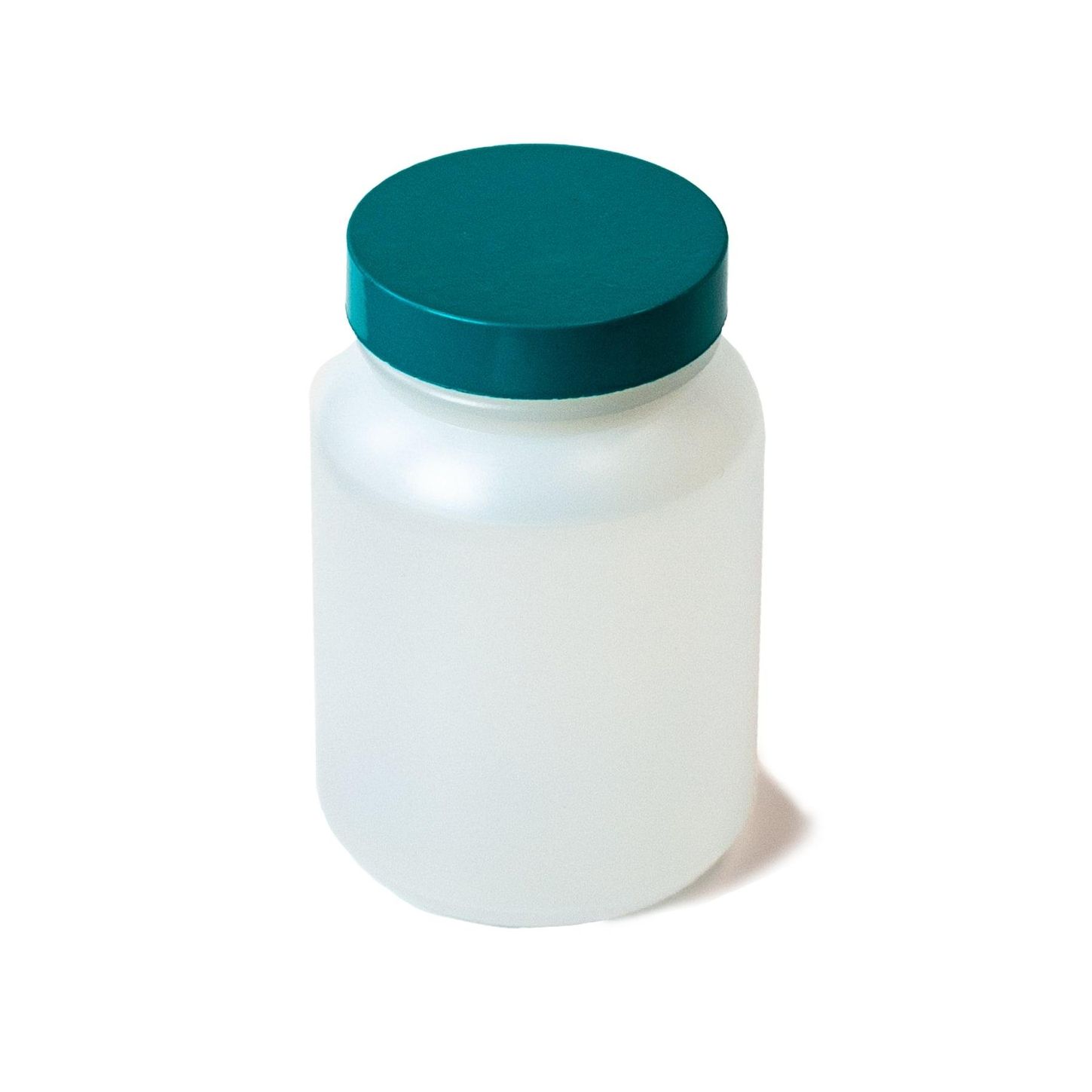

Glass Bead Filled Bottle (250 ML)

Product Details

Glass Bead Filled Bottle (250 ML)

Bottle Size	None
Thermal Buffer	Glass Beads

Thermal Media	Glycol or Glass Beads
Fluid Capacity	250 ml (8.5 oz)
Agency Approvals	RoHS, WEEE
Bottle Sterility	Lab Quality, Non-Sterile
Bracket Material	304 Stainless Steel
Bottle Dimensions	4.04” (102.62 mm) x 2.18” (55.37 mm)
Chemical Resistance	Resistant to most acids, bases, and alcohols
Probe Size Accepted	0.1875” (4.762 mm)
Bracket Size( H x W x D)	2 oz Bottle: 2.541” (64.54 mm) x 1.500” (38.10 mm) x 1.760” (44.71 mm) 8.5 oz Bottle: 3.366” (85.49 mm) x 2.630” (66.80 mm) x 3.00” (76.20 mm)
Operating Humidity Range	10 to 100% RH, condensing
Cable Gland Torque Rating	1.66 Nm (14.7 lb. inch)
Storage Temperature Range	-40 to 85°C (-40 to 185°F)
Mounting Screws / Material	#10-16 Thread x ½” (12.7mm) / 410 Stainless steel
Operating Temperature Range	Glycol: -40 to 120°C (-40 to 248°F) Glass Bead: -100 to 120°C (-148 to 248°F)
Bottle Material/Cap Material	Nalgene (HDPE) / Polypropylene w/ PTFE Foam Liner
Compression Fitting Material	316 Stainless Steel
Thermowell Material (3PT only)	316 SS Steel
Cable Gland Material / Gland Material	Polyamide 6 / Neoprene
Glycol Properties / Glycol Freezing Point	Food Grade USP (Propylene Glycol); Non-Toxic \| -59°C (-74.2°F)
Glass Bead Properties / Glass Freezing Point	Soda Lime Glass / NA
