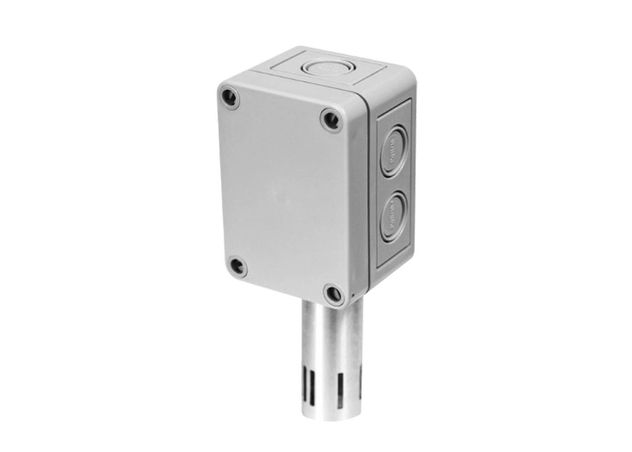

High Accuracy 10,000 Ohm Thermistor (Type II), Immersion, Machined Well, 2.5”, NEMA 4X Enclosure

ACI A/0.1AN-IM-4 -4X, A/0.1CP-IM-2.5"-4X, A/0.1CP-IM-4"-4X, A/0.1CP-IM-8"-4X, A/1.8K-IM-4"-4X, A/100-2W-IM-2.5"-4X, A/100-2W-IM-6"-4X, A/100-3W-IM-2.5"-4X, A/100-3W-IM-4"-4X, A/100-3W-IM-6"-4X, A/100KS-I-6"-4X, A/1K-2W-IM-2.5"-4X, A/1K-2W-IM-2.5"-4X-NIST, A/1K-2W-IM-4"-4X, A/1K-2W-IM-6"-4X

Product Details

High Accuracy 10,000 Ohm Thermistor (Type II), Immersion, Machined Well, 2.5”, NEMA 4X Enclosure

Product Configuration

Length	2.5”
Sensor	0.1CP (10KΩ II, High Accuracy)
Enclosure	NEMA 4X
Thermowell Type	Machined

Product Family Specifications

Stability	A/0.1AN Series (5 Years): +/- 0.127ºC (0.228ºF) @ 100ºC (212ºF) A/0.1CP Series (5 Years): +/- 0.12ºC (0.216ºF) @ 25ºC (77ºF) (10 Years): +/- 0.60ºC (1.08ºF) @ 25ºC (77ºF) The sensor will operate over an extended operating temperature range of -40 to 150ºC (-40 to 302ºF) without damaging the sensor but the accuracy and long term stability will not meet the specifications above
Sensor Type	Thermistor
Number Wires	Two (Non-Polarity Sensitive)
Sensor Curve	Non-Linear, NTC (Negative Temperature Coefficient)
Output Signals	A/0.1AN Series (Type III): 10K nominal (White/Black) A/0.1CP Series (Type II): 10K nominal (Green/Gray)
Probe Diameter	0.250” (6.35mm)
Probe Material	304 Stainless Steel
Sensor Threads	½” NPS (National Pipe Straight) Male Thread
Agency Approvals	CE, UKCA, RoHS2, WEEE
Conductor Material	Silver Plated Copper
NIST Certification	3 Point NIST Certificate available
Number Sensing Points	One
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	0 to 70ºC (32 to 158ºF) For best accuracy and long term stability the sensor should be used in applications where the operating temperatures remain within the specified operating temperature range of 0 to 70ºC (32 to 158ºF)
Power Dissipation Constant	A/0.1AN Series: 2 mW/ºC nominal A/0.1CP Series: 1 mW/ºC nominal
Operating Temperature Range	0 to 70ºC (32 to 158ºF)
Lead Length \| Conductor Size	14” (35.6 cm) \| 22 AWG (0.65mm)
Sensor Output @ 25ºC (77ºF)	+/- 0.1ºC (+/- 0.18ºF)
Response Time (63% Step Change)	10 Seconds nominal
Lead Wire Insulation \| Wire Rating	Etched Teon (PTFE) Colored Leads \| Mil Spec 16878/4 Type E)
Thermowell Material \| Bore Diameter	304 Series Stainless Steel \| 0.260”
Fitting Material \| Flammability Rating	Polyamide 66 (High Performance Nylon 66) \| UL94-HB
Foam Pad Material \| Flammability Rating	Neoprene/EPDM/SBR Polymer \| UL94-HBF; FMVSS-302; MIL-R-6130C
Thermowell Instrument Thread \| Process Thread	½” NPS (National Pipe Straight) Female Thread \| ½” NPT (National Pipe Tapered) Male Thread
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	“-GD” Enclosure: -40 to 115ºC (-40 to 239ºF), Galvanized Steel, NEMA 1 (IP10) “-PB” Enclosure: -30 to 100ºC (-22 to 212ºF), ABS Plastic, UL94-5VB, Plenum Rated “-BB” Enclosure: -40 to 115ºC (-40 to 239ºF), Aluminum, NEMA 3R (IP14) “-4X” Enclosure: -40 to 70ºC (-40 to 158ºF), Polystyrene Plastic, NEMA 4X (IP66)
