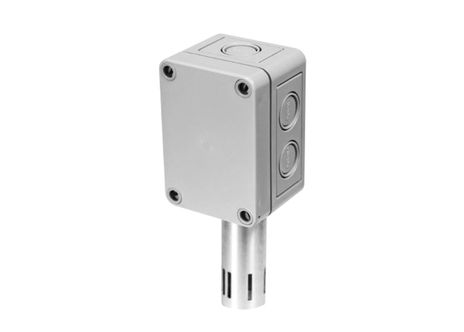

ACI A/0.1CP-O-4X-AS

Name: ACI A/0.1CP-O-4X-AS
Brand: ACI
SKU: CS6289101
Availability: OutOfStock

SKU: CS6289101MPN: A/0.1CP-O-4X-ASAlternate Part #: 143578

High Accuracy 10,000 Ohm Thermistor (Type II), Outside Air, NEMA 4X Enclosure, Aluminum Sleeve

Product Details

High Accuracy 10,000 Ohm Thermistor (Type II), Outside Air, NEMA 4X Enclosure, Aluminum Sleeve

NIST	None
Sensor	0.1CP (10KΩ II, High Accuracy)

Stability	A/0.1AN Series (5 Years): +/- 0.127ºC (0.228ºF) @ 100ºC (212ºF) A/0.1CP Series (5 Years): +/- 0.12ºC (0.216ºF) @ 25ºC (77ºF) (10 Years): +/- 0.60ºC (1.08ºF) @ 25ºC (77ºF)
Number Wires	Two (Non-Polarity Sensitive)
Agency Approvals	CE, RoHS2, WEEE
Number Sensing Points	One
Operating Humidity Range	10 to 100% RH
Storage Temperature Range	-40 to 70ºC (-22 to 158ºF)
Power Dissipation Constant	A/0.1AN Series: 2 mW/ºC nominal A/0.1CP Series: 1 mW/ºC nominal
Sensor Type \| Sensor Curve	Thermistor \| Non-Linear, NTC (Negative Temperature Coefficient)
Operating Temperature Range	-40 to 70ºC (-22 to 158ºF)
Accuracy 0-70ºC (32-158ºF)	+/- 0.1ºC (+/- 0.18ºF)
Sensor Output @ 25ºC (77ºF)	A/0.1AN Series (Type III): 10KΩ nominal (White/Black) A/0.1CP Series (Type II): 10KΩ nominal (Green/Gray)
Response Time (63% Step Change)	10 Seconds nominal
Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	“-EH” Enclosure: PC/ASA Plastic w/ UV Protectant; -40 to 88ºC (-40 to 190ºF); UL94-V0 “-4X” Enclosure: Polystyrene Plastic, -40 to 70ºC (-40 to 158ºF), UL94-V2, NEMA 4X (IP 66) “-BB” Enclosure: Aluminum, -40 to 121ºC (-40 to 250ºF), NEMA 3R
