ACI A/SYPHON-270

Name: ACI A/SYPHON-270
Brand: ACI
SKU: CS6289113
Availability: OutOfStock

SKU: CS6289113MPN: A/SYPHON-270Alternate Part #: 143945

Syphon, ¼” MNPT, 270°, Schedule 40, 316 SS

Product Details

Syphon, ¼” MNPT, 270°, Schedule 40, 316 SS

Thread Size	¼” Male NPT x ¼” Male NPT
Material Type	Welded 316 Series Stainless Steel
Pipe Schedule	Schedule 40 or Schedule 80; See ordering grid on data sheet
Product Weight	A/SYPHON-90: 0.40 lbs (0.181 kg) A/SYPHON-90-H: 0.50 lbs (0.227 kg) A/SYPHON-180: 0.40 lbs (0.181 kg) A/SYPHON-180-H: 0.60 lbs (0.272 kg) A/SYPHON-270: 0.50 lbs (0.227 kg) A/SYPHON-270-H: 0.70 lbs (0.318 kg)
Agency Approvals	ASME Boiler and Pressure Vessel Code 1995, MIL-I Certified (Military equivalent of ISO 9000), RoHS2 Compliant, WEEE, Reach
Operating Pressure	See temperature vs pressure chart on data sheet

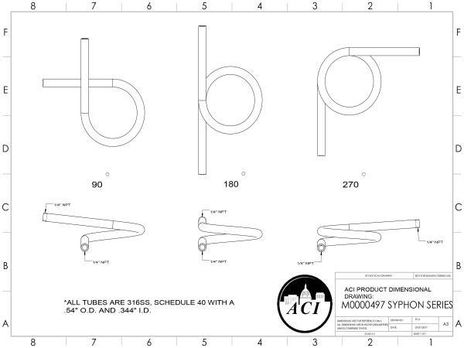

Bend Configurations	90º, 180º, or 270º
Operating Temperature Range	See temperature vs pressure chart on data sheet
