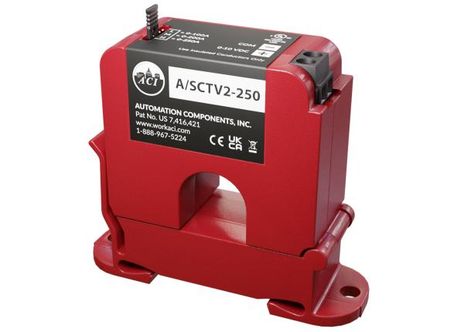

ACI A/SCTV2-250

Name: ACI A/SCTV2-250
Brand: ACI
SKU: CS6288654
Availability: OutOfStock

SKU: CS6288654MPN: A/SCTV2-250Alternate Part #: 142380

Analog Current Sensor, 0-10 VDC, DIN Rail, Split Core, 0-100, 0-200, 0-250 Amp (Default)

Product Details

Analog Current Sensor, 0-10 VDC, DIN Rail, Split Core, 0-100, 0-200, 0-250 Amp (Default)

Product Configuration

Core Type	Split Core
Product Type	0-10 VDC Sensors
Amperage Range	0 to 100/200/250 Amps

Product Family Specifications

Accuracy	A/CTE2 \& A/SCTE2 Series: (0-10A Range Only): +/- 1% from 5-100% of Selected Range A/CTE2 \& A/SCTE2 Series: (All Other Ranges): +/- 1% from 2-100% of Selected Range A/CTV2: +/- 1% from 5-100% of Selected Range A/SCTV2 Series: (0 to 10A Range Only): +/- 2% from 5 to 100% of Selected Range A/SCTV2 Series: (All Other Ranges): +/- 1% from 5 to 100% of Selected Range
Wire Size	18 to 24 AWG (0.823 mm2 to 0.205 mm2) Copper Wires only
Core Style	Solid-Core and Split-Core Versions available (See Ordering Grid)
Aperture Size	0.75” (19.05 mm)
Response Time	\< 300 mS (Rise and Fall Times)
Amperage Range	See Ordering Grid (Field Selectable)
Product Weight	A/CTE2-xxx \& A/CTV2-xxx Series: 0.194 lbs. (0.088 kg) A/SCTE2-xxx \& A/SCTV2-xxx Series: 0.274 lbs. (0.125 kg)
Supply Voltage	Induced from the Monitored Conductor (Insulated Conductors only)
Agency Approvals	UL/CUL US Listed (UL 508) Ind. Control Equipment (File # E309723), CE, RoHS2, WEEE
DIN Rail Mounting	35 mm (U.S. Patent No. 7,416,421)
Isolation Voltage	2200 VAC
Maximum AC Voltage	600 VAC

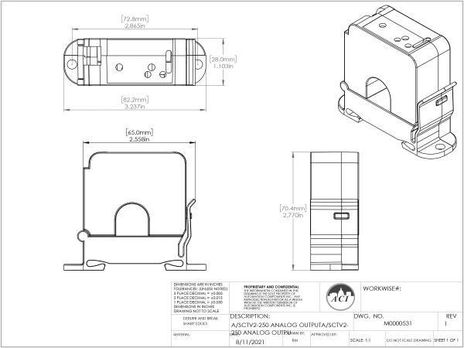

Product Dimensions	Solid Core Versions: 2.760” (70.11 mm) x 3.343” (84.92 mm) x 1.050” (26.67 mm) Split Core Versions: 2.780” (70.51 mm) x 3.238” (82.25 mm) x 1.120” (28.45 mm)
Wiring Connections	2 Position, Screw Terminal Block (Polarity Sensitive)
Wire Recommendations	2 Conductor (Shielded Cable)
Monitored Current Type	AC Current
Operating Humidity Range	0 to 95%, non-condensing
Minimum Mounting Distance	1” (2.6 cm) between current sensor \& other magnetic devices (Relays, Contactors, Transformers)
Operating Frequency Range	50 to 600 Hz
Operating Temperature Range	5 to 104ºF (-15 to 40ºC)
Terminal Block Torque Rating	4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
Storage Temperature \| RH Range	41 to 95ºF (5 to 35ºC) \| 40% to 85% RH, non-condensing
Output Signal \| Number of Wires	A/CTE2 \& A/SCTE2 Series: 0 to 5 VDC \| A/CTV2 \& A/SCTV2 Series: 0 to 10 VDC \| 2-Wires
Enclosure Material \| Flammability Rating	PC/ABS (Polycarbonate/ABS Blend) \| UL94-V0
