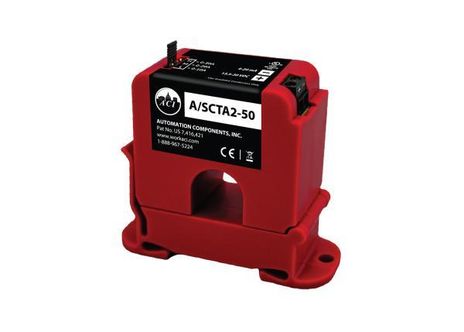

ACI A/SCTA2-50

Name: ACI A/SCTA2-50
Brand: ACI
SKU: CS6288651
Availability: OutOfStock

SKU: CS6288651MPN: A/SCTA2-50Alternate Part #: 142375

Analog Current Sensor, 4-20mA, DIN Rail, Split Core, 0-10, 0-20, 0-50 Amp (Default)

Product Details

Analog Current Sensor, 4-20mA, DIN Rail, Split Core, 0-10, 0-20, 0-50 Amp (Default)

Product Configuration

Core Type	Split Core
Measurement	Average
Amperage Range	0 to 10/20/50 Amps

Product Family Specifications

Accuracy	All Models: +/- 1% of Selected Range except A/SCTA2-50-RMS: +/- 2% from 15 to 20 Hz +/- 1% from 20 to 100 Hz
Wire Size	18 to 24 AWG (0.823 mm2 to 0.205 mm2) Copper Wires only
Core Style	Solid-Core and Split-Core Versions available (See Ordering Grid)
Aperture Size	0.75” (19.05 mm)
Response Time	A/CTA2-xxx and A/SCTA2-XXX: \< 600 mS (Rise and Fall Time) A/CTA2-xxx-RMS \& A/SCTA2-50-RMS: 600 mS (Rise Time) and 2800 mS (Fall Time)
Amperage Range	See Ordering Grid (Field Selectable)
Product Weight	A/CTA2-xxx: 0.260 lbs. (0.118 kg) \| A/SCTA2-xxx: 0.274 lbs. (0.124 kg) A/CTA2-xxx-RMS: 0.190 lbs. (0.087 kg) \| A/SCTA2-xxx-RMS: 0.190 lbs. (0.087 kg)
Supply Current	25 mA minimum
Supply Voltage	+8.5 to 30 VDC (Reverse Polarity Protected) 250 Ohm Load (1-5 VDC): +13.5 to 30 VDC \| 500 Ohm Load (2-10 VDC): +18.5 to 30 VDC
Agency Approvals	CE (-RMS Versions): CE to IEC 61326-1: 2012 Class A, UL/CUL US Listed (UL 508) Ind. Control Equipment (File # E309723), RoHS2, WEEE
DIN Rail Mounting	35 mm (U.S. Patent No. 7,416,421)
Isolation Voltage	2200 VAC
Maximum AC Voltage	600 VAC
Product Dimensions	Solid Core Versions: 2.760” (70.11 mm) x 3.343” (84.92 mm) x 1.050” (26.67 mm) Split Core Versions: 2.780” (70.51 mm) x 3.238” (82.25 mm) x 1.120” (28.45 mm)
Wiring Connections	2 Position, Screw Terminal Block (Polarity Sensitive)
Wire Recommendations	2 Conductor (Shielded Cable)
Monitored Current Type	AC Current
Maximum Load Resistance	775 Ohms (Formula: (24 VDC – 8.5 VDC) / 0.020A )
Operating Humidity Range	0 to 95%, non-condensing
Minimum Mounting Distance	1” (2.6 cm) between current sensor \& other magnetic devices (Relays, Contactors, Transformers)
Operating Frequency Range	A/CTA2 \& A/SCTA2 Series: 40 to 1KHz \| A/CTA2-50-RMS \& A/SCTA2-50 RMS: 15 to 100 Hz A/CTA2-250-RMS (0-100A Range): 15 to 100 Hz \| A/CTA2-250-RMS (0-200/250A Ranges): 30 to 100 Hz
Storage Temperature Range	41 to 95°F (5 to 35°C)
Operating Temperature Range	5 to 104ºF (-15 to 40ºC)
Terminal Block Torque Rating	4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
Storage Temperature \| RH Range	41 to 95°F (5 to 35°C) \| 40% to 85% RH, non-condensing
Output Signal \| Maximum Output Signal	4 to 20 mA (2-Wire, Loop Powered) \| Limited to 25 mA
Enclosure Material \| Flammability Rating	PC/ABS (Polycarbonate/ABS Blend) \| UL94-V0
