ACI A/TTM1K-HT-BP-4-4X-8'

Name: ACI A/TTM1K-HT-BP-4-4X-8'
Brand: ACI
SKU: CS6288573
Availability: OutOfStock

SKU: CS6288573MPN: A/TTM1K-HT-BP-4-4X-8'Alternate Part #: 142197

Transmitter w/ 1,000 Ohm RTD (NIST Cert), High Temperature Bullet Probe, 1”, 316 SS, NEMA 4X Enclosure, 8’, 4-20mA Output

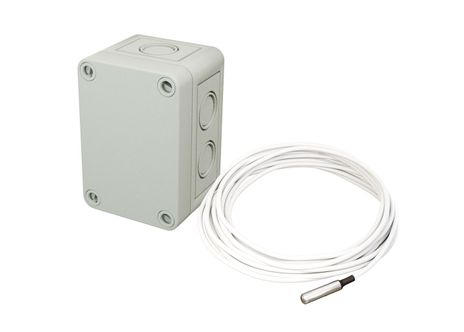

ACI A/TT1K-BP-2-4X-20'CL2P, A/TT1K-BP-4-4X-10'CL2P, A/TT1K-BP-4-4X-20'CL2P, A/TTM1K-BP-4-4X-10 CL2P, A/TTM1K-BP-4-4X-20'CL2P, A/TTM1K-BP-4-4X-6 CL2P, A/TTM1K-HT-BP-4-4X-8'

Product Details

Transmitter w/ 1,000 Ohm RTD (NIST Cert), High Temperature Bullet Probe, 1”, 316 SS, NEMA 4X Enclosure, 8’, 4-20mA Output

Product Configuration

Sensor	TTM1K-HT (XMTR, 1K, High Temp, NIST)
Enclosure	NEMA 4X
Temperature Series	High Temperature Transmitters

Product Family Specifications

Stability	\< 0.04 % at 1000 hours at 400ºC
Sensor Type	Platinum RTD
Number Wires	A/100-3W-HT-BP-8’ and A/1K-3W-HT-BP-8’”: Three (Two White / Red) Polarity Sensitive)
Sensor Curve	PTC (Positive Temperature Coefficient)
Thermal Drift	Temp. Spans \< 100oF (38ºC): +/- 0.04%/ºF \| Temp. Spans > 100ºF (38ºC): +/- 0.02%
Output Signals	Current: 4-20 mA (2-Wire Loop Powered) Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Probe Diameter	0.250” (6.35 mm)
Probe Material	316 Stainless Steel
Agency Approvals	CE, RoHS2, WEEE
Number Sensing Points	One
Connections \| Wire Size	Screw Terminal Blocks \| 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance	(Terminal Voltage - 8.5 V) / 0.020 A
Operating Humidity Range	10 to 90% RH, non-condensing
Storage Temperature Range	-40 to 85ºC (-40 to 185ºF)
Operating Temperature Range	-40 to 395ºC (-40 to 743ºF)
Sensor Tolerance \| Accuracy	+/- 0.12% Class B \| Class B Tolerance Formula: +/- ºC \= (0.30ºC + (0.005 * \|t\|))
Calibrated Temperature Spans	Minimum Temp. Span: 50ºF (28ºC) Maximum Temp. Span: 800ºF (426ºC) Best transmitter accuracy with spans in 100ºF Increments (ie. 0 to 100ºF, 20 to 220ºF, and 100 to 600ºF)
Compression Fitting Material	316 Stainless Steel
Lead Length \| Conductor Size	8’ (2.44 m) \| 24 AWG (0.20 mm2)
Sensor Output @ 0ºC (32ºF)	A/100-3W-HT-BP-8’: 100 Ohms nominal \| A/1K-3W-HT-BP-8’: 1000 Ohms nominal
Terminal Block Torque Rating	0.5 Nm nominal
Warm Up Time \| Warm Up Drift	10 Minutes \| +/- 0.1%
Calibrated Accuracy \| Linearity	Temp. Spans \< 500ºF (260ºC): +/- 0.2% \| Temp. Spans > 500ºF (260ºC): +/- 0.5%
Lead Wire Insulation \| Wire Rating	Fiberglass Braided Insulation w/ Mica Tape \| 27% Nickel Plated Copper
Din Standard \| Temperature Coeffcient	DIN EN 60751 (IEC 751) \| 3850 ppm / ºC
Self-Heating \| Maximum Operating Current	100 Ohm RTD: 7 mW / ºC (Still Air) \| 5 mA 1K Ohm RTD: 4 mW / ºC (Still Air) \| 3 mA
Transmitter Supply Voltage \| Supply Current	+8.5 to 32 VDC (Reverse Polarity Protected) \| 25 mA minimum 250 Ohm Load (1-5 VDC): +13.5 to 32 VDC 500 Ohm Load (2-10 VDC): +18.5 to 32 VDC
