ACI A/100-3W-HT-BP-8'

Name: ACI A/100-3W-HT-BP-8'
Brand: ACI
SKU: CS6285813
Availability: OutOfStock

SKU: CS6285813MPN: A/100-3W-HT-BP-8'Alternate Part #: 119985

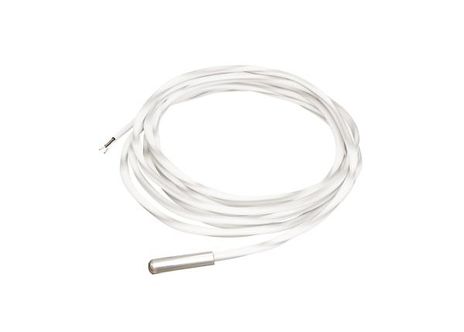

100 Ohm (Three Wires) RTD, High Temperature Bullet Probe, 1”, 316 SS, 8’

Product Details

100 Ohm (Three Wires) RTD, High Temperature Bullet Probe, 1”, 316 SS, 8’

Product Configuration

Sensor	100-3W-HT (100 Ω, High Temp)
Enclosure	Galvanized
Temperature Series	High Temperature Sensors

Product Family Specifications

Stability	\< 0.04 % at 1000 hours at 400ºC
Sensor Type	Platinum RTD
Number Wires	A/100-3W-HT-BP-8’ and A/1K-3W-HT-BP-8’”: Three (Two White / Red) Polarity Sensitive)
Sensor Curve	PTC (Positive Temperature Coefficient)
Thermal Drift	Temp. Spans \< 100oF (38ºC): +/- 0.04%/ºF \| Temp. Spans > 100ºF (38ºC): +/- 0.02%
Output Signals	Current: 4-20 mA (2-Wire Loop Powered) Voltage: 1-5 VDC or 2-10 VDC (3-Wires)
Probe Diameter	0.250” (6.35 mm)
Probe Material	316 Stainless Steel
Agency Approvals	CE, RoHS2, WEEE
Number Sensing Points	One
Connections \| Wire Size	Screw Terminal Blocks \| 16 AWG (1.31 mm2) to 26 AWG (0.129 mm2)
Maximum Load Resistance	(Terminal Voltage - 8.5 V) / 0.020 A
Operating Humidity Range	10 to 90% RH, non-condensing
Storage Temperature Range	-40 to 85ºC (-40 to 185ºF)
Operating Temperature Range	-40 to 395ºC (-40 to 743ºF)
Sensor Tolerance \| Accuracy	+/- 0.12% Class B \| Class B Tolerance Formula: +/- ºC \= (0.30ºC + (0.005 * \|t\|))
Calibrated Temperature Spans	Minimum Temp. Span: 50ºF (28ºC) Maximum Temp. Span: 800ºF (426ºC) Best transmitter accuracy with spans in 100ºF Increments (ie. 0 to 100ºF, 20 to 220ºF, and 100 to 600ºF)
Compression Fitting Material	316 Stainless Steel
Lead Length \| Conductor Size	8’ (2.44 m) \| 24 AWG (0.20 mm2)
Sensor Output @ 0ºC (32ºF)	A/100-3W-HT-BP-8’: 100 Ohms nominal \| A/1K-3W-HT-BP-8’: 1000 Ohms nominal
Terminal Block Torque Rating	0.5 Nm nominal
Warm Up Time \| Warm Up Drift	10 Minutes \| +/- 0.1%
Calibrated Accuracy \| Linearity	Temp. Spans \< 500ºF (260ºC): +/- 0.2% \| Temp. Spans > 500ºF (260ºC): +/- 0.5%
Lead Wire Insulation \| Wire Rating	Fiberglass Braided Insulation w/ Mica Tape \| 27% Nickel Plated Copper
Din Standard \| Temperature Coeffcient	DIN EN 60751 (IEC 751) \| 3850 ppm / ºC
Self-Heating \| Maximum Operating Current	100 Ohm RTD: 7 mW / ºC (Still Air) \| 5 mA 1K Ohm RTD: 4 mW / ºC (Still Air) \| 3 mA
Transmitter Supply Voltage \| Supply Current	+8.5 to 32 VDC (Reverse Polarity Protected) \| 25 mA minimum 250 Ohm Load (1-5 VDC): +13.5 to 32 VDC 500 Ohm Load (2-10 VDC): +18.5 to 32 VDC
