All ProductsACI

ACI A/1K-NI-DO-18"-10'CL2P

SKU: CS6288246MPN: A/1K-NI-DO-18"-10'CL2PAlternate Part #: 139299

1,000 Ohm Nickel RTD, Duct, Without Box, 18”, 10’ Plenum Cable

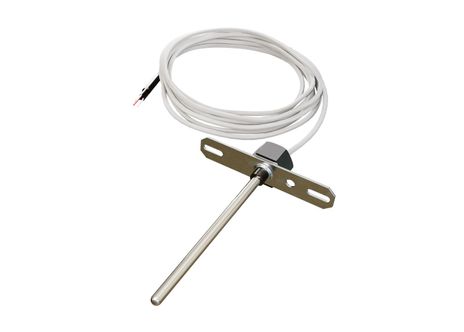

ACI A/1.8K-DO-4"-10'CL2P, A/1.8K-DO-4"-6'CL2P, A/1.8K-DO-6"-6'CL2P, A/1.8K-DO-8"-6'CL2P, A/100-2W-DO-4"-6'CL2P, A/100-2W-DO-6"-10'CL2P, A/100-2W-DO-6"-6'CL2P, A/100-2W-DO-8"-10'CL2P, A/100-2W-DO-8"-6'CL2P, A/100-3W-DO-12"-6'CL2P, A/100-3W-DO-4"-10'CL2P, A/100-3W-DO-4"-20'CL2P, A/100-3W-DO-4"-6'CL2P, A/100-3W-DO-6"-6'CL2P, A/100-3W-DO-8"-10'CL2P
Contact us for pricing and availability

Product Details

1,000 Ohm Nickel RTD, Duct, Without Box, 18”, 10’ Plenum Cable

Product Configuration

Wire 10’ Plenum Cable - CL2P
Length 18”

Product Family Specifications

Number Wires Two (Non-Polarity Sensitive)
Probe Diameter 0.250” (6.35mm)
Sensor Accuracy -40ºC (-40ºF): +/- 1.52ºC (+/- 2.73ºF) 0ºC (32ºF): +/- 0.4ºC (+/- 0.72ºF) 21.1ºC (70ºF): +/- 0.17ºC (+/- 0.34ºF) 54.4ºC (130ºF): +/- 0.56ºC (1.00ºF) 121ºC (250ºF): +/- 1.25ºC (+/- 2.25ºF)
Agency Approvals CE, RoHS2, WEEE
Lead Wire Colors Red/Red
Conductor Material Silver Plated Copper
Nickel RTD Stability +/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Number Sensing Points One
Operating Humidity Range 10 to 95% RH, non-condensing
Storage Temperature Range -40 to 85ºC (-40 to 185ºF)
Sensor Type | Sensor Curve Nickel RTD | PTC (Positive Temperature Coefficient)
Operating Temperature Range -40 to 115ºC (-40 to 239ºF)
Lead Length | Conductor Size 4”, 6” \& 8” Probes: 14” (35.6 cm) | 12” \& 18” Probes: 24” (61cm) | 22 AWG (0.65mm)
Response Time (63% Step Change) 8 Seconds nominal
Sensor Output @ 21.1ºC (70ºF) 1000 Ohms nominal
Probe Material | Flange Material 304 Stainless Steel | Galvanized Steel
Lead Wire Insulation | Wire Rating Etched Teflon (PTFE) Colored Leads | MIL-W-16878/4 (Type E)
Din Standard | Temperature Coeffcient Din 43760 | 6370 ppm/ºC
Fitting Material | Flammability Rating Polyamide 66 (High Performance Nylon) | UL94-HB
Foam Pad Material | Flammability Rating Neoprene/EPDM/SBR Polymer | UL94-HBF; FMVSS-302; MIL-R-6130C

Specifications

SKUCS6288246
MPNA/1K-NI-DO-18"-10'CL2P
Alternate Part #139299
