ACI A/1K-NI-DO-6"

Name: ACI A/1K-NI-DO-6"
Brand: ACI
SKU: CS6287333
Availability: OutOfStock

SKU: CS6287333MPN: A/1K-NI-DO-6"Alternate Part #: 133239

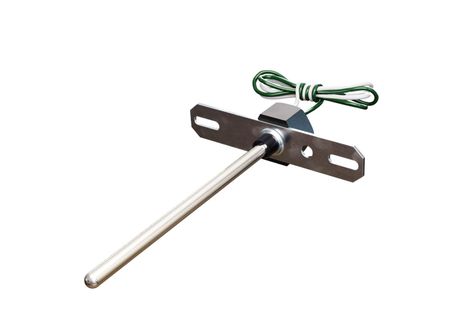

1,000 Ohm Nickel RTD, Duct, Without Box, 6”

Product Details

1,000 Ohm Nickel RTD, Duct, Without Box, 6”

Wire	Standard Leads
Length	6”

Number Wires	Two (Non-Polarity Sensitive)
Probe Diameter	0.250” (6.35mm)
Sensor Accuracy	-40ºC (-40ºF): +/- 1.52ºC (+/- 2.73ºF) 0ºC (32ºF): +/- 0.4ºC (+/- 0.72ºF) 21.1ºC (70ºF): +/- 0.17ºC (+/- 0.34ºF) 54.4ºC (130ºF): +/- 0.56ºC (1.00ºF) 121ºC (250ºF): +/- 1.25ºC (+/- 2.25ºF)
Agency Approvals	CE, RoHS2, WEEE
Lead Wire Colors	Red/Red
Conductor Material	Silver Plated Copper
Nickel RTD Stability	+/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Number Sensing Points	One
Operating Humidity Range	10 to 95% RH, non-condensing
Storage Temperature Range	-40 to 85ºC (-40 to 185ºF)
Sensor Type \| Sensor Curve	Nickel RTD \| PTC (Positive Temperature Coefficient)
Operating Temperature Range	-40 to 115ºC (-40 to 239ºF)
Lead Length \| Conductor Size	4”, 6” \& 8” Probes: 14” (35.6 cm) \| 12” \& 18” Probes: 24” (61cm) \| 22 AWG (0.65mm)
Response Time (63% Step Change)	8 Seconds nominal
Sensor Output @ 21.1ºC (70ºF)	1000 Ohms nominal
Probe Material \| Flange Material	304 Stainless Steel \| Galvanized Steel
Lead Wire Insulation \| Wire Rating	Etched Teflon (PTFE) Colored Leads \| MIL-W-16878/4 (Type E)
Din Standard \| Temperature Coeffcient	Din 43760 \| 6370 ppm/ºC
Fitting Material \| Flammability Rating	Polyamide 66 (High Performance Nylon) \| UL94-HB
Foam Pad Material \| Flammability Rating	Neoprene/EPDM/SBR Polymer \| UL94-HBF; FMVSS-302; MIL-R-6130C
