ACI A/RH2-SP-05

Name: ACI A/RH2-SP-05
Brand: ACI
SKU: CS6288171
Availability: OutOfStock

SKU: CS6288171MPN: A/RH2-SP-05Alternate Part #: 138922

Relative Humidity, RH Outputs: 0-5 (Default) \& 0-10 VDC, Wall Plate 304SS, ± 2% Accuracy

Product Details

Relative Humidity, RH Outputs: 0-5 (Default) \& 0-10 VDC, Wall Plate 304SS, ± 2% Accuracy

NIST	None
Humidity Output	0-5VDC
Accuracy (Humidity)	+/-2%

Product Weight	0.235 lbs. (0.107 kg)
RH Sensor Type	Capacitive with Hydrophobic Filter
Agency Approvals	CE, RoHS2, WEEE
RH Output Signal	3-wire: 0-5 or 0-10 VDC
RH Supply Voltage	0-5 VDC: 12 - 40 VDC / 18 - 28 VAC \| 0-10 VDC: 18 - 40 VDC / 18 - 28 VAC
Operating RH Range	0 to 95% RH, non-condensing (Conformally Coated PCB’s)
Product Dimensions	4.51” (114.56 mm) x 2.76” (70.10 mm) x 1.25” (31.75 mm)
RH NIST Test Points	Default Test Points: 3 Points (20%, 50% \& 80%)

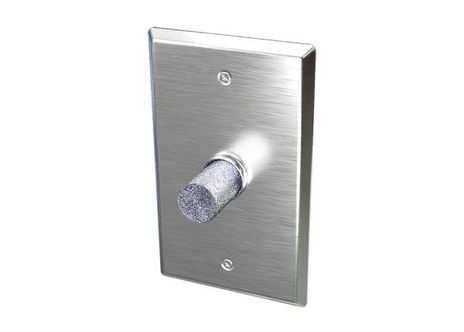

Wall Plate Material	430 Stainless Steel (Brushed Stainless Steel Finish)
RH Measurement Range	0-100%
RH Response Time (T63)	20 Seconds Typical
RH Supply Current (VA)	8 mA maximum (0.32 VA)

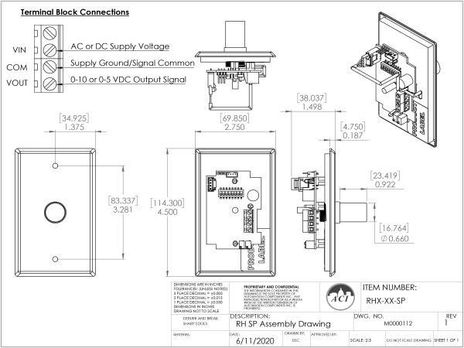

Connections \| Wire Size	Screw Terminal Blocks (Polarity Sensitive) \| 16 (1.31 mm²) to 26 AWG (0.129 mm²)
Foam Flammability Rating	FMVSS-302
Sintered Filter Material	304 Series Stainless Steel
RH Output Load Resistance	4K Ohms Minimum
Storage Temperature Range	-40 to 149°F (-40 to 65°C)
Operating Temperature Range	-40 to 140°F (-40 to 60°C)
RH Accuracy @ 77°F (25°C)	Model Dependent: +/- 2%, or 3% from 10 to 95%
Terminal Block Torque Rating	4.43 to 5.31 lb-in (0.5 to 0.6 Nm)
Foam Material \| Foam Thickness	Cross-linked LPDE (White) \| 0.25” (6.35 mm)
RH Transmitter Stabilization Time	30 Minutes (Recommended time before doing accuracy verification)
RH Stability \| Repeatability \| Sensitivity	Less than 2% drift / 5 years \| 0.5% RH \| 0.1% RH
