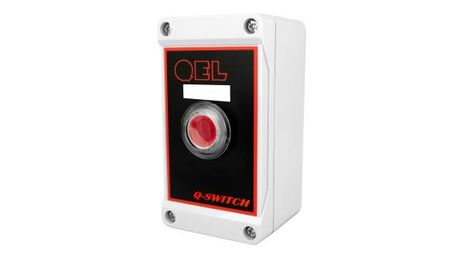

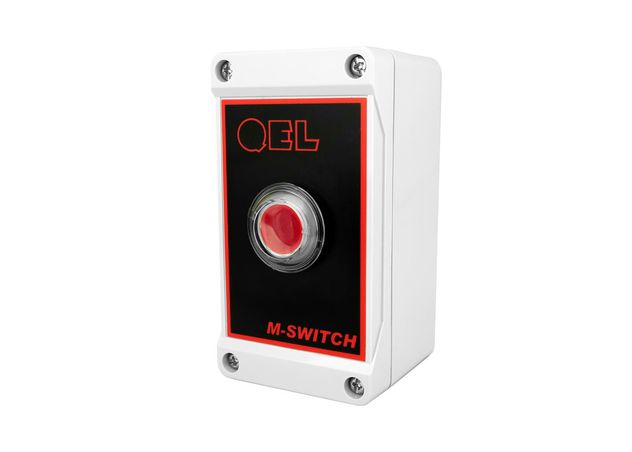

ACI Q-SWITCHA-0

Name: ACI Q-SWITCHA-0
Brand: ACI
SKU: CS6288162
Availability: OutOfStock

SKU: CS6288162MPN: Q-SWITCHA-0Alternate Part #: 138897

Manual Input Switch, Q-Controller

Product Details

Manual Input Switch, Q-Controller

Product Configuration

Configuration	None
Configuration Modification	Manual Input Switch

Product Family Specifications

Fuse	F1, F2 on main board: Polyswitch 750 mA \| Fuses reset after removing power
Input	4 Inputs \| Can be Q-Switch or any ON-OFF switch
Buzzer	100 db @ 4” (10 cm), 3700 Hz continuous
Output	Analog: 128 4-20 mA outputs using AO-Box; 8 channels/box, up to 16 boxes Relay: 128 outputs using BO-Box; 4 relays/box, up to 31 boxes
Display	7” LCD touchscreen with 800 X 480 resolution 15 Status LED’s: Power, USB TX/RX status 4 RS-485 port TX/RX status for sensor network 1 RS-485 port TX/RX status for Modbus 1 RS-485 port TX/RX status for BACnet Module BAC-box
Time Delays	Actuation / De-Actuation: 0 to 9999 seconds \| Default is 10 seconds
Horn \& Strobe	Two (2) 24 VDC Terminals (750 mA maximum)
Product Weight	12.0 lbs (5443g)
Supply Current	Q-Controller: 0.75A maximum (fuse protected) \| Horn \& Strobe: 0.75A maximum (fuse protected) Note: Total actual power depends on the system size and design \| The power may be supplied to sensors and modules, or each may have separate power supplies \| Each sensor type varies in power requirements
Supply Voltage	24 VAC Nominal, 15 to 24 VAC 50/60 Hz \| 24 VDC Nominal, 18 to 30 VDC Note: A switch or circuit breaker must be provided during installation to remove power from the Q-Controller in case of emergency, since the Q-Controller enclosure can be locked to prevent tampering, and the internal power switch is not accessible
Agency Approvals	UL2017
Enclosure Rating	NEMA 4X, Polycarbonate, Flammability Rating UL94V-V-0
Communication Wire	Belden 9841 or equal
Operating RH Range	85% +/-5% for temperatures up to 86ºF (30ºC), decreasing Linearly to 50% RH at 104ºF (40ºC)
Wiring Connections	Removable, Power wiring: 16 to 26 AWG (0.2 to 1.00 nm²) Twisted Pair
Operating Environment	Indoor use only
Relay Life Expectancy	Mechanical: VAC 10,000,000, VDC 20,000,000 @ 300 times/minute
Communication Protocol	Modbus Slave using Modbus RTU RS-485, BACnet IP (using BAC-box) ports to host computer
Dimensions (H x W x D)	(H) 16.00” (406 mm) x (W) 12.00” (305 mm) x (D) 6.00” (152 mm)
Operating Temperature Range	32ºF to 120ºF (-0ºC to 49ºC)
Terminal Block Torque Rating	0.37 ft-lb (0.5n-3m) Nominal
Storage Temperature \| RH Range	32ºF to 68ºF (0ºC to 20ºC) 0 to 99% RH Non-Condensing
Relays / Contact Type / Relay Contact Ratings	4 pluggable SPDT Form C, Dry Contact, 10A @ 250 VAC, 30 VDC Resistive 7.5A @ 250 VAC, 5A @ 30 VDC Inductive
