ACI A/1K-NI-FA-24'-PB

Name: ACI A/1K-NI-FA-24'-PB
Brand: ACI
SKU: CS6286853
Price: 284.93 USD
Availability: OutOfStock

SKU: CS6286853MPN: A/1K-NI-FA-24'-PBAlternate Part #: 128455

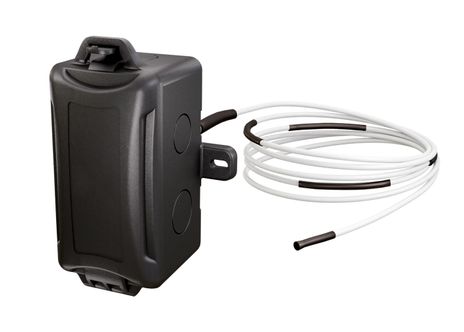

1,000 Ohm Nickel RTD, Flexible Cable Averaging, 24’, Plastic Enclosure

ACI A/1.8K-FA-24'-PB, A/100KS-FA-12'-PB, A/100KS-FA-8'-PB, A/10K-E1-FA-24'-PB, A/10K-E1-FA-8'-PB, A/10KS-FA-12'-PB, A/10KS-FA-24'-PB, A/1K-2W-FA-12'-PB, A/1K-2W-FA-24'-PB, A/1K-2W-FA-8'-PB, A/1K-NI-FA-12'-PB, A/1K-NI-FA-24'-PB, A/1K-NI-FA-50'-PB, A/1K-NI-FA-8'-PB, A/20K-FA-12'-PB

$284.93

Unit

Available on backorder

Quantity

remove

add

Product Details

1,000 Ohm Nickel RTD, Flexible Cable Averaging, 24’, Plastic Enclosure

Product Configuration

Length	24’
Enclosure	Plastic

Product Family Specifications

Accuracy	8’ and 12’ Models: +/- 0.23C (+/- 0.40ºF) @ 21.1ºC (70ºF) +/- 1.59ºC (+/- 1.06ºF) @ 54.4ºC (130ºF) 24’ and 50’ Models: +/- 0.24ºC (+/- 0.42ºF) @ 21.1ºC (70ºF) +/- 0.61ºC (+/- 1.09ºF) @ 54.4ºC (130ºF)
Stability	+/- 0.05% after 1000 Hours @ 150ºC (302ºF)
Sensor Type	Nickel RTD
Sensor Curve	PTC (Positive Temperature Coeffcient)
Agency Approvals	RoHS2, WEEE
Lead Wire Colors	(Red/Red)
Conductor Material	Silver Plated Copper
Number Sensing Points	8’ and 12’ Lengths: Four \| 24’ and 50’ Lengths: Nine \| Two (Non-Polarity Sensitive)
Sensor Cable Diameter	0.170” (4.32mm) nominal
Operating Humidity Range	10 to 90% RH, non-condensing
Storage Temperature Range	-20 to 75ºC (-4 to 167ºF)
Operating Temperature Range	0 to 75ºC (32 to 167ºF)
Lead Length \| Conductor Size	12” (30.5cm) \| 22 AWG (0.65mm)
Response Time (63% Step Change)	15 Seconds nominal
Sensor Output @ 21.1ºC (70ºF)	1000 Ohms nominal
Lead Wire Insulation \| Wire Rating	Etched Teflon (PTFE) Colored Leads \| MIL-W-16878/4 (Type E)
Din Standard \| Temperature Coeffcient	Din 43760 \| 6370 ppm/ºC
Sensor Jacket Material \| Cable Ratings	Low Smoke PVC \| CL2P or CMP Plenum Rated Cable
Self-Heating \| Maximum Operating Current	0.3ºC/mW (Still Air) \| 5 mA

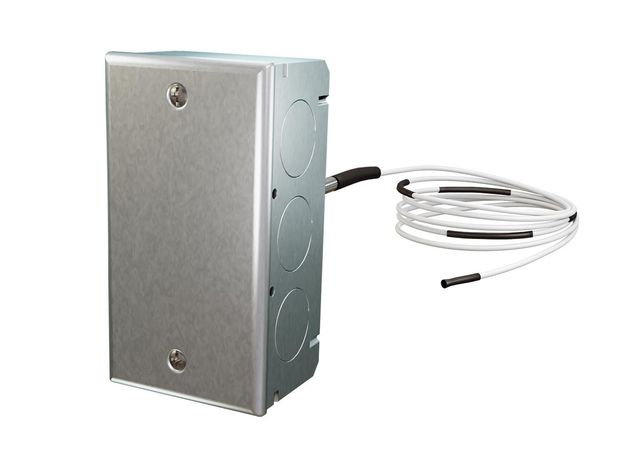

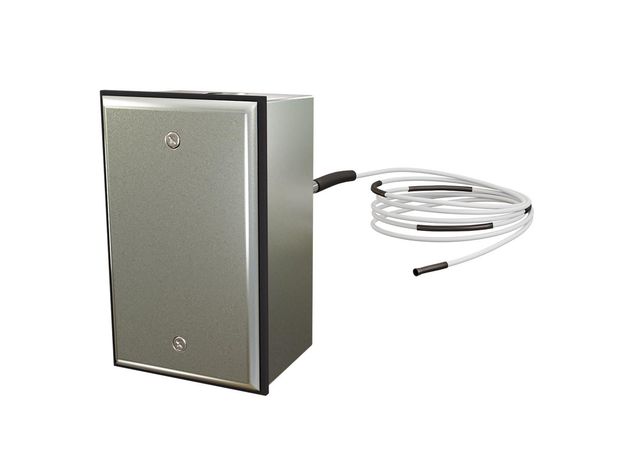

Enclosure Specifications (Material, Flammability, Temperature, NEMA/IP Rating)	“-GD” Enclosure: Galvanized Steel; NEMA 1 (IP10); “-PB” Enclosure: ABS Plastic, UL94-HB; Plenum Rated “-BB” Enclosure: Aluminum; NEMA 3R (IP 14) “-4X” Enclosure: Polystyrene Plastic; UL94-V2; NEMA 4X (IP 66)
