ACI EFP2FS

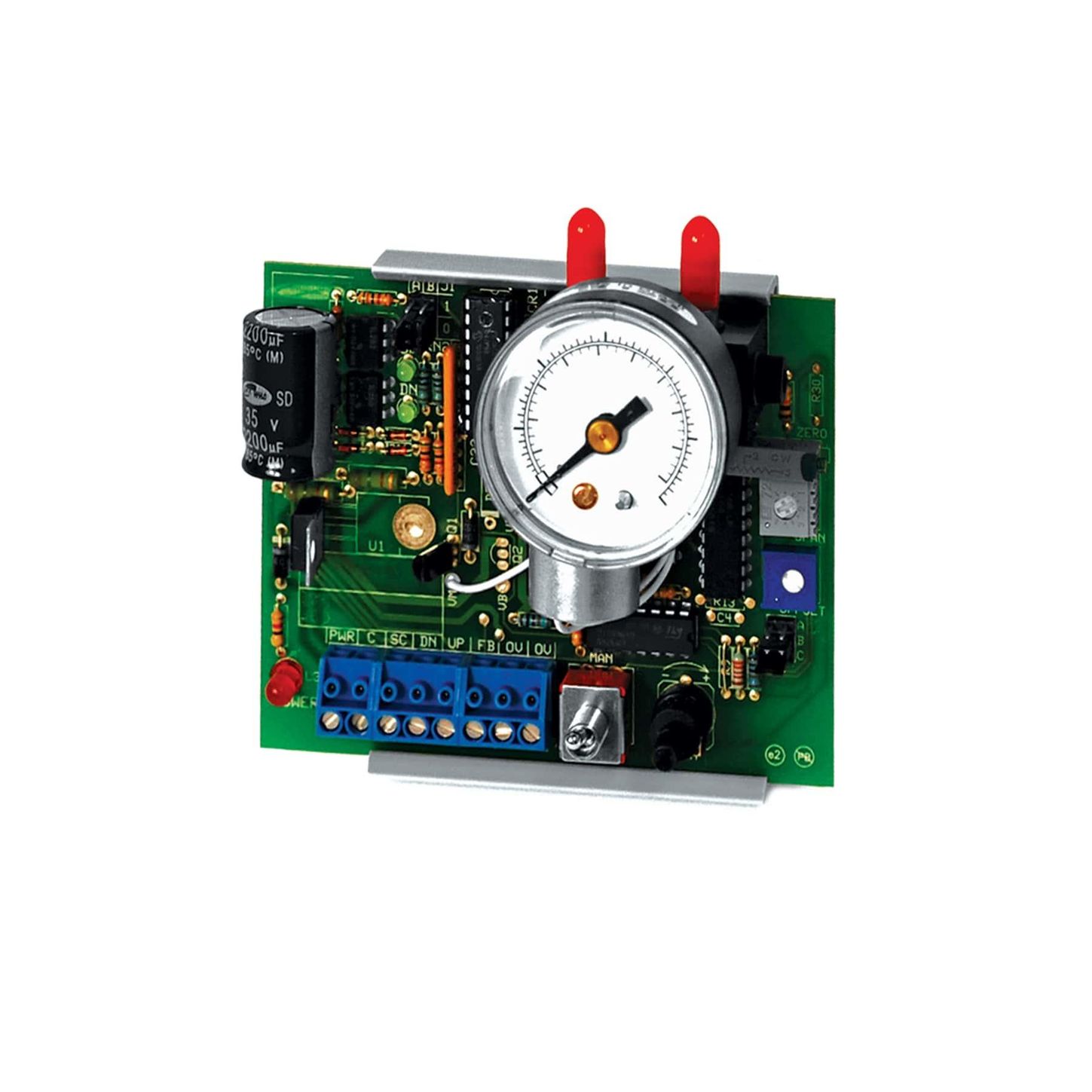

Name: ACI EFP2FS
Brand: ACI
SKU: CS2981543
Availability: OutOfStock

SKU: CS2981543MPN: EFP2FSAlternate Part #: 106324UPC/EAN: 78502881388

Floating Point Input (45 sec), Pressure Output (0-15PSI), Dual Valve, Exhausts on Power Failure, (90, 60, 120 sec), (0-15PSI, 0-20PSI)

Product Details

Floating Point Input (45 sec), Pressure Output (0-15PSI), Dual Valve, Exhausts on Power Failure, (90, 60, 120 sec), (0-15PSI, 0-20PSI)

Product Configuration

Gauge	No Gauge
Valves	2 Valve
Failsafe	With failsafe

Product Family Specifications

Air Flow	Supply valves @ 20 psig (138 kPa) main/15 psig (103 kPa) out, 2300 scim Branch Line requires 2 in3 or 33.78 cm3 (minimum) \| Min. 25 ft of ¼” O.D. poly branch tubing
Filtering	Furnished with integral-in-barb 80-100 micron filter (Part # PN004) Optional standard barb (PN002) with external 5 micron in-line filter (PN021)
Product Weight	EFPG: 0.596 lbs. (0.2703 Kg) \| EFP2G: 0.76 lbs. (0.3459 Kg) \| EFP2GF: 0.70 lbs. (0.3175 Kg)
Supply Current	EFP: 300mAAC, 200mADC Maximum \| EFP2: 350mAAC, 200mADC \| EFP2FS: 500mAAC, 200mADC
Supply Voltage	24 VAC (+/-10%), 50 or 60Hz, 24 VDC (+10%/- 5%)
Agency Approvals	RoHS2, WEEE
Pneumatic Fitting	Removeable brass fittings for Main \& Branch in machined manifold, Plugged ⅛-27-FNPT gauge port
Product Dimensions	No Gauge: (L) 4.00” (W) 3.25” (H) 1.87” (101.60 x 82.55 x 47.50 mm) With Gauge: (L) 4.00” (W) 3.25” (H) 2.95” (101.60 x 82.55 x 74.97 mm)
Snaptrack Material	Polyvinyl Chloride (PVC)
Air Supply Pressure	Maximum 25 psig (172.369 kPa), minimum 22 psig (151.69 kPa)
Air Supply Consumption	2300 SCIM (37.69 liters)
Connections \| Wire Size	90° Pluggable Screw Terminal Blocks \| 16 (1.31 mm2) to 26 AWG (0.129 mm2)
Operating Humidity Range	10 to 95% non-condensing
Output Pressure Accuracy	2% full scale at room temperature (above 1 psig or 6.895 kPa) 3% full scale across operating temperature range (above 1 psig)
Storage Temperature Range	-20 to 150°F (-28.9 to 65.5°C)
Digital Input Signal Source	Relay Contact Closure, Transistor or Triac
Operating Temperature Range	35 to 120°F (1.7 to 48.9°C)
Feedback Output Signal Range	0-5 VDC \= Output Span
Terminal Block Torque Rating	0.5 Nm (Minimum); 0.6 Nm (Maximum)
Digital Input Rates of Change	See Ordering Grid
Manual / Auto Override Switch	MAN function \= output can be varied \| AUTO function \= output is controlled from input signal
Snaptrack Flammability Rating	UL94 V-0
Gauge Pressure Range (Gauge Models)	0-30 psig (0-200 kPa)
Gauge Pressure Accuracy (Gauge Models)	± 2.5% Midscale (± 3.5% Full Scale)
Manual / Auto Override Feedback Output	24 VDC/VAC @ 1A maximum, N.O. in AUTO operation (Optional: N.O. in MAN operation)
Connections \| Pneumatic Tubing Size-Type	¼” O.D. nominal (⅛” I.D.) polyethylene
Digital Input Signal Level (@ Impendence)	9-24 VAC/VDC @ 750Ω
Output Pressure Range (Jumper Selectable)	0-10 psig (0-68.95 kPa), 0-15 psig (0-103.43 kPa) or 0-20 psig (137.9 kPa)
