ACI A/BALCO-SBS
SKU: CS6286204MPN: A/BALCO-SBSAlternate Part #: 121860

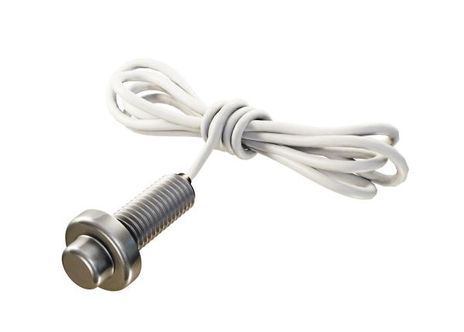

1,000 Ohm Balco RTD, Flush Mount Button, Stainless Steel
$68.04
UnitAvailable on backorder
Product Details
1,000 Ohm Balco RTD, Flush Mount Button, Stainless Steel
Product Configuration
| Enclosure | Stainless Steel |
|---|
Product Family Specifications
| Stability | +/- 0.05% after 1000 Hours @ 150ºC (302ºF) |
|---|---|
| Sensor Type | Balco RTD |
| Number Wires | Two (Non-Polarity Sensitive) |
| Sensor Curve | PTC (Positive Temperature Coecient) |
| Product Weight | A/BALCO-PBS: 0.04 lbs. (18.15g) A/BALCO-BBS \& A/BALCO-SBS: 0.10 lbs. (45.36g) |
| Sensor Accuracy | 70ºF (21ºC): +/- 1% |
| Agency Approvals | CE, RoHS2, WEEE |
| Lead Wire Colors | Orange/Yellow |
| Conductor Material | Silver Plated Copper |
| Enclosure Material | A/BALCO-BBS: Brass A/BALCO-SBS: 304 Stainless Steel A/BALCO-PBS: ABS |

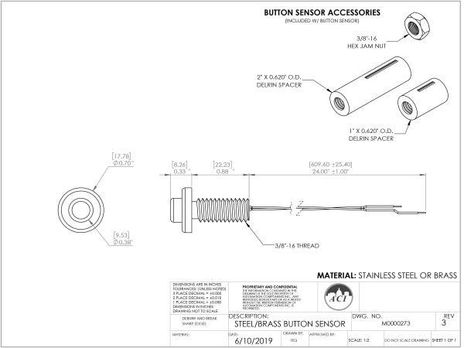

| Product Dimensions | A/BALCO-PBS: 1.00” (25.4mm) x 0.750” (19mm) A/BALCO-BBS and A/BALCO-SBS: 1.20” (30.48mm) x 0.700” (17.78mm) |
| Number Sensing Points | One |
| Temperature Coefficient | 4618 ppm/ºC (0-100ºC) |
| Operating Humidity Range | 10 to 95% RH, non-condensing |
| Maximum Operating Current | 5 mA |
| Storage Temperature Range | A/BALCO-PBS: -40 to 85ºC (-40 to 185ºF) A/BALCO-BBS \& A/BALCO-SBS: -40 to 85ºC (-40 to 185ºF) |
| Operating Temperature Range | A/BALCO-PBS: -40 to 70ºC (-40 to 158ºF) A/BALCO-BBS \& A/BALCO-SBS: -40 to 121ºC (-40 to 250ºF) |
| Lead Length | Conductor Size | 24” (61cm) | 22 AWG (0.65mm) |
| Response Time (63% Step Change) | 8 Seconds nominal |
| Sensor Output @ 21.1ºC (70ºF) | 1000 Ohms nominal |
| Lead Wire Insulation | Wire Rating | Etched Teflon (PTFE) Colored Leads | Mil Spec 16878/4 Type E) |
| Fitting Material | Flammability Rating | PBS - Plastic Button | UL94-HB |
Specifications
| SKU | CS6286204 |
|---|---|
| MPN | A/BALCO-SBS |
| Alternate Part # | 121860 |
