All ProductsACI

ACI A/100-2W-SBS

SKU: CS6285811MPN: A/100-2W-SBSAlternate Part #: 119980

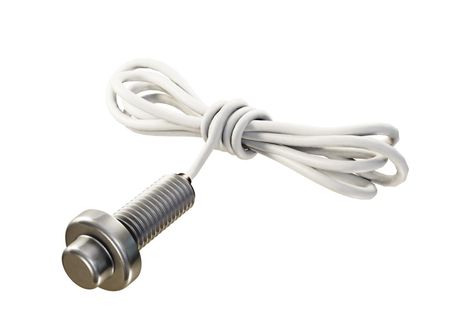

100 Ohm (Two Wires) RTD, Flush Mount Button, Stainless Steel

ACI A/1.8K-SBS, A/100-2W-SBS, A/100-3W-SBS, A/100KS-SBS, A/10K-E1-SBS, A/10KS-SBS, A/1K-2W-SBS, A/1K-3W-SBS, A/1K-NI-SBS, A/20K-SBS, A/3K-SBS, A/50K-SBS, A/AN-BC-SBS, A/AN-SBS, A/CP-SBS
Contact us for pricing and availability

Product Details

100 Ohm (Two Wires) RTD, Flush Mount Button, Stainless Steel

Product Configuration

Sensor 100-2W (100 Ω, 2 wires)
Enclosure Stainless Steel

Product Family Specifications

Stability +/- 0.03% after 1000 Hours @ 300ºC (572ºF)
Number Wires A/100-2W-XXX and A/1K-2W-XXX: Two (Non-Polarity Sensitive) A/100-3W-XXX and A/1K-3W-XXX: Three (Polarity Sensitive)
Product Weight A/100/1K-PBS: 0.06 lbs. (27.72g) | A/100/1K-BBS \& A/100/1K-SBS: 0.12 lbs. (54.44g)
Sensor Accuracy +/- 0.06% Class A (Tolerance Formula: +/- ºC \= (0.15ºC + (0.002 * |t|)) where |t| is the absolute value of Temperature above or below 0ºC in ºC) -40ºC (-40ºF): +/- 0.23ºC (+/- 0.414ºF) | 0ºC (32ºF): +/- 0.15ºC (+/- 0.27ºF) 70ºC (158ºF): +/- 0.29ºC (+/- 0.53ºF) | 200ºC (392ºF): +/- 0.55ºC (+/- 0.99ºF)
Agency Approvals CE, RoHS2, WEEE
Conductor Material Silver Plated Copper
Enclosure Material A/100/1K-BBS: Brass | A/100/1K-SBS: 304 Stainless Steel | A/100/1K-PBS: ABS Plastic
Product Dimensions A/100/1K-PBS: 1.00” (25.4mm) x 0.750” (19mm) A/100/1K-BBS and A/100/1K-SBS: 1.20” (30.48mm) x 0.700” (17.78mm)
Number Sensing Points One
Operating Humidity Range 10 to 95% RH, non-condensing
Sensor Type | Sensor Curve Platinum RTD | PTC (Positive Temperature Coefficient)
Operating Temperature Range A/100/1K-PBS: -40 to 70ºC (-40 to 158ºF | -40 to 85ºC (-40 to 185ºF) A/100/1K-BBS \& A/100/1K-SBS: -40 to 200ºC (-40 to 392ºF) | -40 to 85ºC (-40 to 185ºF)
Lead Length | Conductor Size 24” (61cm) | 22 AWG (0.65mm)
Sensor Output @ 0ºC (32ºF) A/100-xW-XXX: 100 Ohms nominal | A/1K-xW-XXX: 1000 Ohms nominal
Response Time (63% Step Change) 8 Seconds nominal
Lead Wire Insulation | Wire Rating Etched Teflon (PTFE) Colored Leads | Mil Spec 16878/4 Type E)
Din Standard | Temperature Coeffcient DIN EN 60751 (IEC 751) | 3850 ppm / ºC
Self-Heating | Maximum Operating Current 100 Ohm RTD: 7 mW/ºC (Still Air) | 5 mA | 1K Ohm RTD: 4mW/ºC (Still Air) | 3 mA

Specifications

SKUCS6285811
MPNA/100-2W-SBS
Alternate Part #119980
